Guest Posted February 15, 2017 Share Posted February 15, 2017 (edited) A Mate of mine wanted a power supply for a shed stereo, so I built him this. 1000w (3.5Kva surge) continuous at 230vac, Guaranteed not to make noise Edited February 15, 2017 by Guest Link to comment Share on other sites More sharing options...
Guest Posted February 15, 2017 Share Posted February 15, 2017 23 minutes ago, Eddierukiddingvarese said: Hear Hear, now who here has got the best bit of HI Fi kit in a shed.................. There are a few contenders @Darren69 has a nice shed system Mine has 6 x 18's and an old pair of horns, loud and nasty Link to comment Share on other sites More sharing options...
koputai Posted February 15, 2017 Share Posted February 15, 2017 5 minutes ago, 125dBmonster said: There are a few contenders @Darren69 has a nice shed system Umm, can you define 'shed'? Does it have to be tin, or can it be a workshop under your house? 2 Link to comment Share on other sites More sharing options...
Guest Posted February 15, 2017 Share Posted February 15, 2017 Just now, koputai said: Umm, can you define 'shed'? Does it have to be tin, or can it be a workshop under your house? Converted workshop would suffice, what about a shipping container ? tin ? Link to comment Share on other sites More sharing options...
Eddierukiddingvarese Posted February 15, 2017 Share Posted February 15, 2017 Yep, I think all these are included in the broader definition of shed- some where the wife does not go SWWDNG 1 Link to comment Share on other sites More sharing options...
shaky Posted February 15, 2017 Share Posted February 15, 2017 On 14/02/2017 at 4:28 PM, Upfront said: ...... The shed is not the place for hifi! ..... Surely you jest Mr Horns. 1 Link to comment Share on other sites More sharing options...
Upfront Posted February 15, 2017 Share Posted February 15, 2017 Surely you jest Mr Horns. Well its definitely to place to listen to hifi. Storage on the other hand, is generally a different story. On the plus side, it leads to retsoration projects like this one! Link to comment Share on other sites More sharing options...

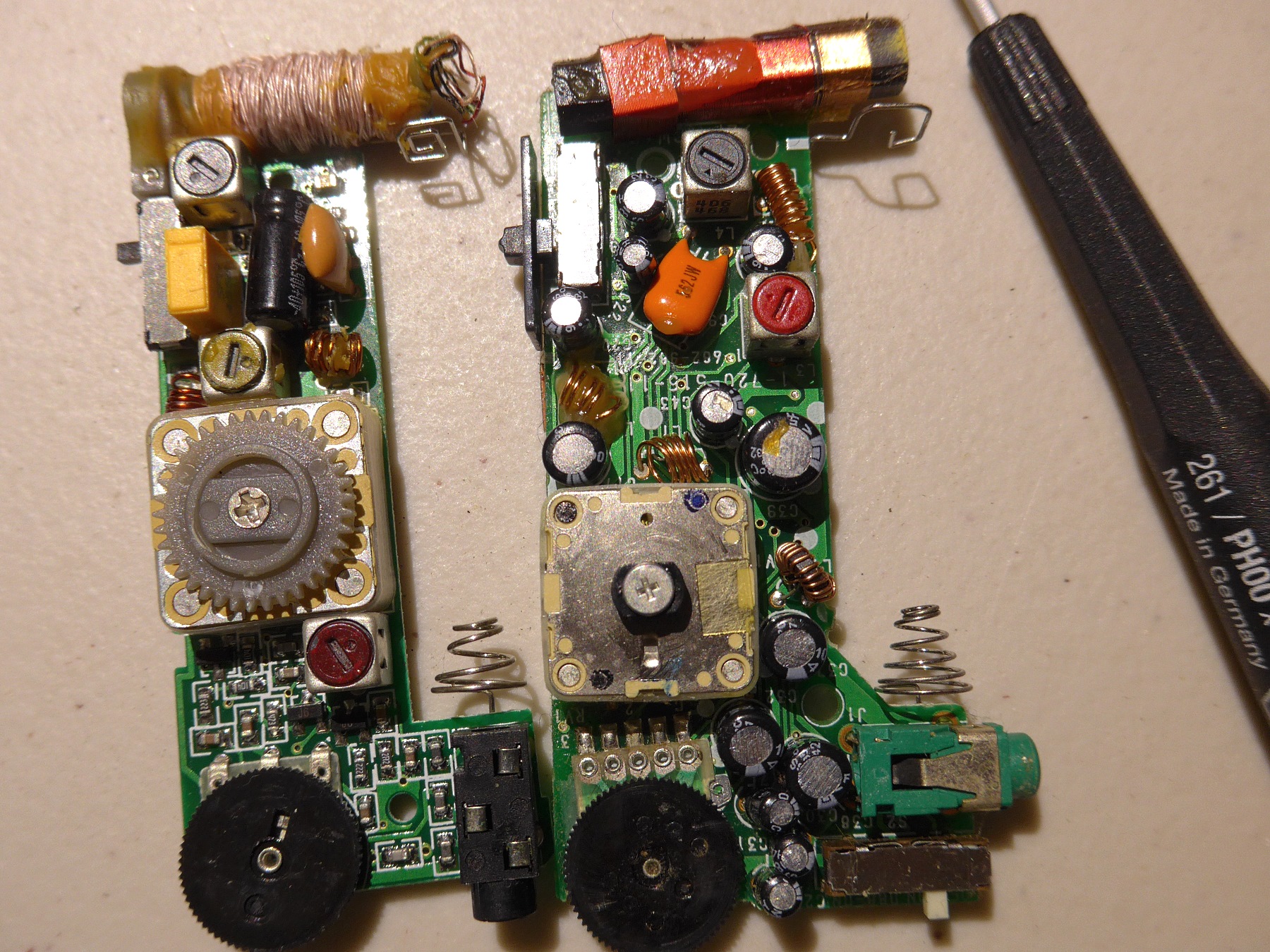

Stevesie Posted February 17, 2017 Share Posted February 17, 2017 (edited) Radio surgery time. Sony make great sounding radios, but their tuning caps are junk. Swapping one from a $6 eBay clone to get a few more years out of it. Edited February 17, 2017 by Stevesie 1 Link to comment Share on other sites More sharing options...
betocool Posted February 17, 2017 Share Posted February 17, 2017 Ehhhh.... which on is which? Link to comment Share on other sites More sharing options...
Stevesie Posted February 17, 2017 Share Posted February 17, 2017 1 hour ago, betocool said: Ehhhh.... which on is which? Sony on the right. The winding of the antenna on the cheapy is a bit rough. Link to comment Share on other sites More sharing options...
mwhouston Posted February 24, 2017 Share Posted February 24, 2017 This was the original 6L6 tube amp in a wine gift box. From this I built the far more improved model in the stained wine box. Listening to it now and love it. I had another crack at the original but with 12AU7 and JJ blue glass KT88s. Sounds excellent and dead quiet but I'm not happy with the PS. So tomorrow, once more, I'll alter the PS to the one I know works. It can us the tranni box or the second one (Silver Supreme). I have some black metal 6L6s which I'll drop in. For now here are some images with the KT88s. 2 Link to comment Share on other sites More sharing options...
davewantsmoore Posted February 24, 2017 Share Posted February 24, 2017 I made a holder for all my white triangles .... still room to grow the collection. 3 Link to comment Share on other sites More sharing options...
Upfront Posted February 24, 2017 Share Posted February 24, 2017 I made a holder for all my white triangles .... still room to grow the collection. Thats a lot of triangles! A very pretty collection. So does is work?? Link to comment Share on other sites More sharing options...
Guest Posted February 24, 2017 Share Posted February 24, 2017 (edited) 1 hour ago, davewantsmoore said: I made a holder for all my white triangles .... still room to grow the collection. Dave, rumour tells me you have a truck load of XLR bats and this is all "ya got Mate" Go right across that back wall with the triangles 3 or 4 are better than 1 edit sorry, was excited about the bats, nice job Edited February 24, 2017 by Guest Link to comment Share on other sites More sharing options...

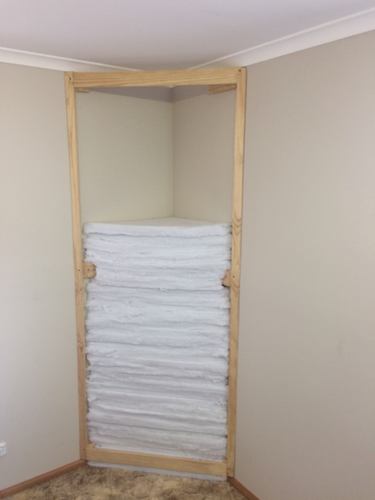

davewantsmoore Posted February 24, 2017 Share Posted February 24, 2017 35 minutes ago, 125dBmonster said: this is all "ya got Mate" So far, I have what is in the photo (90w 45d, 2.3h) .... on the front wall I have a projector screen (acoustic transparent) which disguises a ~ 2.4x1.2 absorber, which is 150mm thick. When I get my finger out.... The ceiling is going to get ~4m x 5m, 300mm deep. Front speakers are going to be built into corner traps. Sidewalls, yet to be determined. Most of it (except the screen and speakers, of course) will have some sort of diffusion / reflection over it.... will require some experimentation. I did the obligatory "bring the entire stash inside, and chuck it anywhere" test .... and the result was quite dramatic for the LF. Link to comment Share on other sites More sharing options...
davewantsmoore Posted February 24, 2017 Share Posted February 24, 2017 Just now, davewantsmoore said: ~4m x 5m, 300mm deep. aka. lots. Link to comment Share on other sites More sharing options...
Guest Posted February 24, 2017 Share Posted February 24, 2017 1 hour ago, davewantsmoore said: aka. lots. don't forget to buy a roll of heavy vinyl to cut up and hang about .. Link to comment Share on other sites More sharing options...
shaky Posted February 24, 2017 Share Posted February 24, 2017 (edited) Im off to bunnings!!! Or are those bargains only to be had at selected stores in Tasmania. Might be worth the swim. Edited February 24, 2017 by shaky Link to comment Share on other sites More sharing options...
NADMAD Posted February 24, 2017 Share Posted February 24, 2017 My ALDI router table was too small, too inaccurate, and also wouldn't accommodate the 19mm radius bit I needed to round the edges of my ESL panel frames, so I built one using the legs and switch from the ALDI one, a sheet of laminated MDF and a Bakelite router table insert, with a bit of 2x4 acting as a fence! It's temporarily clamped in place but will eventually be on runners. At the heart of it is a 1980s 2hp Makita router. You really know you're alive when you're feeding work into a 45mm razor sharp propeller travelling at 24,000rpm [emoji23]Sent from my iPhone using Tapatalk 3 Link to comment Share on other sites More sharing options...
Upfront Posted February 24, 2017 Share Posted February 24, 2017 My ALDI router table was too small, too inaccurate, and also wouldn't accommodate the 19mm radius bit I needed to round the edges of my ESL panel frames, so I built one using the legs and switch from the ALDI one, a sheet of laminated MDF and a Bakelite router table insert, with a bit of 2x4 acting as a fence! It's temporarily clamped in place but will eventually be on runners. At the heart of it is a 1980s 2hp Makita router. You really know you're alive when you're feeding work into a 45mm razor sharp propeller travelling at 24,000rpm [emoji23]Sent from my iPhone using Tapatalk Nice work there mate. Any more photos of your creation? 1 Link to comment Share on other sites More sharing options...
NADMAD Posted February 24, 2017 Share Posted February 24, 2017 3 hours ago, Upfront said: Nice work there mate. Any more photos of your creation? Thanks very much. There's a whole thread on it - it's a bit long as the thread starts at the beginning of a long journey of discovery! This is the page with some recent photos. Link to comment Share on other sites More sharing options...

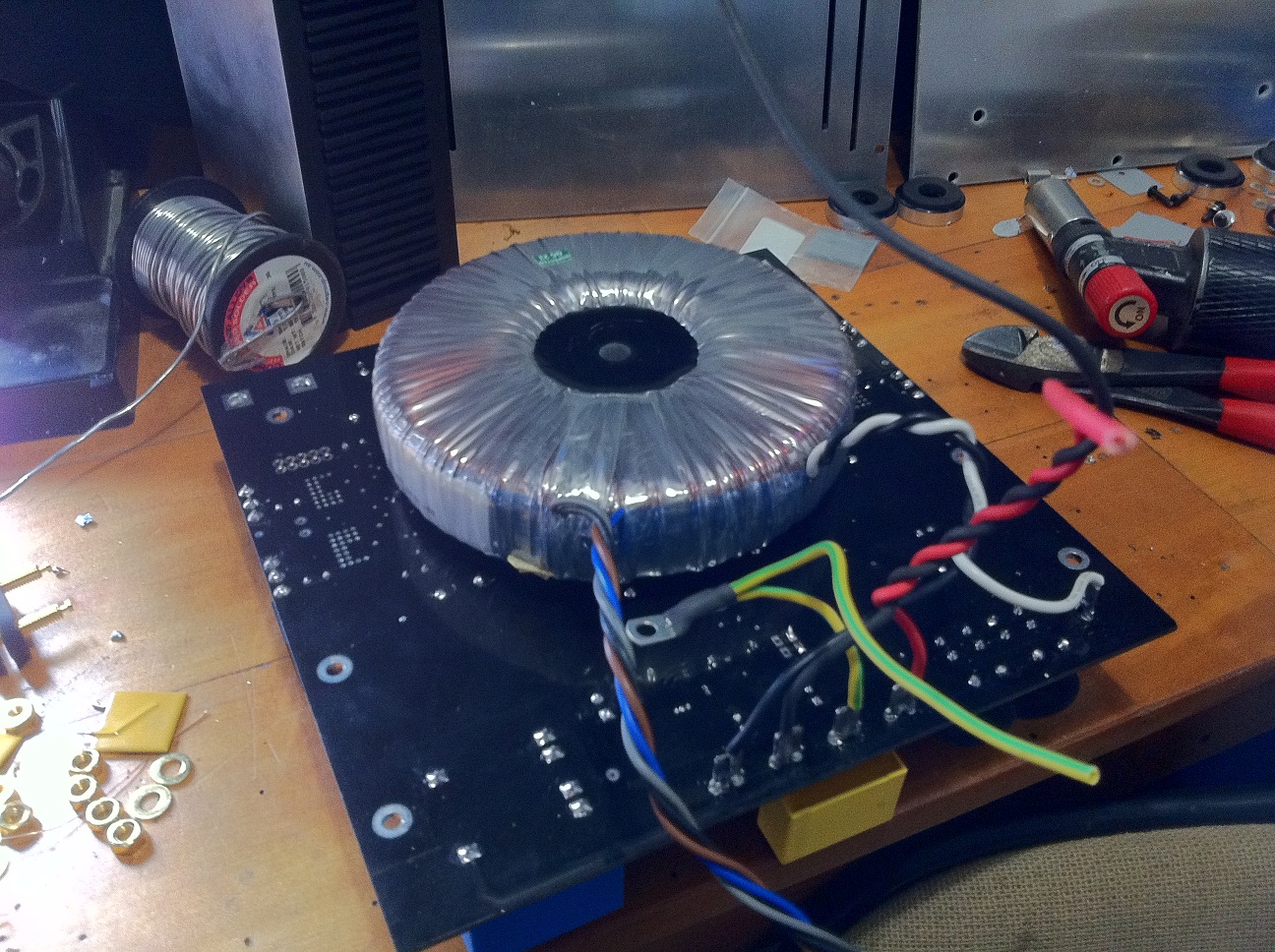

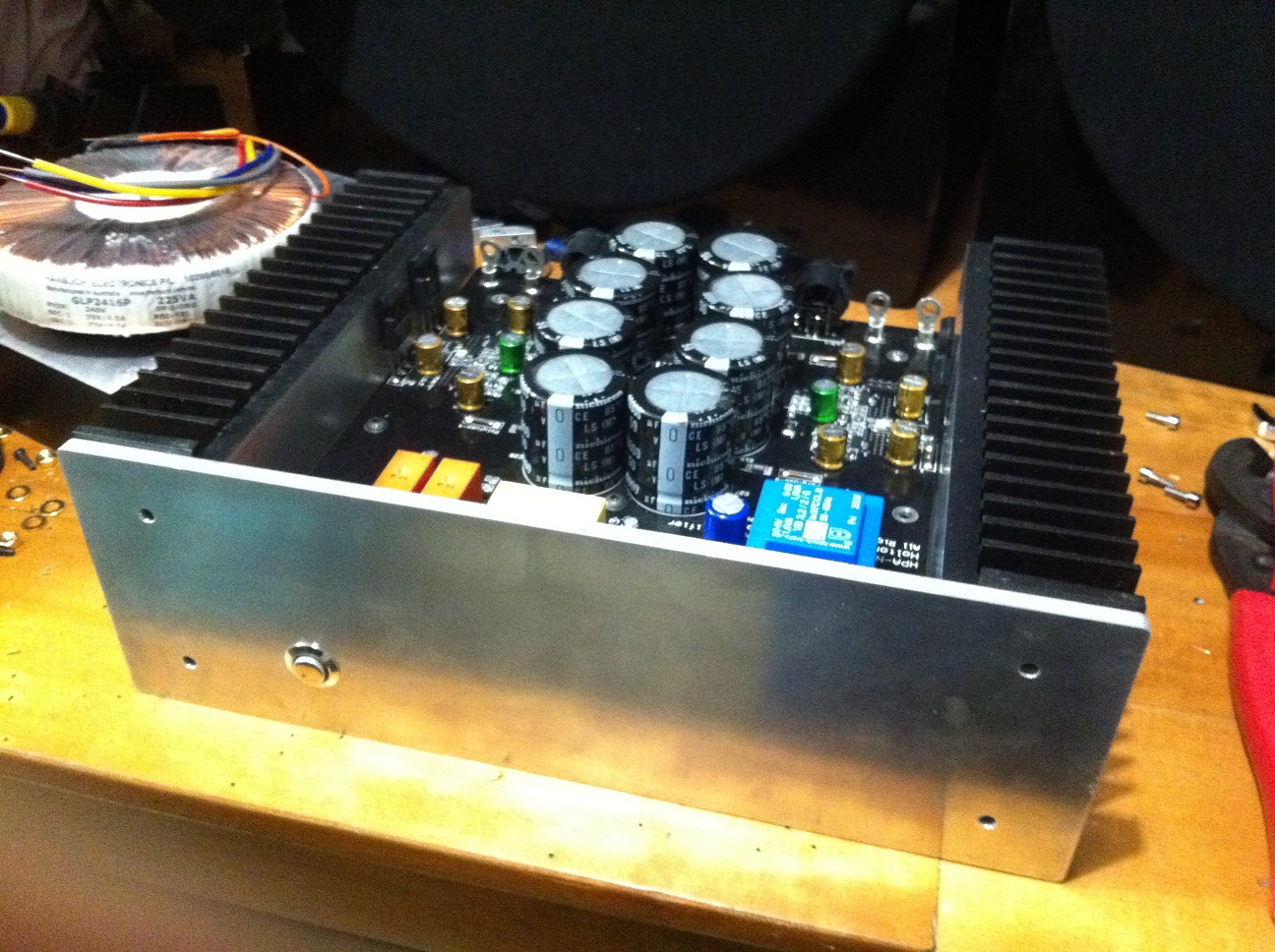

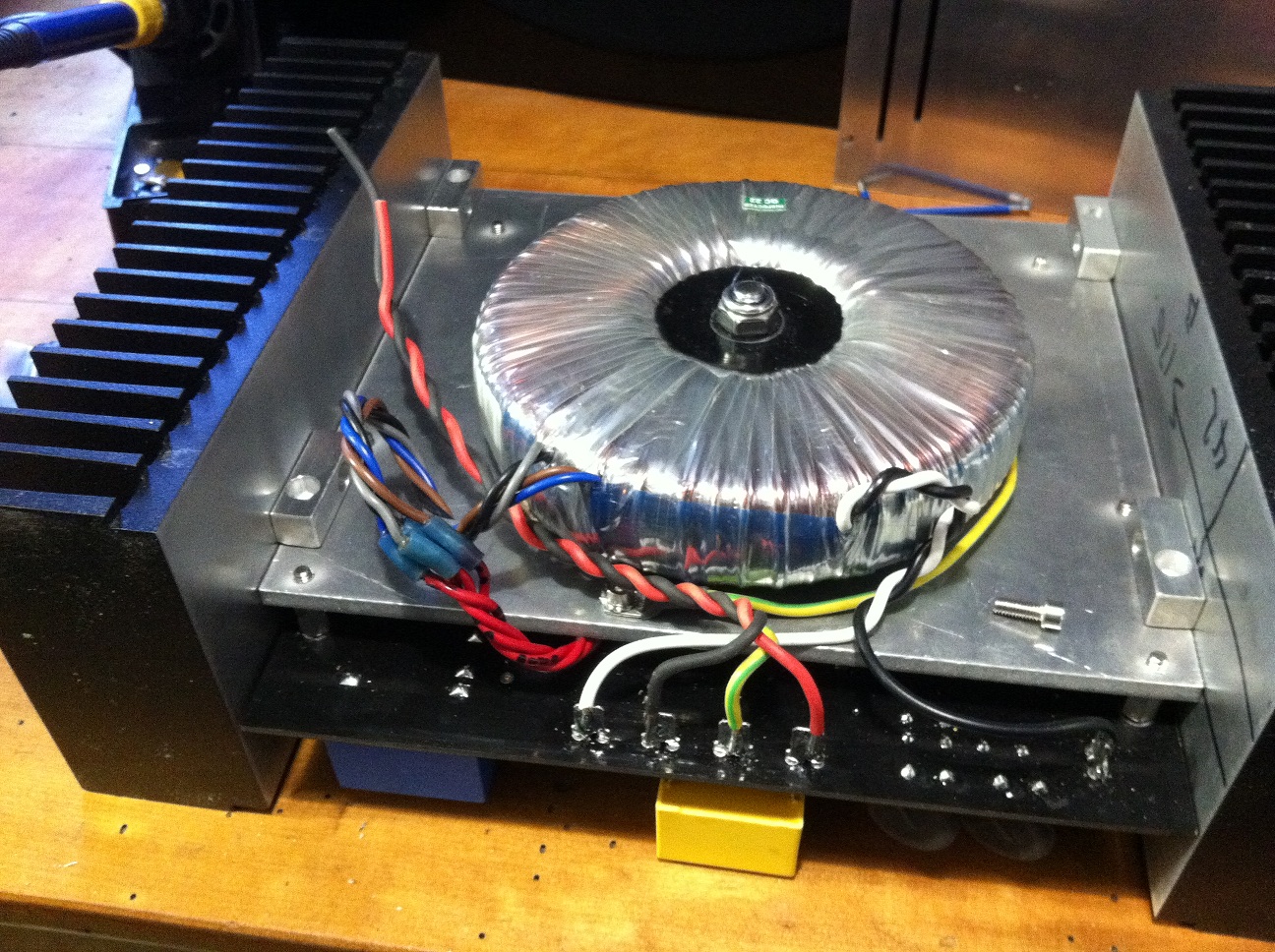

Guest Posted February 25, 2017 Share Posted February 25, 2017 Having a go putting this 50w x 2 mosfet stereo amp together over the weekend quite a few holes to mark drill and tap yet. Replaced some poly fuse devices on the module with copper wire bridges on advice as it has speaker protection via dc offset main power input relay Link to comment Share on other sites More sharing options...
Upfront Posted February 25, 2017 Share Posted February 25, 2017 Having a go putting this 50w x 2 mosfet stereo amp together over the weekend [emoji4] quite a few holes to mark drill and tap yet. Replaced some poly fuse devices on the module with copper wire bridges on advice as it has speaker protection via dc offset main power input relay If only I could afford 3 of these and a monster!!! Link to comment Share on other sites More sharing options...
Guest Posted February 25, 2017 Share Posted February 25, 2017 (edited) 9 hours ago, Upfront said: If only I could afford 3 of these and a monster!!! I'm doing 2 and I know of a couple of other modules ") make some thing to hold it together and get on with drilling the heat sinks there isn't much height in the case at 100mm outside Edited February 25, 2017 by Guest Link to comment Share on other sites More sharing options...
mwhouston Posted February 25, 2017 Share Posted February 25, 2017 (edited) New I'm happy. I have the whole PS issue sorted. Apart from simple tweak I'm happy with the whole. This one also runs from my universal tranni box. One set of two trannies wihich supply 12VAC and 250VAC. My stained box 6L6 uses the same tranni box. Saves about $100 a build. JJ KT88s and a Phillips 12AU7 make the tube compliment. HT is 320V and amd filament voltage is 12V. Bias is 22V on the 88. I have only had a quick listen for about 300mins and sounds really nice. Not sure it will top the 6L6 but nice to be able to amp roll using the same base PS. Edited February 25, 2017 by mwhouston 2 Link to comment Share on other sites More sharing options...
