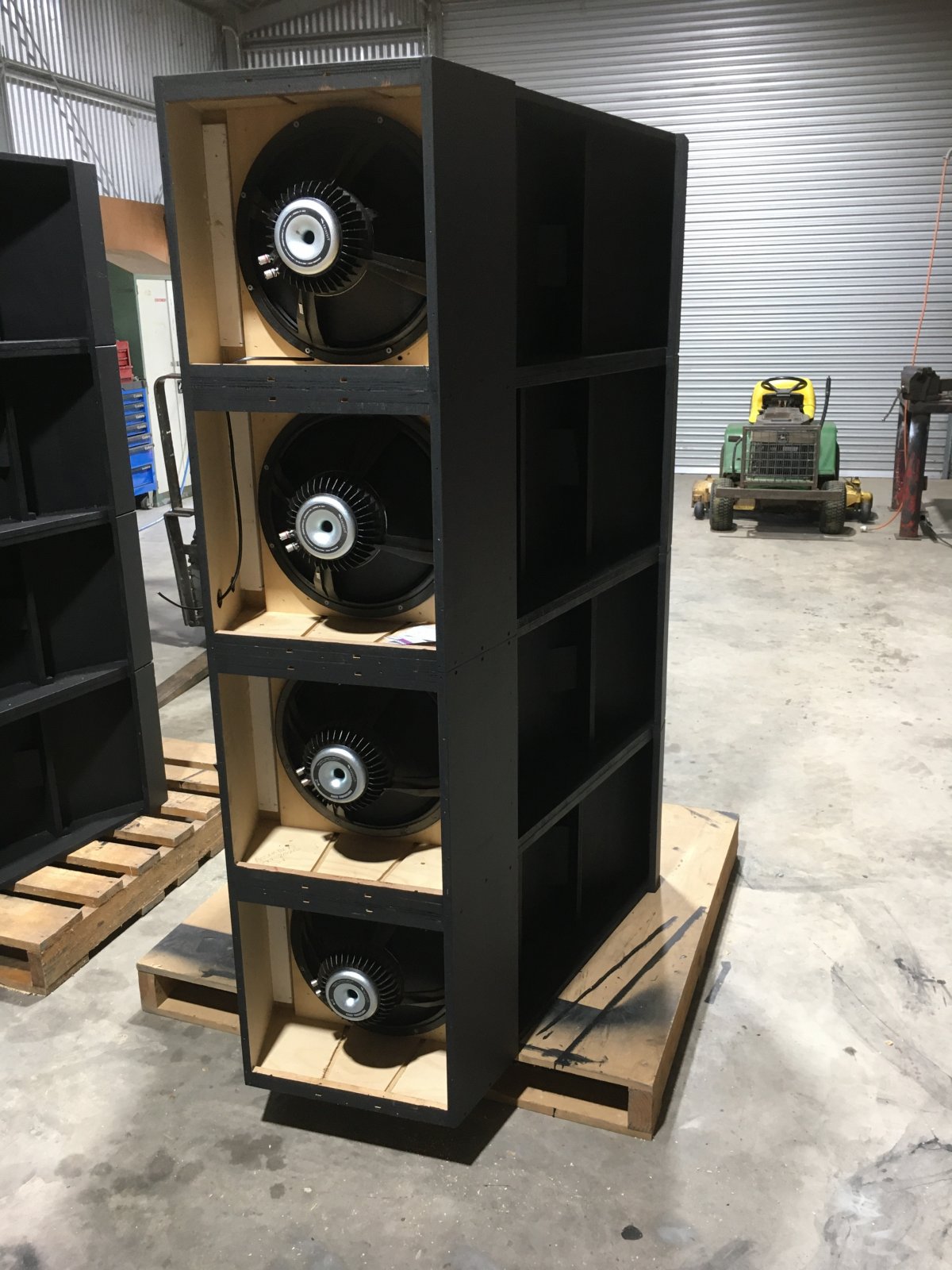

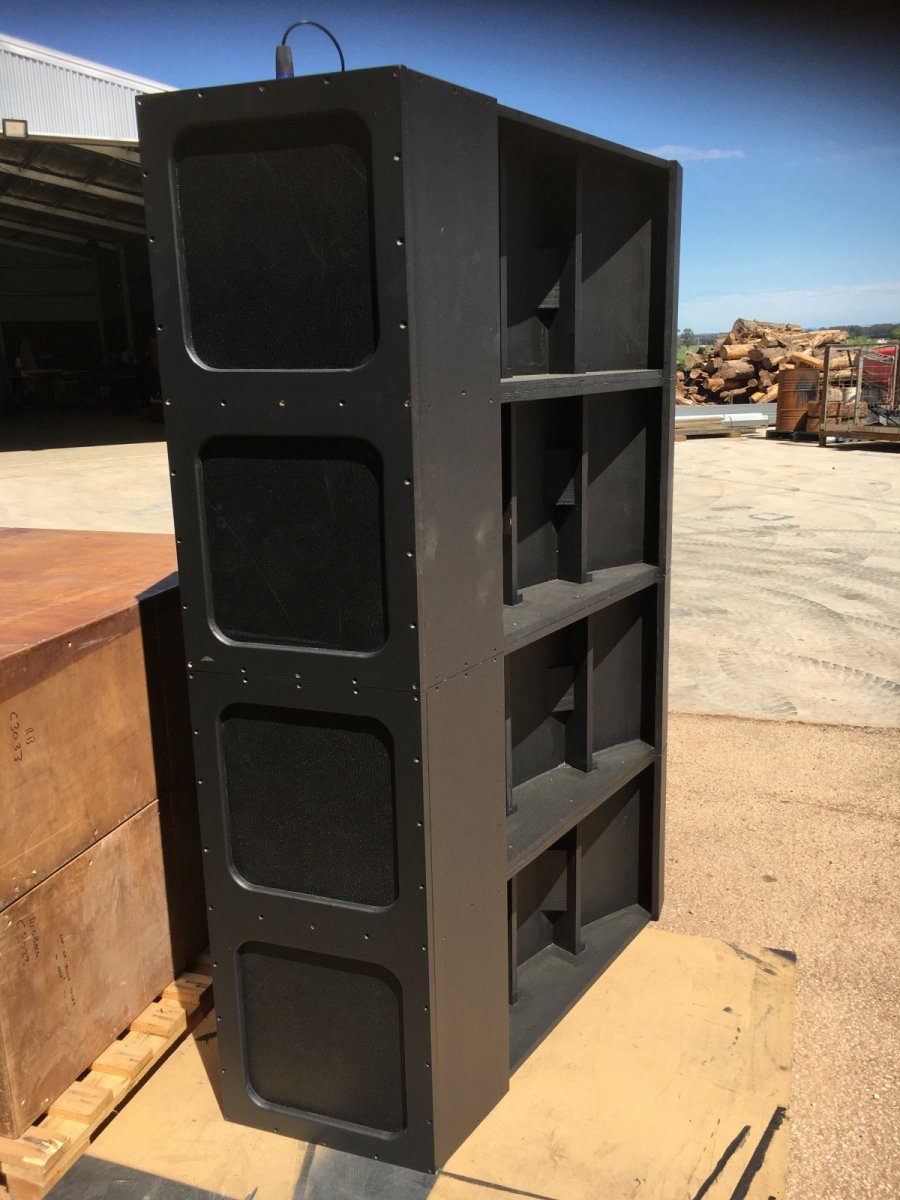

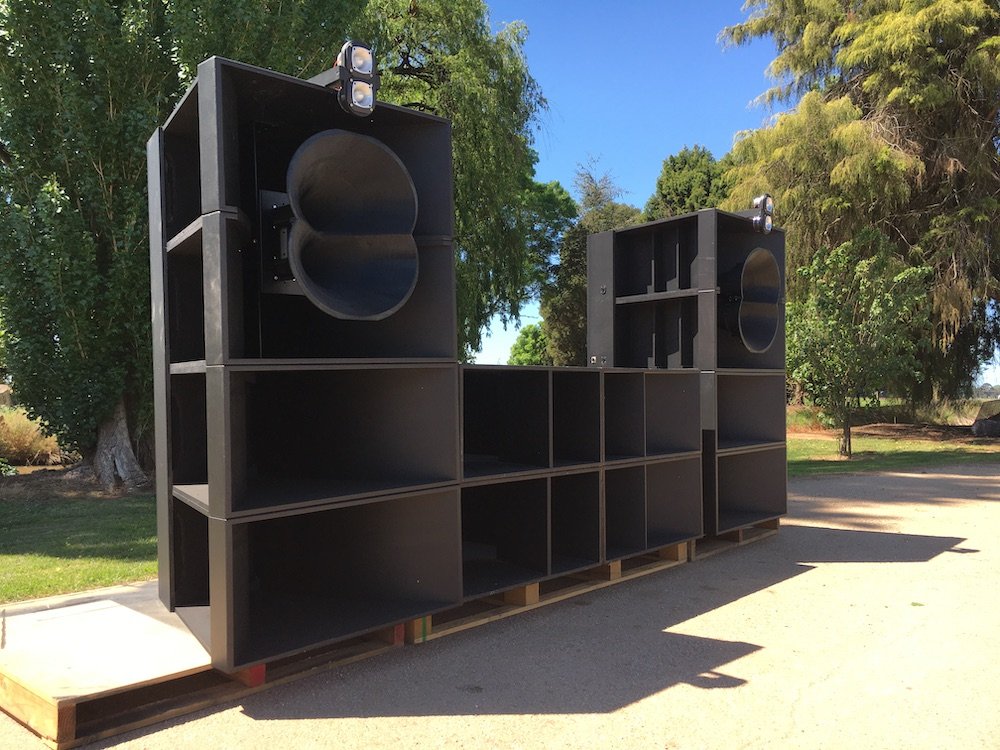

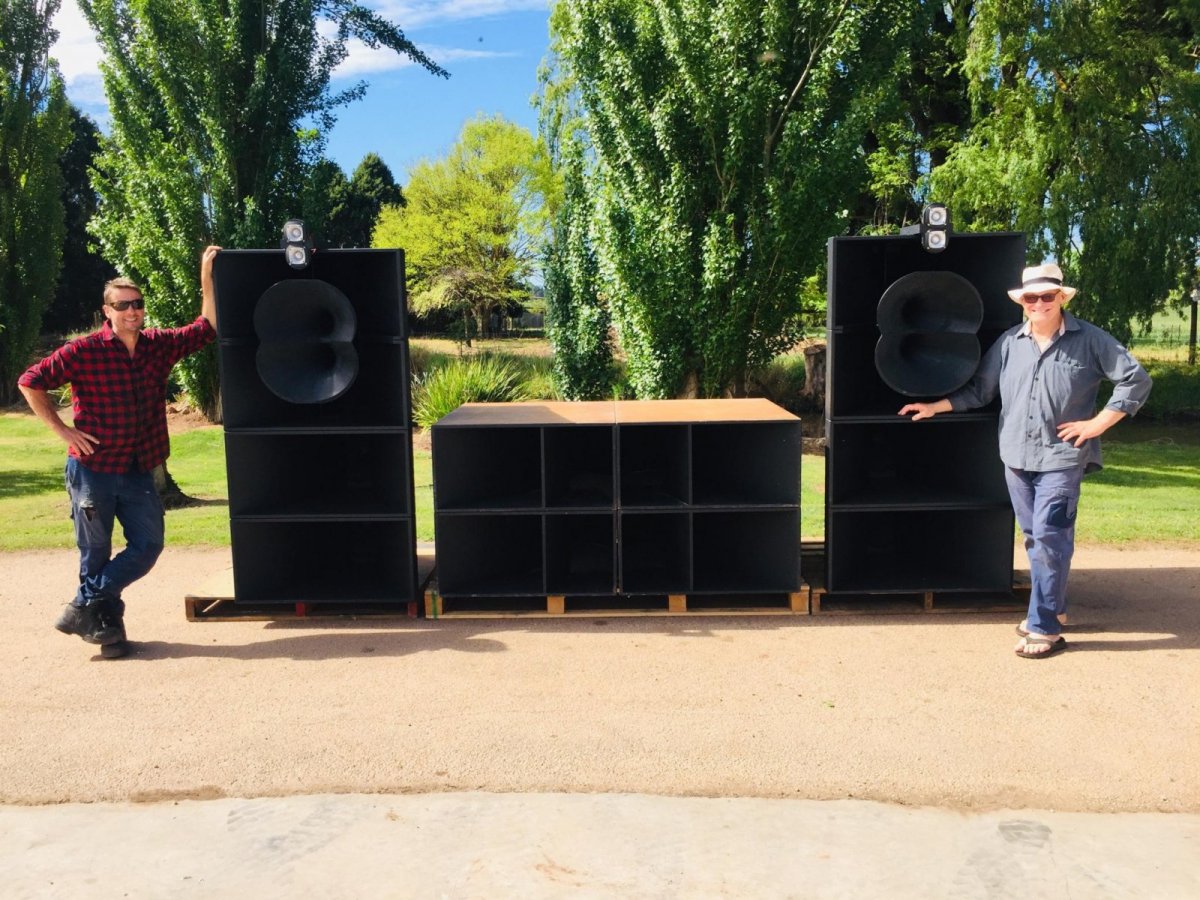

Los Posted October 12, 2020 Share Posted October 12, 2020 G'day all, Just thought I'd post this for anyone interested in live sound music reproduction. We have just finished building this system to go into our live music venue. ' The Bundy Hall' in Gippsland Victoria. Live at the Bundy runs regular music events and has a focus on the very best live sound. We wanted to update our previous LENARD inspired system that we built out of leftovers about 5 years ago. We asked John Burnett to design us his version of the ultimate in live systems and this is what he came up with. There is a youtube clip HERE if you want to see what it does in an outdoor environment. ( Use headphones for the full experience) A total of 16 x 15" drivers are used in the sub bass and mid bass. The sub bass drivers are in compound pairs inside the 4 folded horn bass units. 4 x 4" diaphragm 2" exit compression drivers & 4 x ring radiators make up the 4 active band pass components. Power comes from 8 channels per side running in bridge for the sub bass and mid sections. There is around 2kw available per side. The voice horns are 3D printed. Seems like madness for a small country hall sound system I know, but if you want a truely unlimited dynamic high fidelity sound in a live venue then this is how you do it! Many many thanks go to John Lenard Burnett who has probably forgotten more than any of us actually know about reproducing Music in a lifelike manner. He is a one of a kind! Now all we have to do is shake this Covid crap and get back to Live Music! Cheers Los 15 1 Link to comment Share on other sites More sharing options...
ray4410 Posted October 12, 2020 Share Posted October 12, 2020 awesome stuff,gonna have to move down to gippsland,to attend live gigs at the bundy hall. Link to comment Share on other sites More sharing options...
andyr Posted October 12, 2020 Share Posted October 12, 2020 WOW!! Andy Link to comment Share on other sites More sharing options...
