Primare Knob Posted May 14, 2018 Share Posted May 14, 2018 I am researching poly bats at the moment and I am being put of by the price for Polymax. Does anyone know what the gass flow resistance is for Autexx Greenstuff AAB ? It comes in different densities and is much more affordable. Looking at the posted video, the way to cut this seems to be with a heated knife. You can buy these of Ebay and seem to be designed to clean cut Polyester and Styrofoam. The guy in the video is using a solder iron. Link to comment Share on other sites More sharing options...
1224 Posted July 26, 2018 Share Posted July 26, 2018 http://www.autex.com.au/acoustics/quietspace-panel/ Thoughts? I like the idea of made to order size and fabric image/print. Link to comment Share on other sites More sharing options...
Gradenko Posted July 31, 2018 Share Posted July 31, 2018 (edited) I got a couple of packs of Martini Absorb HD 50 delivered yesterday. Looking at the data sheets, didn't much see the point in paying extra for XHD for little to no gain. My question is to do with cutting them. In a previous project, when they were called Tontine Acoustisorb, I used an angle grinder, but it was a pain to do straight cuts and need to flip them over. Thinking about using a 7 1/4" circular saw this time. That should just about reach 50mm when running on a 12mm guide. The remainder I can cut easily with scissors. The question is do I use my normal wood blade or use a diamond blade with flatter edges? Or I found the Insucut circular saw blade which is made for this stuff, but can't really stomach the AUD$240 price tag: https://kaindl.de/en/kaindl-insucutr-dammstoffmesser-kreismesser.html Edited July 31, 2018 by Gradenko Link to comment Share on other sites More sharing options...
davewantsmoore Posted July 31, 2018 Share Posted July 31, 2018 I cut a lot of HD 50, and I used a big sharp stanley knife on a hard surface. Scissors was v. difficult. I didn't try any spinning blades, but I'd be skeptical of snagging/wrapping. Link to comment Share on other sites More sharing options...
Ugly Posted July 31, 2018 Share Posted July 31, 2018 I used an angle grinder with diamond blade. It worked well with no tangles. I found it actually melted the polymax rather than cut. 1 Link to comment Share on other sites More sharing options...
musicmc Posted July 31, 2018 Share Posted July 31, 2018 Battery grinder thin cutting disk slice em like butter. 5'1/4 is best on a power grinder though. Do on flat surface with a wooden ruler 1 Link to comment Share on other sites More sharing options...
Ugly Posted July 31, 2018 Share Posted July 31, 2018 It did involve flipping the polymax to cut from the other side. I was using a small wheel. I reckon a bigger blade would be perfect Link to comment Share on other sites More sharing options...
musicmc Posted July 31, 2018 Share Posted July 31, 2018 5'1/4 cutting disc would do to 100mm if compressed a little with the ruler. Fine with 75mm. 1 Link to comment Share on other sites More sharing options...
ThirdDrawerDown Posted July 31, 2018 Share Posted July 31, 2018 I used an angle grinder with cutter blade in one hand and a length of 90x45 as a guide and to press down hard on it with my other hand. That stuff doesn't compress easily, and I really had to watch my other hand while using the cutter. Tip: two plastic bags. Put the lopped finger in one. Then put the tied-up bag with finger in the other bag that you fill with ice. Then go hospital. No this didn't happen to me, it was Plan B. Link to comment Share on other sites More sharing options...
Gradenko Posted July 31, 2018 Share Posted July 31, 2018 Yea, I think I'll persevere with a circular saw with a track guide instead of losing fingers on an angle grinder ;). Just need to know which blade to use. 1 Link to comment Share on other sites More sharing options...
bjc Posted August 1, 2018 Share Posted August 1, 2018 Depending on your circular saw size (185mm etc) you could buy cutting discs for grinders or a cheap tile saw blade. Buy a shim ring kit also as the centre fitting will probably be a different size. Even if it is unbalanced they generally do not detonate themselves unless you hit a hard surface to quick but even then they have a mesh fibre in the discs so it's not overly dangerous. 1 Link to comment Share on other sites More sharing options...
iversons13 Posted August 1, 2018 Share Posted August 1, 2018 I've read, though I'm yet to try it, that an electric heated knife does the trick. Works by melting through the fibres rather than cutting in the traditional sense. Link to comment Share on other sites More sharing options...
Gradenko Posted August 5, 2018 Share Posted August 5, 2018 (edited) So quick update, tried this insulation reciprocating saw blade on my Milwaukee M12 Hackzall: http://www.suttontools.com/products/specialty-reciprocating-blades-insulation-ultra-h534/ And it didn't do sh*t. Even with the piece clamped on one side and me holding the other, I still had to physically saw to get it to cut. Maybe with a reciprocating saw with more travel it would work. I then gave the circular saw a go with the wood blade. This worked, except the off cuts blocked up the guard and there was polyester flying everywhere. After that we looked at angle grinder blades for the circular saw, as bjc suggested. This would work great, except for my application I needed the sides smooth and not melted so the absorption qualities wouldn't change. Toolmart recommended a hand held insulation saw for $45. I wasn't keen but tried it anyway. By gosh, this thing is sweet. Weighs nothing and cuts through it like butter. Highly recommended for when you need clean edges that aren't glazed. Edited August 5, 2018 by Gradenko 3 Link to comment Share on other sites More sharing options...

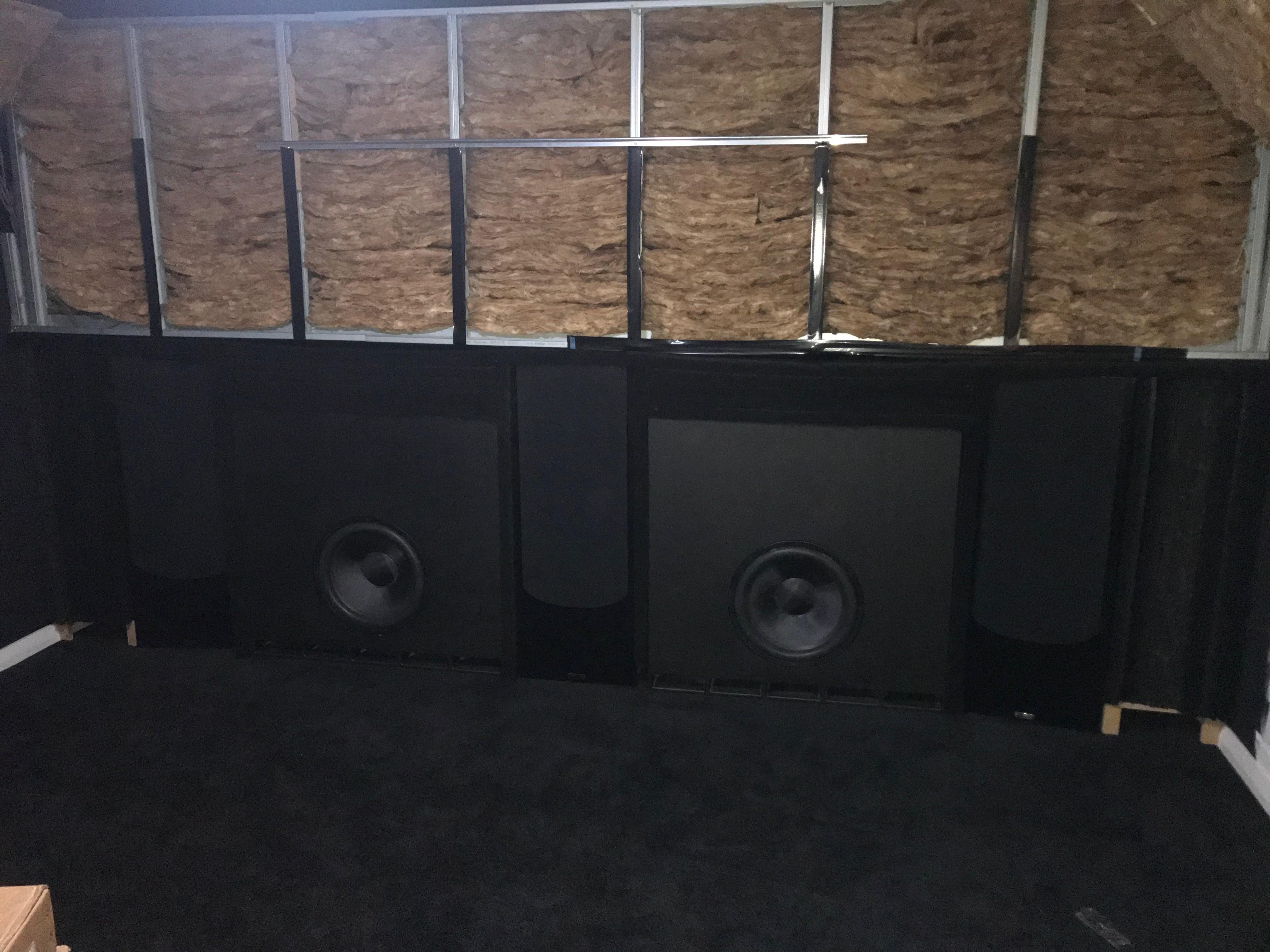

Gradenko Posted August 5, 2018 Share Posted August 5, 2018 And this is the finished product. I've filled in all the gaps between the speakers and themselves and the walls. This should solve my SBIR and 100Hz suck out issues. The insulation above the speakers is a bass trap which was there previously. 7 Link to comment Share on other sites More sharing options...
bjc Posted August 6, 2018 Share Posted August 6, 2018 Good stuff, it looks like a giant bread knife! I had a blunt hand saw that I hit with the bench grinder for fun one day which turned out to be stupidly sharp. I rounded the teeth then just put as fine an edge as possible on it. Used it for hacking the palm trees and pumpkins we get every year. I keep the machete under the bed though! Link to comment Share on other sites More sharing options...
jamiebosco Posted August 6, 2018 Share Posted August 6, 2018 (edited) On 6/08/2018 at 12:21 AM, Gradenko said: And this is the finished product. I've filled in all the gaps between the speakers and themselves and the walls. This should solve my SBIR and 100Hz suck out issues. The insulation above the speakers is a bass trap which was there previously. Agree with @bjc - very nicely done! Do you have a build/showcase thread on here? Any info on what speakers/subs are in the pic ? I put 2.4m x 1.2m x 20cm of black QuietStuff polyester insulation (Autex equivalent of Polymax) behind my speakers and subs to help with SBIR as well, worked very well Edited August 6, 2018 by jamiebosco Link to comment Share on other sites More sharing options...
Gradenko Posted August 7, 2018 Share Posted August 7, 2018 48 minutes ago, jamiebosco said: Do you have a build/showcase thread on here? Any info on what speakers/subs are in the pic ? Mains are Ascension C1503DAMTL (Adelaide Speakers high-power speakers). Sub drivers are Mach5 UXL-18's. No build thread for the room but have a build thread for the subs over here: https://www.avsforum.com/forum/155-diy-speakers-subs/2923958-grad-sub-ported-uxl-18-a.html Link to comment Share on other sites More sharing options...

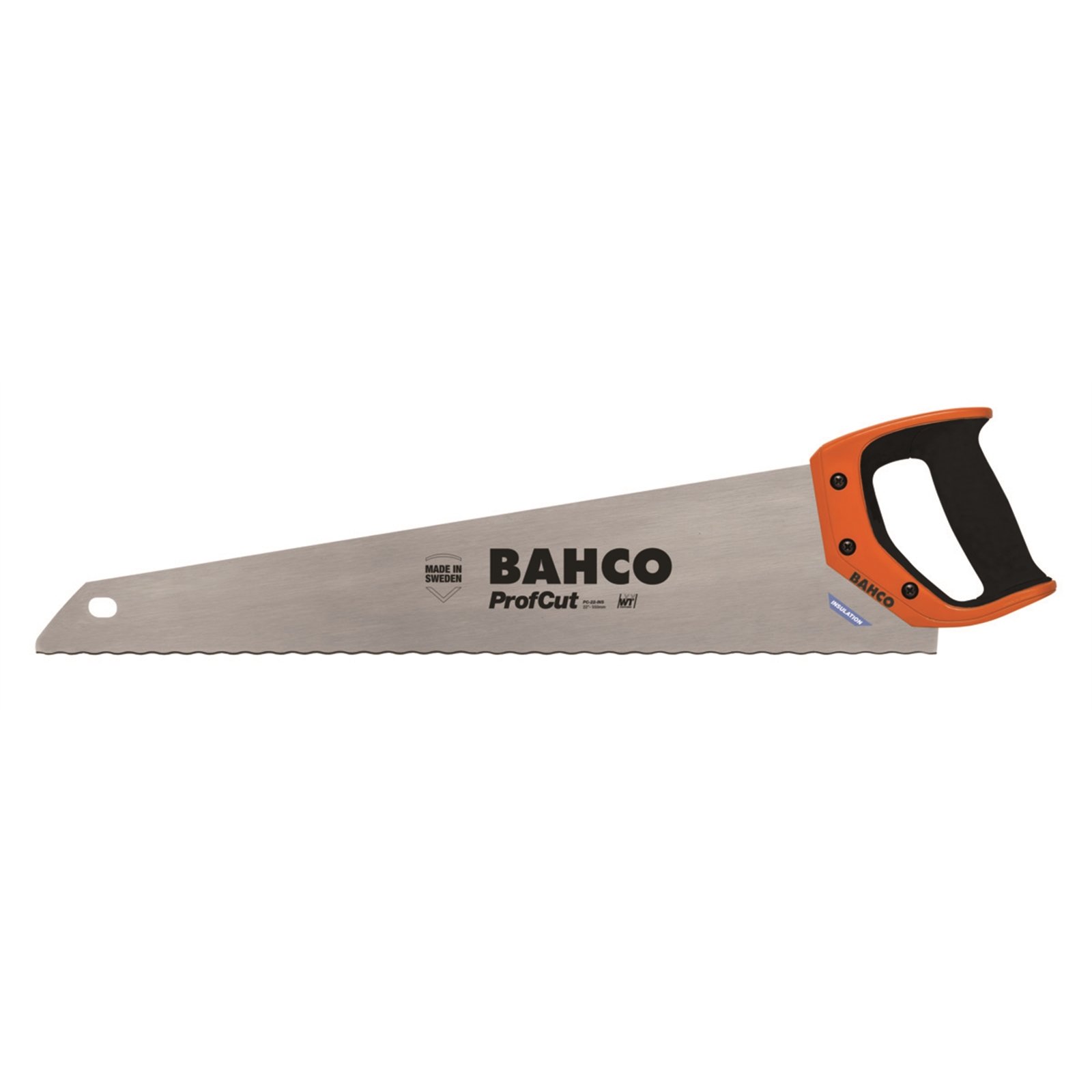

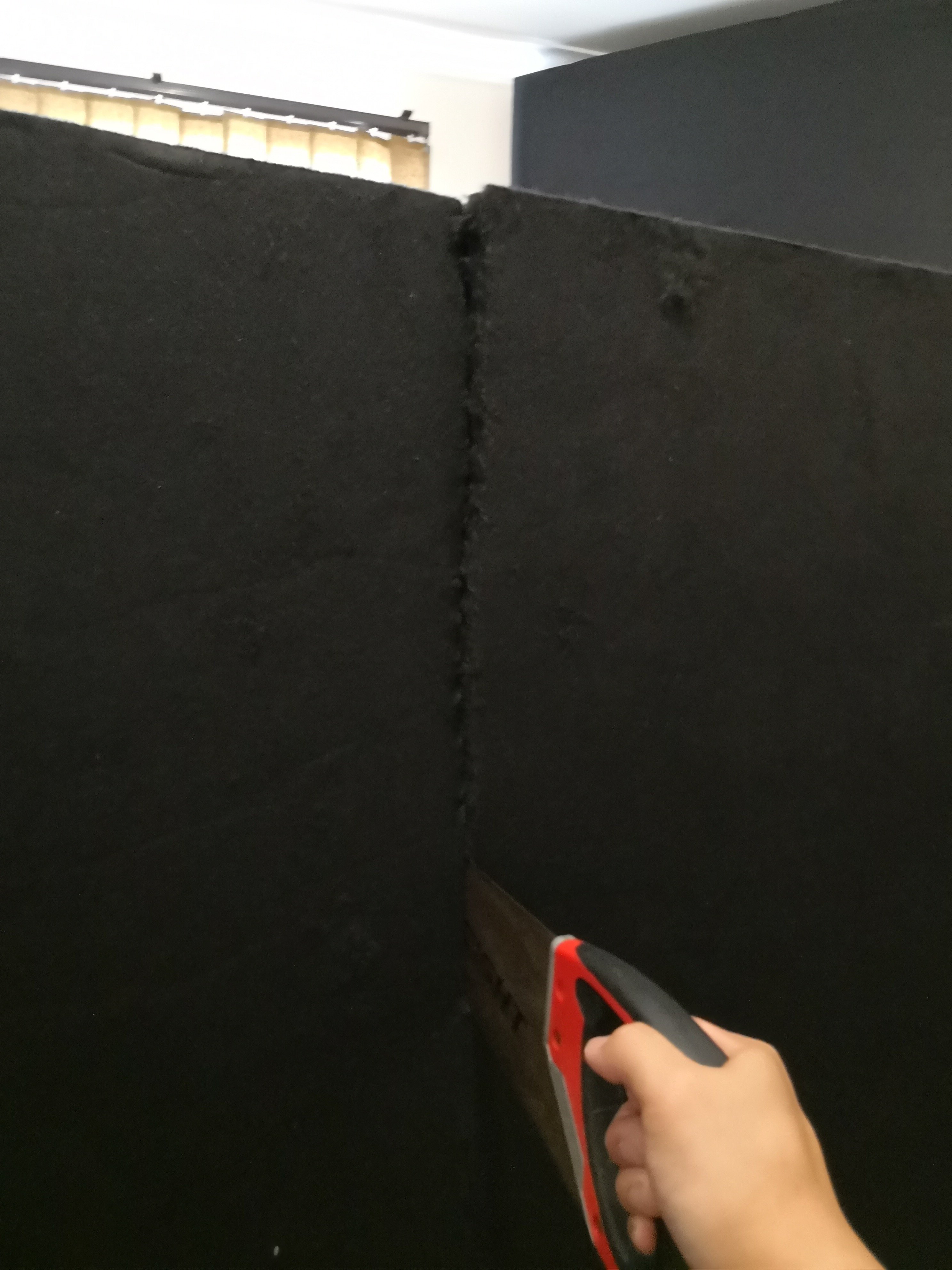

Setiawan Posted August 7, 2018 Share Posted August 7, 2018 (edited) On 05/08/2018 at 11:33 PM, Gradenko said: Toolmart recommended a hand held insulation saw for $45. I wasn't keen but tried it anyway. Thanks Gradenko. I've made quite a number of cuts to my batts in the past (maybe 16?) using just a hand saw, and it took about 10 minutes each time, not to mention the heap of fluff it produces for each cut: I still have a few fresh batts that I may cut up in the future, so this is good to know. Looks like Bunnings also stocks them for about $35: https://www.bunnings.com.au/bahco-550mm-insulation-hand-saw_p5710254 Edited August 7, 2018 by Setiawan Link to comment Share on other sites More sharing options...
almikel Posted August 8, 2018 Share Posted August 8, 2018 On 05/08/2018 at 11:33 PM, Gradenko said: I wasn't keen but tried it anyway. By gosh, this thing is sweet. Weighs nothing and cuts through it like butter. Highly recommended for when you need clean edges that aren't glazed. Awesome - will try it - just checking, it was poly not fibreglass you were cutting? I'm assuming poly since you refer to edges remaining unglazed? Bunnings web says, "designed for cutting mineral wool, polystyrene & styrofoam." If it works well on dense poly also - woohoo! FWIW, glazed edges won't impact absorption of lower frequencies, but you need a big disk to cut through 100mm thick polymax XHD in one go, so this tool is great. cheers Mke Link to comment Share on other sites More sharing options...
Gradenko Posted August 8, 2018 Share Posted August 8, 2018 36 minutes ago, almikel said: Awesome - will try it - just checking, it was poly not fibreglass you were cutting? Yea, Martini Absorb HD - polyester based. Link to comment Share on other sites More sharing options...
iversons13 Posted August 10, 2018 Share Posted August 10, 2018 Has anyone been able to source black XHD recently? I tried through an insulation mob here in WA and got the common response that it's made to order for commercial quantities only. Group buy anyone? Link to comment Share on other sites More sharing options...
richiey Posted August 13, 2018 Share Posted August 13, 2018 On 05/08/2018 at 11:33 PM, Gradenko said: After that we looked at angle grinder blades for the circular saw, as bjc suggested. This would work great, except for my application I needed the sides smooth and not melted so the absorption qualities wouldn't change. Toolmart recommended a hand held insulation saw for $45. I wasn't keen but tried it anyway. By gosh, this thing is sweet. Weighs nothing and cuts through it like butter. Highly recommended for when you need clean edges that aren't glazed. Thanks for this suggestion! I was looking for something to cut the batts, ended up using a long bread like knife , which sorta work. Still have a few sheets to cut so might pop down to my local bunnings store On 10/08/2018 at 11:44 PM, iversons13 said: Has anyone been able to source black XHD recently? I tried through an insulation mob here in WA and got the common response that it's made to order for commercial quantities only. Group buy anyone? If you were in Sydney I have the Martini Absorb HD Black 2.4m x 1.2m x 50mm (pack of 6) might have a total of 1.5 packs (9 sheets) of these available soon - i am just in the middle of building my corner bass traps , I ordered 4 packs (24 sheets) have used 2 packs so far as I doubled them up to make 100mm thick for corner bass traps . Being black colour also they charge a premium extra 10% ! Link to comment Share on other sites More sharing options...
WasM Posted August 13, 2018 Share Posted August 13, 2018 On 10/08/2018 at 9:44 PM, iversons13 said: Has anyone been able to source black XHD recently? I tried through an insulation mob here in WA and got the common response that it's made to order for commercial quantities only. Group buy anyone? Interested. But was thinking going DIY frame using Bradford Soundscreen batts. Performance seems to be similar to XHD at the same thickness. Link to comment Share on other sites More sharing options...
iversons13 Posted August 14, 2018 Share Posted August 14, 2018 Interested. But was thinking going DIY frame using Bradford Soundscreen batts. Performance seems to be similar to XHD at the same thickness.I'll be going DIY frame too, but want to stay away from fibreglass if possible. To give people a rough idea of price, I was quoted $275 for XHD 50mm, 6 sheets of 2400x1200, in white. I'm told the black is more expensive. Link to comment Share on other sites More sharing options...
flamjam Posted August 19, 2018 Share Posted August 19, 2018 If you were in Sydney I have the Martini Absorb HD Black 2.4m x 1.2m x 50mm (pack of 6) might have a total of 1.5 packs (9 sheets) of these available soon - i am just in the middle of building my corner bass traps , I ordered 4 packs (24 sheets) have used 2 packs so far as I doubled them up to make 100mm thick for corner bass traps . Being black colour also they charge a premium extra 10% ! I'd be happy to take what you have left off your hands. How much? Link to comment Share on other sites More sharing options...
