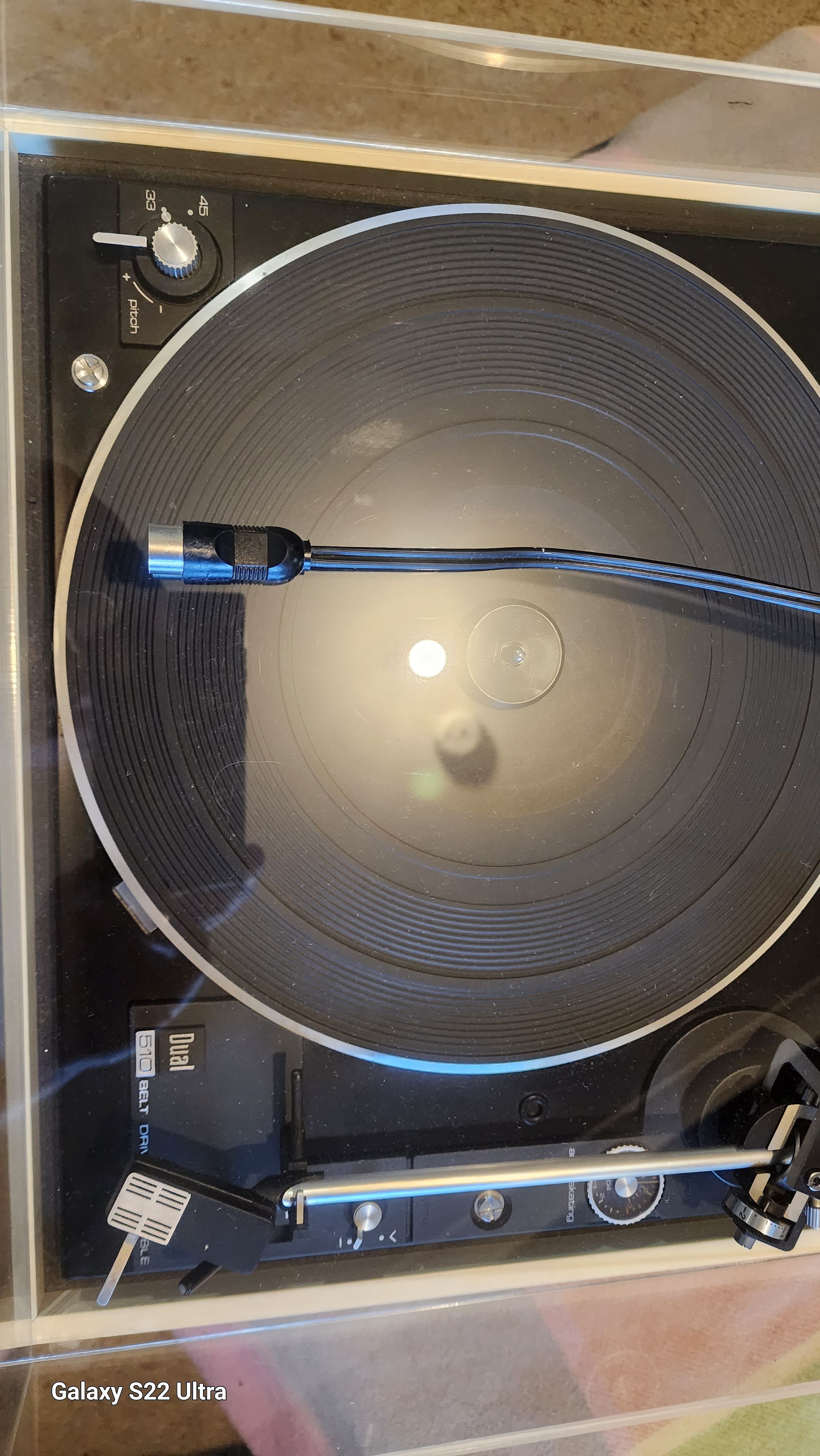

Mick17 Posted September 29, 2023 Share Posted September 29, 2023 Hello all, Newby after advice please. So, I have purchased, and probably an impulse purchase, a Dual CS 510 turntable from Facebook, "not noted" that it has a din lead instead of RCA's. So, I am wondering the best way to go, or, what to do to as far as converting to run RCA's. I have found a wiring diagram for the din lead, albeit, Dual 510 (cannot find what the CS means). Seems to be only connected to the 3 pins of din lead. So, to get to point, is this fairly simple to re wire from the din cable, i can solder and follow directions. I just did not want to cut / destroy the original din without some further advice. Hoping this all makes sense! i have seen the other two posts regarding this, however, i am still unsure.... So, from schematic below - you have the white (pin 3) and red (pin 5) for the left and right channels. so is the shielding I am assuming on cables run to pin 2 as the earth?? seems to be only two distinct wires running into the din that i can tell without cutting open as yet. (any drawing or pics would be great). The other way of course would be to purchase din to rca conversion wiring. My question to this would be, are the din wiring on most turntables universal so if i was to purchase one of these cables would it work? And of course. the cost factor out waying the cost of the turntable to the coast of a lead. I see they seem to range from Ebay $50 to $thou's Thanks in advance, Regards Mick Link to comment Share on other sites More sharing options...
Hydrology Posted September 29, 2023 Share Posted September 29, 2023 You appear correct regarding the wiring - pin 2 is the ground and pin 3 and 5 are the left and right signal. Link to comment Share on other sites More sharing options...
DDZIP Posted September 29, 2023 Share Posted September 29, 2023 (edited) Without any cutting, get yourself a 5 pin din inline socket, 2 rca plugs and 2 lengths of shielded cable. strip one end of both twist shield together and solder to pin 2. then use solder the centre core to pins 3 and 5. other end attach rca plugs. make note of which you soldered onto 3 and 5 ie left and right channels. try and make this extension a short as possible. you could always just cut the din plug off and replace with 2 rca male plugs or try ebay for 5 pin din socket to 4 rca plug. Edited September 29, 2023 by DDZIP added Link to comment Share on other sites More sharing options...
Richard Tremain Posted September 29, 2023 Share Posted September 29, 2023 (edited) It appears your Din cable only has a single earth wire a normal Tone arm cable has a earth wire for each channel. This is your problem you need to solder on to this single wire so it looks like a Y so you can earth each of your new RCA plugs. Din T/A plugs are from a bygone era. PS Din plugs are very difficult to solder suggest you avoid doing that. Edited September 29, 2023 by Richard Tremain Link to comment Share on other sites More sharing options...
aussievintage Posted September 29, 2023 Share Posted September 29, 2023 https://www.amazon.com.au/Qaoquda-Adapter-Electrophonic-Olufsen-Quad-Stereo/dp/B07VHJ1CXT/ref=sr_1_5?crid=VI7JXCFZRRM7&keywords=5%2Bpin%2Bdin%2Bto%2Brca%2Bstereo&qid=1695960008&sprefix=5%2Bpin%2Bdin%2Bto%2Brca%2Bstereo%2Caps%2C321&sr=8-5&th=1 Text says it works with B&O and I found the following diagram, supposedly for a B&O connecter, so looks like it uses the same pins (3 and 5 for signal) 2 Link to comment Share on other sites More sharing options...
DDZIP Posted September 29, 2023 Share Posted September 29, 2023 If this is the same pin outs. Its a lot cheaper than the Amazon one https://www.ebay.com.au/itm/393956195354?hash=item5bb99e7c1a:g:F14AAOSwl~FiFywp&amdata=enc%3AAQAIAAABAFRI8yw%2BDxwQvQ5ykXcbkxLPZOD%2FkwDToKVrtUm3PR03AJTL3v4hnqNHgzt8ojeSfkOiw%2BYvXV4QHLbFBCR%2Ba2VEXXnGjaZDv2kpWfb0NxWmHsGunfaWTXNEuhIYjQHmU3vxcESiaRSfmzc0cBI6uq0vmqKVjkZKdQyKE4zh55qO5yE1lTYDK3xHczuLaceKb%2F2Njij77vSdLuF1tl0Ea1cCnuVgfoM7feonIURLgeE9UKQXNxSK5VBN%2FKI1fBuHk8sxJWSUgK1IrVASTk7%2BZq%2FNaO5KvkKt4HK2umg8RFNHvnpB8ISOw%2FSvQIFmv4tgLC6uLD3kJnyZAONnE5HtFUo%3D|tkp%3ABk9SR_aFiPjbYg DIN was german standard to ensure all pin connections where the same. so 5 pin had left/right screen middle pin right/left Link to comment Share on other sites More sharing options...
SonicArt Posted September 29, 2023 Share Posted September 29, 2023 I would rewire the table internally, if it has all the cartridge wires coming out the base of the arm, and a black earth wire, you can fit some RCA sockets to the back panel of the TT and wire red/green to right channel, white/blue to left, and put a single speaker post in between the RCA's for your earth lead, Jaycar or Altronics for the parts. 2 Link to comment Share on other sites More sharing options...
audiofeline Posted September 29, 2023 Share Posted September 29, 2023 (edited) I would get a low-capacitance RCA phono cable and replace the current cable. Cut the RCA's off at one end, and solder to the connection plate in the Dual. Or buy a length of low-capacitance shielded cable and a couple of RCA plugs, and solder one end to the connection plate. That will ensure your leads are shielded, essential in a phono cables. You will probably find it's an sonic upgrade on the stock cable. And use a length of any insulated cable for an earth cable with your phone leads, put a spade on one end and solder to the connection plate. This can be a cheap wire, it doesn't contribute to the audio quality, it controls for an electrical hum (if it exists in your setup, it's not always required). Edited September 29, 2023 by audiofeline 2 Link to comment Share on other sites More sharing options...
SonicArt Posted September 29, 2023 Share Posted September 29, 2023 If it has a connection plate internally then yes it would be easy to use some phono coax or similar shielded cable, I would still separate the earth and channel wiring though and add an earth lead from inside to the phono stage. 1 Link to comment Share on other sites More sharing options...
Mick17 Posted September 30, 2023 Author Share Posted September 30, 2023 Hi to all and thanks for helping out. Was getting a bit confused on which way to go here, however have just found a vid on you tube with a video of changing out the Din to RCA as suggested here as well. I think i will open her up and have a crack at it! Seems to be straight forward....(famous last words). Thanks again, Mick 1 Link to comment Share on other sites More sharing options...
Mick17 Posted September 30, 2023 Author Share Posted September 30, 2023 Let you know how it goes. Tried adding link to video, however, could not seem to attach. Link to comment Share on other sites More sharing options...
aussievintage Posted September 30, 2023 Share Posted September 30, 2023 15 minutes ago, Mick17 said: Hi to all and thanks for helping out. Was getting a bit confused on which way to go here, however have just found a vid on you tube with a video of changing out the Din to RCA as suggested here as well. I think i will open her up and have a crack at it! Seems to be straight forward....(famous last words). Thanks again, Mick It's a nice sort of job to get you started in doing this sort of thing if you haven't done it before. If you struggle there will be plenty of people willing to help further. Link to comment Share on other sites More sharing options...
Richard Tremain Posted September 30, 2023 Share Posted September 30, 2023 20 hours ago, audiofeline said: I would get a low-capacitance RCA phono cable and replace the current cable. Cut the RCA's off at one end, and solder to the connection plate in the Dual. Or buy a length of low-capacitance shielded cable and a couple of RCA plugs, and solder one end to the connection plate. That will ensure your leads are shielded, essential in a phono cables. You will probably find it's an sonic upgrade on the stock cable. And use a length of any insulated cable for an earth cable with your phone leads, put a spade on one end and solder to the connection plate. This can be a cheap wire, it doesn't contribute to the audio quality, it controls for an electrical hum (if it exists in your setup, it's not always required). Or just fit AUSSIEVINTAGE Adaptor !!! Link to comment Share on other sites More sharing options...
SonicArt Posted September 30, 2023 Share Posted September 30, 2023 You could just fit an adapter, but it would be a far better job to rewire it with separate earths for channels and main arm earth and its an inexpensive task. 1 Link to comment Share on other sites More sharing options...
Richard Tremain Posted September 30, 2023 Share Posted September 30, 2023 4 hours ago, SonicArt said: You could just fit an adapter, but it would be a far better job to rewire it with separate earths for channels and main arm earth and its an inexpensive task. It is just an old Dual with crummy arm like i did own in early 1970s. Really the adaptor wins hands down, you would then upgrade the T.T. not the wiring. Link to comment Share on other sites More sharing options...

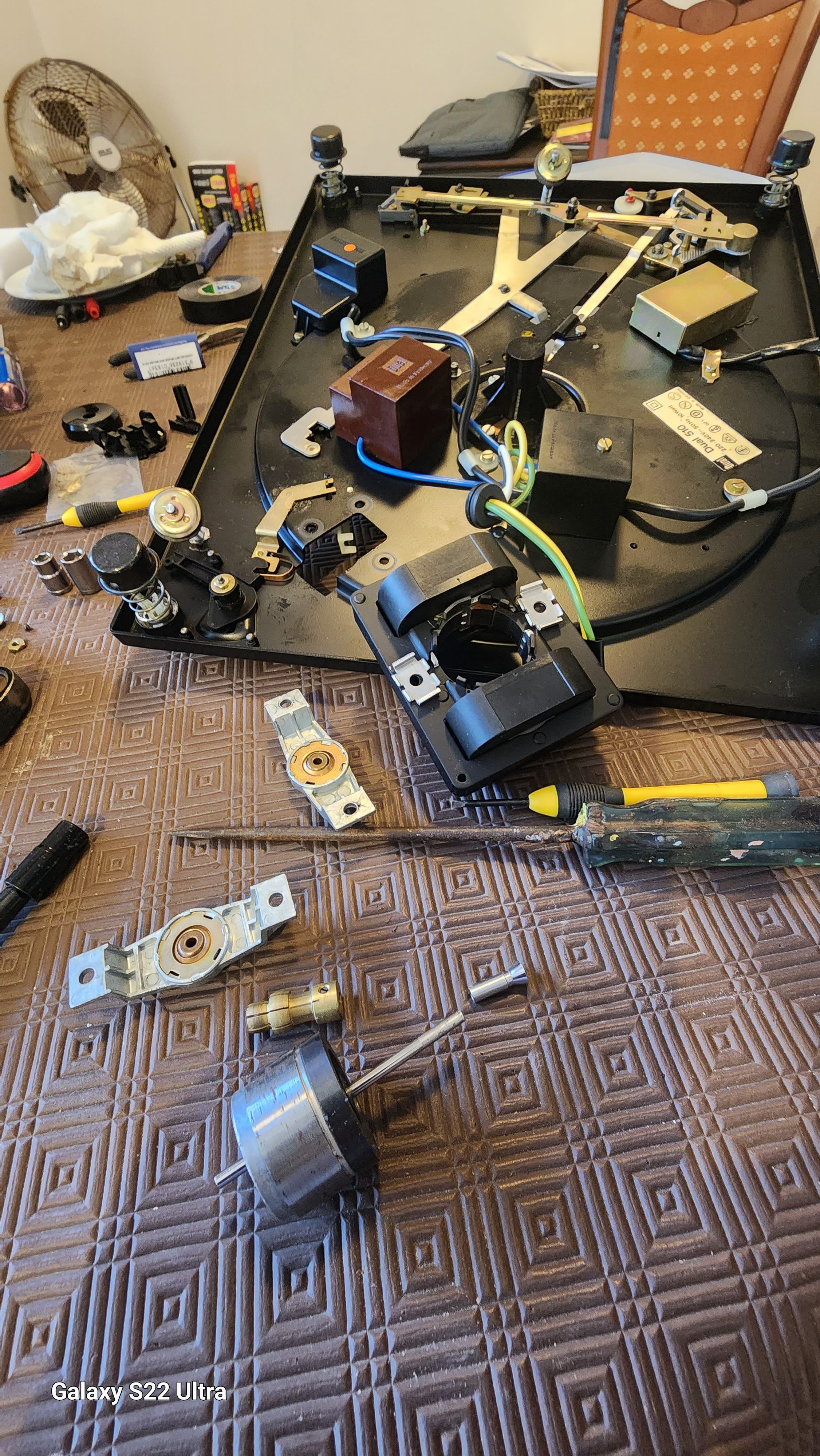

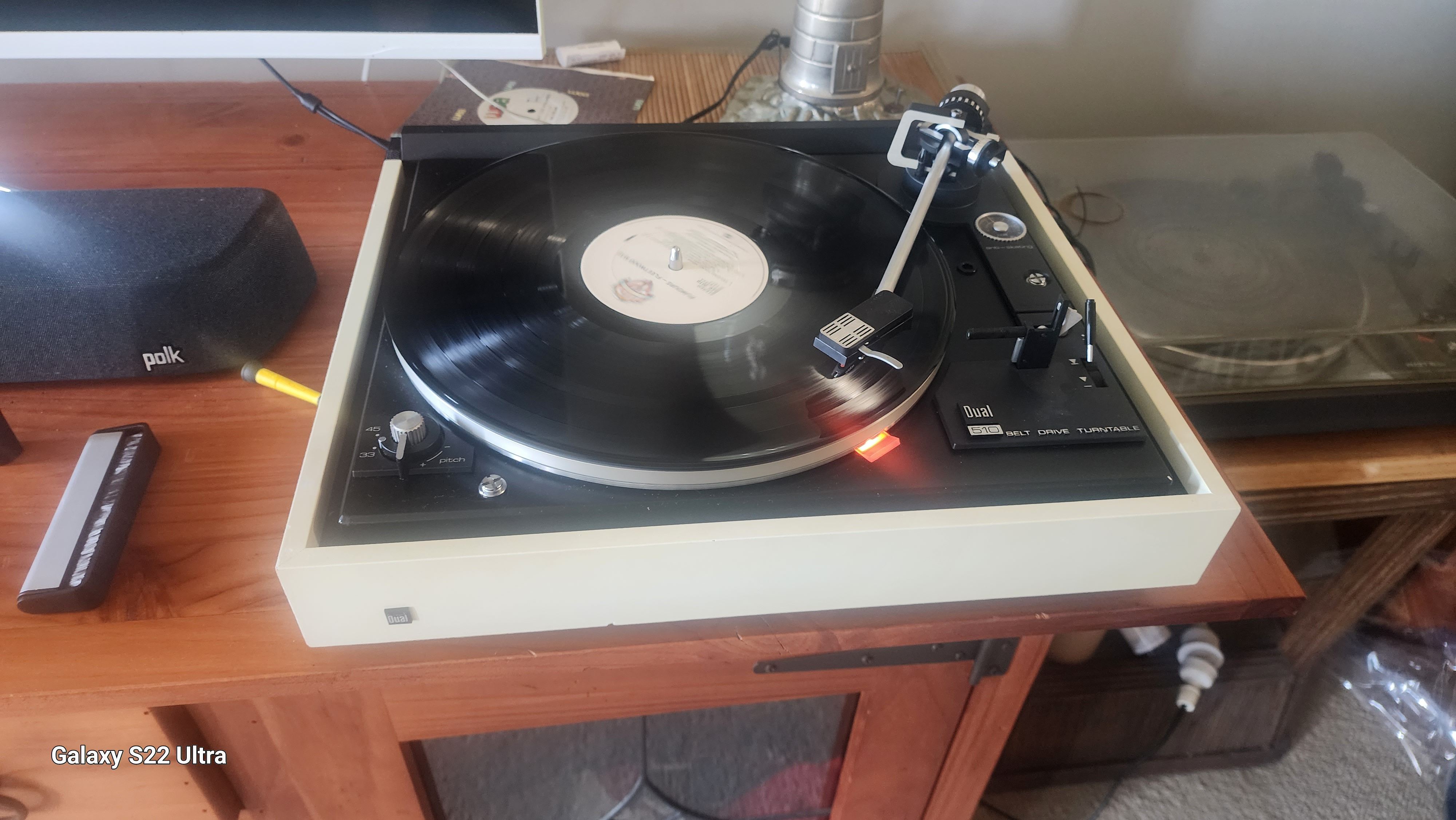

Mick17 Posted October 3, 2023 Author Share Posted October 3, 2023 Thanks all for the input, went ahead and pulled apart. Glad I did, was supposed to of been serviced recently! Oil everywhere inside! cleaned everything i could, and reoiled / greased where required, found the pitch belt oiled as well and no longer fitted due stretch, pitch adjusted locked up so removed, polished and grease - works fine now, just waiting for new belt. Thanks, once again for all input. Link to comment Share on other sites More sharing options...

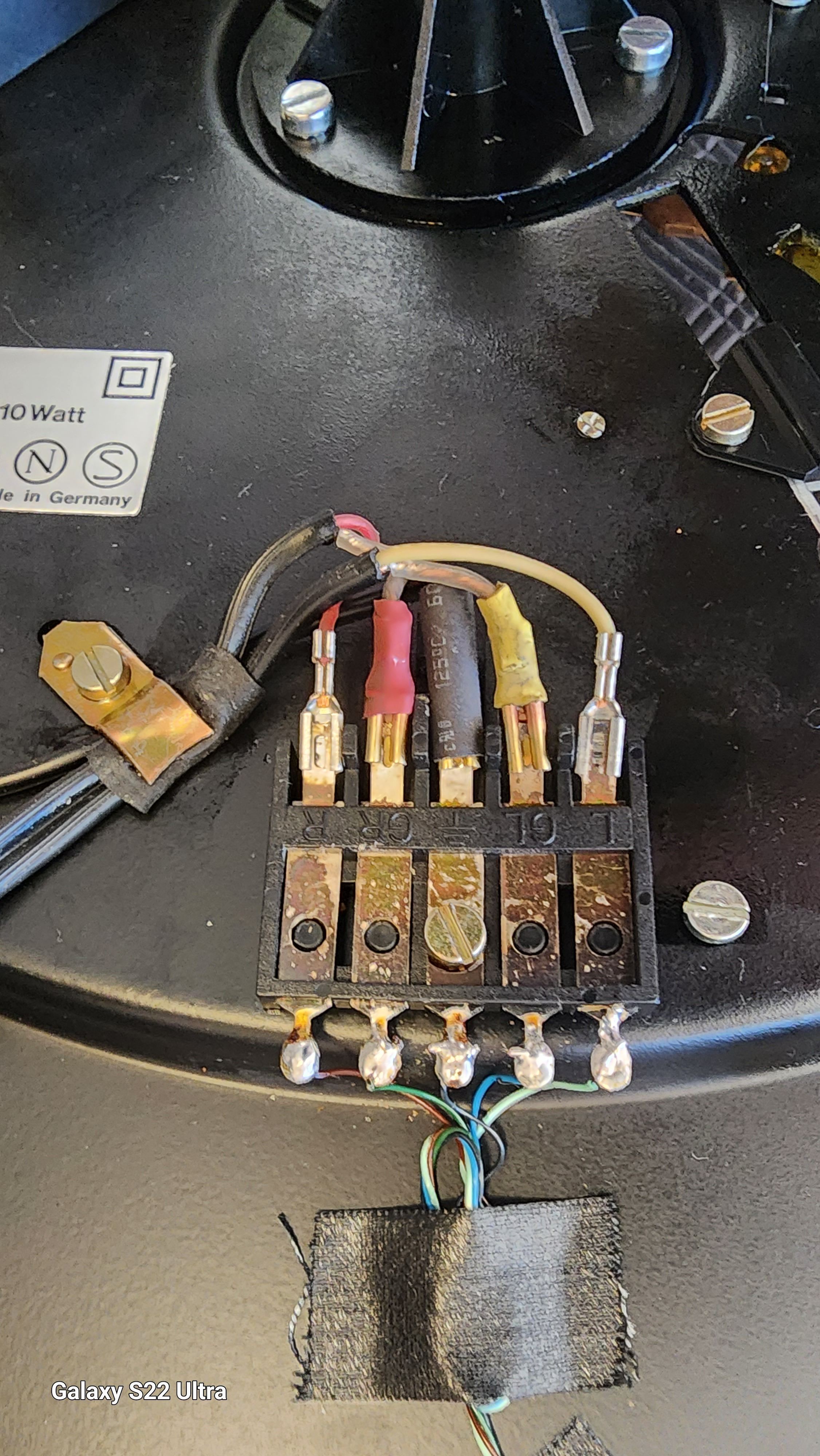

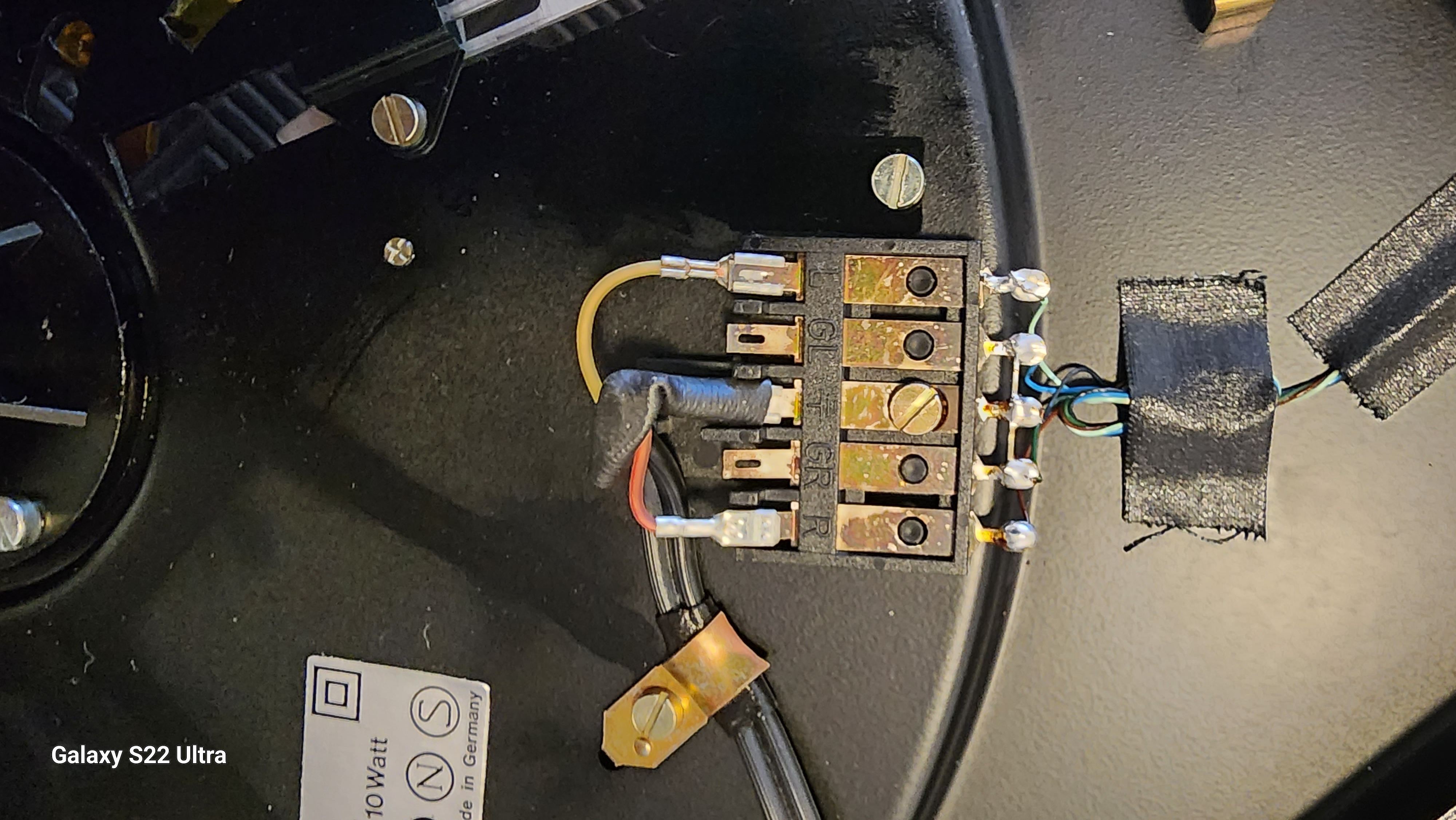

SonicArt Posted October 3, 2023 Share Posted October 3, 2023 good job! nice little tag strip for the arm wiring, make it super simple to solder directly to the tabs, for the few bucks from Jaycar etc I would add coax and RCA plugs and a piece of hookup wire for the earth connection. Link to comment Share on other sites More sharing options...
aussievintage Posted October 3, 2023 Share Posted October 3, 2023 1 hour ago, SonicArt said: solder directly to the tabs Definitely. Link to comment Share on other sites More sharing options...
Mick17 Posted October 6, 2023 Author Share Posted October 6, 2023 Thanks guys, will do that, added tabs as that what the original ones were. Will solder direct to tabs. 1 Link to comment Share on other sites More sharing options...
