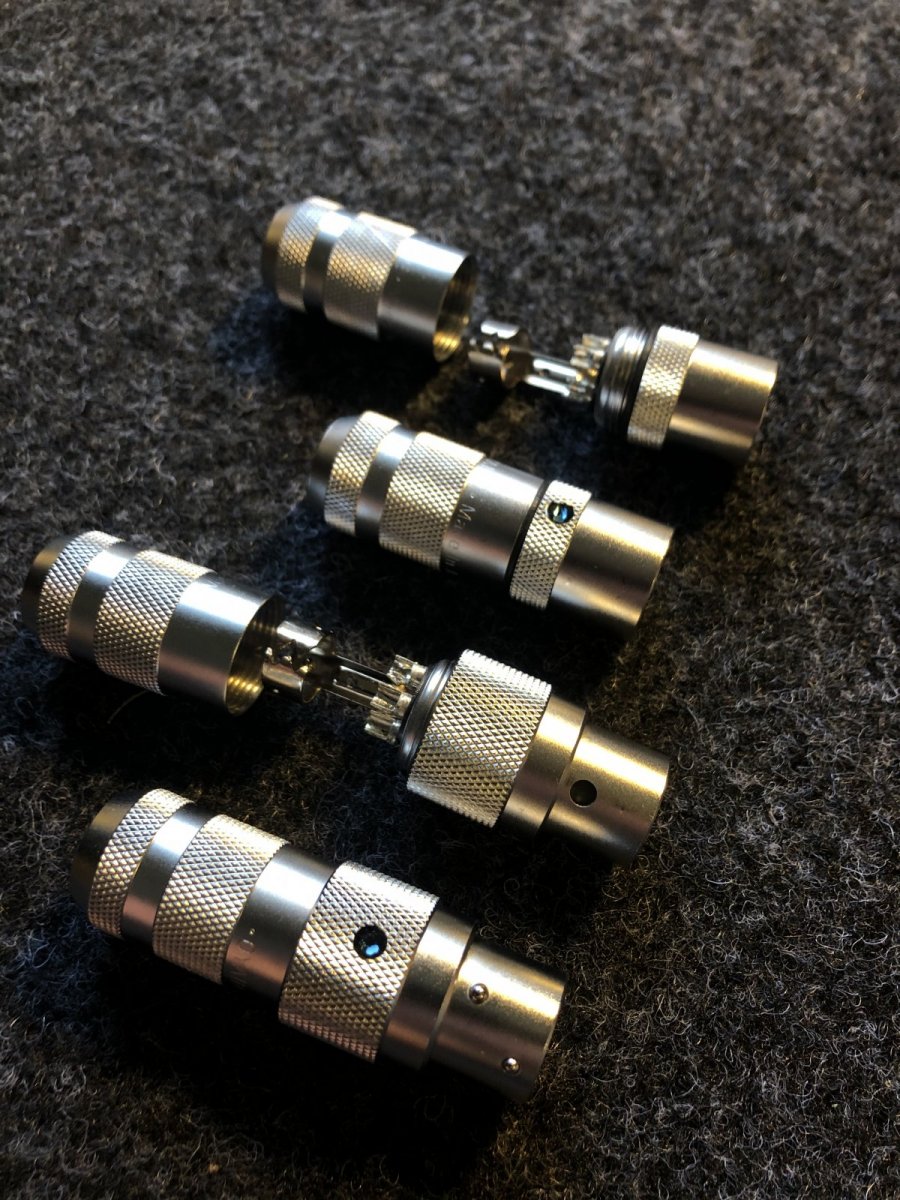

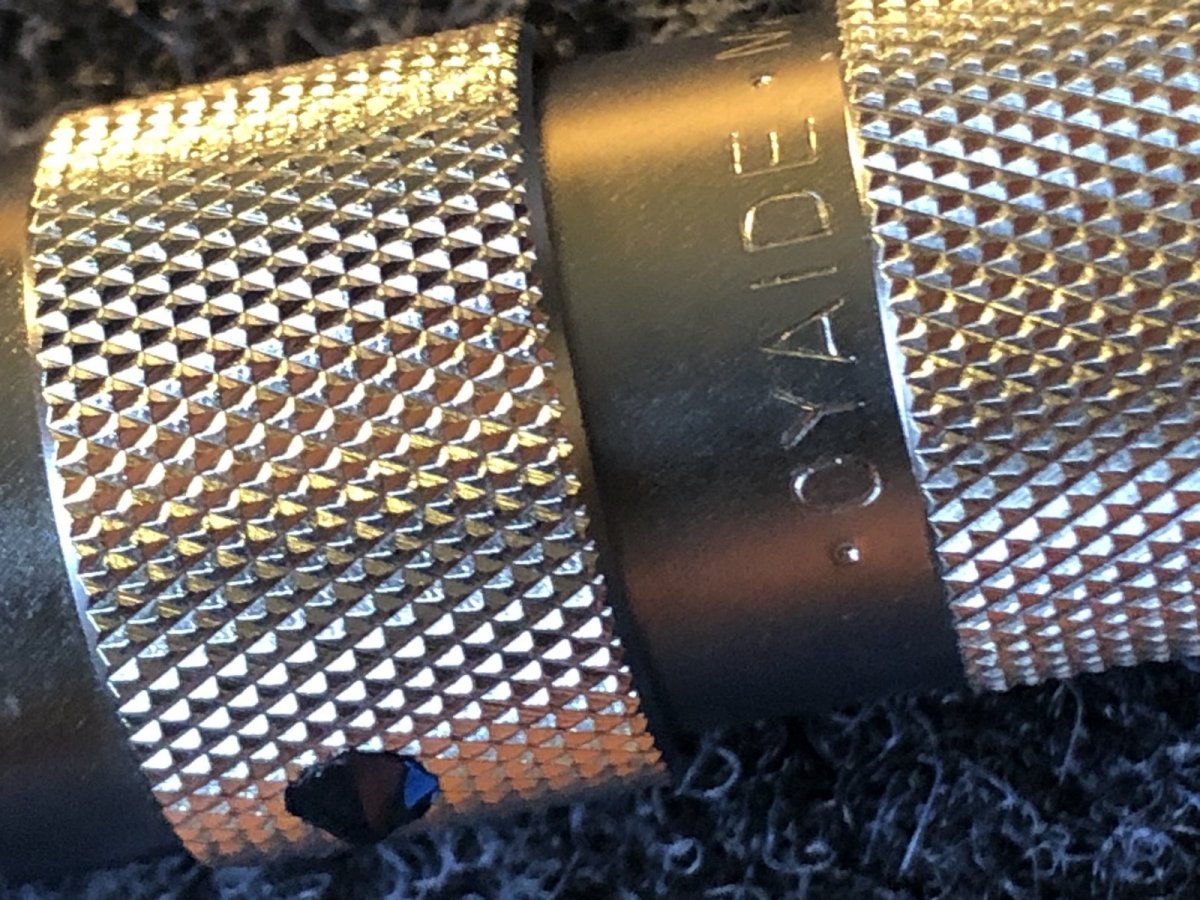

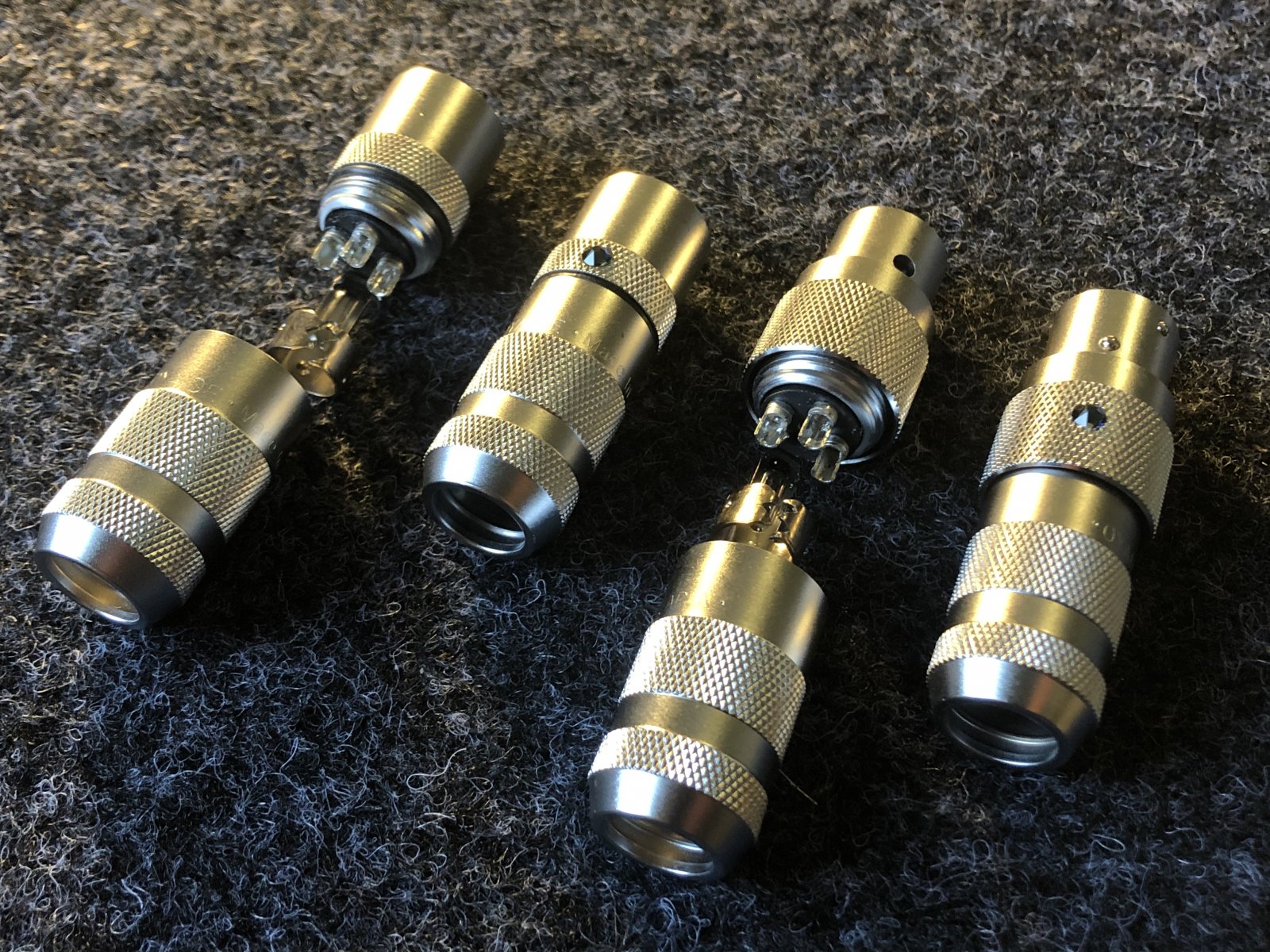

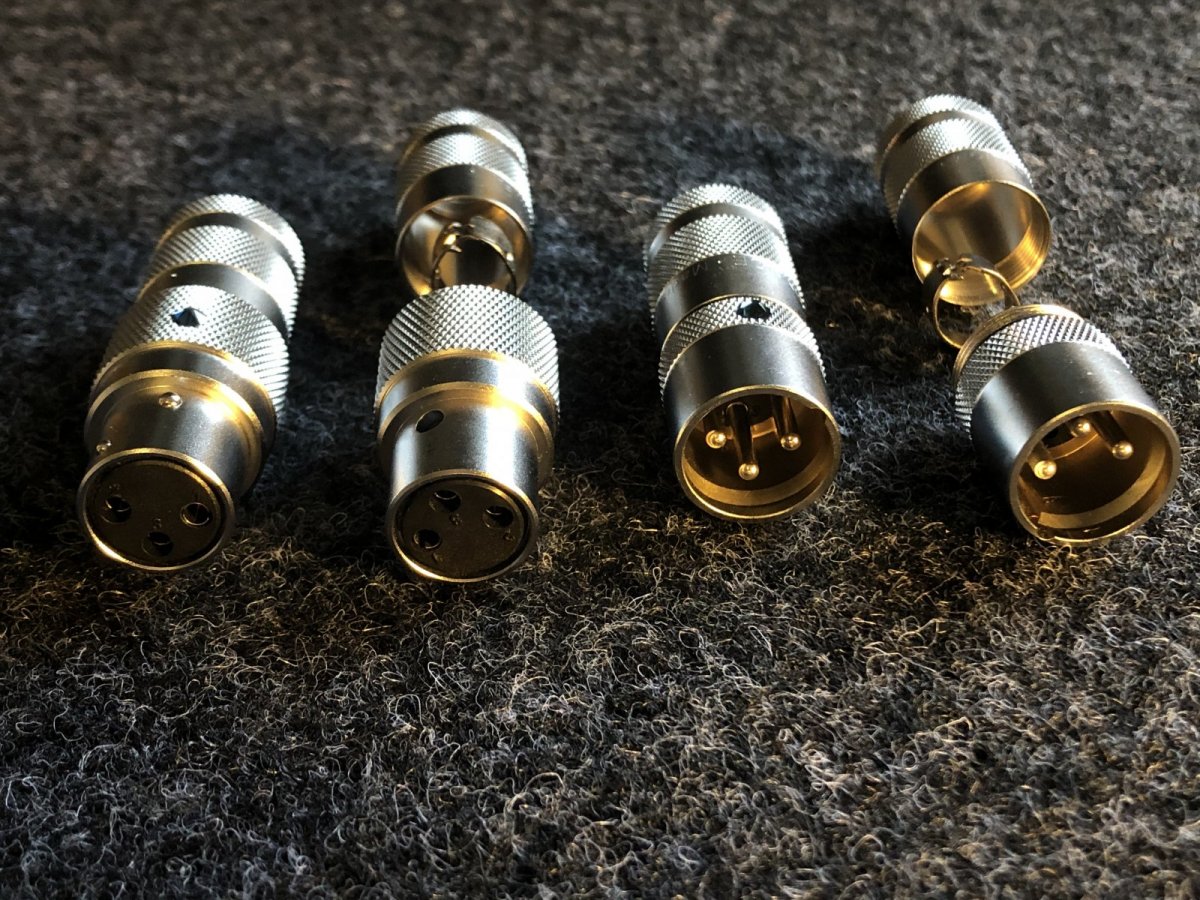

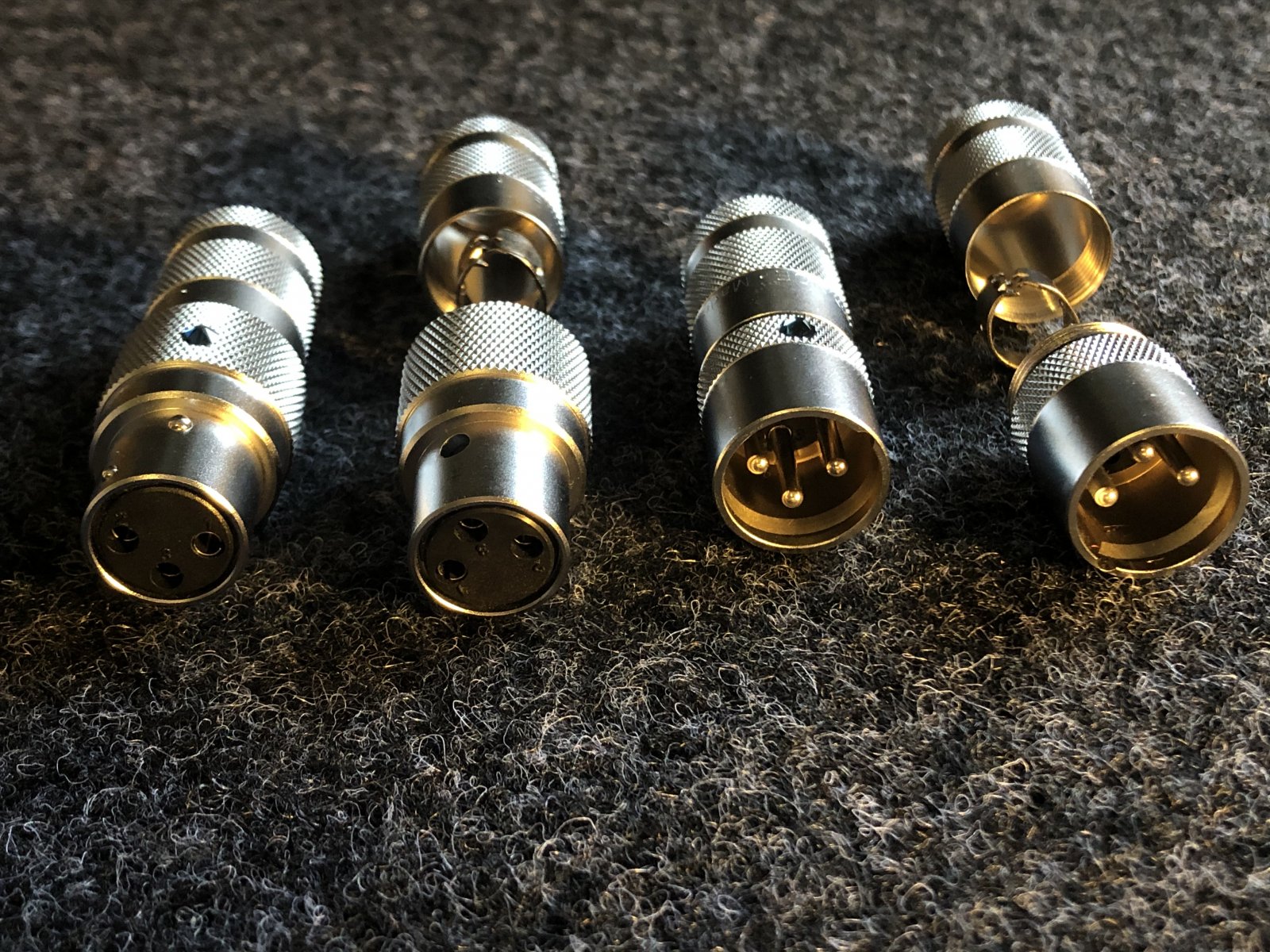

Lochawe Posted August 8, 2020 Posted August 8, 2020 Further information: This set of four Oyaide Focus 1 XLR connectors (2 x female plus 2 x male). They are in impeccable condition and all pins are in excellent shape after the process of being very carefully and cleanly removed by a master technician in the Netherlands from the set of Echole cables. I replaced these with a set of Furutech CF XLR plugs when I had a pair of my ECHOLE Limited Edition XLR cables upgraded recently in Europe. These were soldered to the Echole Limited Edition cable using Mundorf Supreme Silver/Gold solder. Retail is over $250 plus shipping. BELOW IS MORE INFORMATION FROM OYAIDE: Specifications Material Contact Pin : deoxidized Phosphor Bronze Insert Resin : PBT 30%GF Housing Shell : Brass (RHoS compliant ) Cable Clump : Brass (RHoS compliant ) Contact Pin : Silver plating(1.5μ)+ Rhodium plating(0.3u) Surface Finishing Cable Clump : Nickel plating Housing shell : Hard chrome plating Cable Connection Method Soldering Install Cable O.D. 6.0mm～12.0ｍｍ（without cable bush） Additional Information Oyaide enhance their product quality by paying careful attention to each detail of structural characteristic, texture and appearance. Only when such details are integrated successfully, a product is completed perfectly. At Oyaide, we spare no effort in spending time for those creative works. It took a whole year to complete "FOCUS 1" XLR connector since the first product planning. The design is inspired by an appearance of lens on a camera which represent subtle and exquisite sound image of FOCUS 1. As a result of integration of high-quality sound and efficient design, a masterpiece XLR plug, FOCUS 1, was produced by uncompromising spirit and technical know-how of Oyaide Electric. Features Originality - One-touch push-pull function is the entirely-new locking system. You can lock Just by inserting FOCUS 1 into the inlet and unlock by pulling the tip ring. Ball bearing system, manufactured by ultraprecision machining, is employed for its locking mechanism. These functions deliver smooth and absolute plug connection. In addition, an innovative idea is utilized for the contact of FOCUS1. The No.1 contact pin (earth) is 3mm longer than other pins, so that it contacts fast for the purpose of protection from POP noise at the moment of connection. Furthermore, bladed cable clump is employed for cable fixture. By applying this clumping system, it is possible to connect chassis ground and stabilize cable simultaneously. Material - The contact pins of FOCUS 1 are made from phosphor bronze bar which is precisely shaped by CNC machining. After careful machine barreling, silver (inner) and rhodium (outer) are directly plated on them. Then, these pins are molded into highly rigid 30% glass filled PBT which insures high-speed vibration attenuation. The body and housing, processed by CNC machining, are high-density and have high shielding performance compared to an existing lost-wax processed body. For its surface treatment, hard chrome plating is coated like a body of camera. Usability - Due to its 12mm install cable O.D. (when cable bushing is removed), it gives infinite possibility to do-it-yourselfers. And its tapered insertion hole makes cable installation easier and avoids from cable disconnection by bending. Furthermore, a rubber ring which is installed at the junction of the body and housing acts as vibration damper and loosening protector. Appearance Designing - The design of FOCUS 1 is inspired by an appearance of lens on a camera which projects subtle and exquisite image. For the identification of channel L and R, the SWAROVSKI rhinestones, blue and red, are enchased on the surface of its body. The beauty of its body design and a brilliance of SWAROVSKI enhance the appeal of this product and produce a sense of expectancy Photos: ATTACHED PLEASE READ If you are advertising multiple items, you must post one bulk price only, or post seperate ads for each item If you include any reference to pricing whatsoever in this section (excluding RRP), your ad will not be approved If you don't include photographs of the actual item being sold, your ad will not be approved
