Scanspeak 26w/4558T00 long excursion 10” subwoofer driver

Featured Replies

Further Information:



Up for sale a NEW in box (unused, never connected to any amplifier), 26w/4558T00 long excursion 10” subwoofer driver.
Scanspeak are a high-end speaker manufacturer based in Denmark. They have been making some very expensive and exotic drivers for decades (featured in $50,000 speakers)
This driver features an aluminium cone with a high temperature voice coil with a shorting ring (to reduce voice coil inductance). Max excursion is 25mm and max’ mechanical excursion is 56mm.
The chassis is die-cast aluminium to keep weight down. This could be used with a slightly higher than normal crossover point if required:
The low resonant frequency and medium QTS means that it can used in a sealed, ported or Passive Radiator enclosure. Sealed might require a bit of EQ to bring up lower frequencies if the sub’ is not room loaded or in a vehicle.
Expect very tight bass with low distortion, high power handling and excellent reliability.
Apparently these drivers are used in the Bang and Olufsen Beolab 90 - $110k a pair and the highly regarded Magico S5 - $80k a pair.

Full tests here -- https://audioxpress.com/article/test-bench-scan-speak-discovery-26w-4558t00-10-aluminum-cone-subwoofer
Datasheet - https://www.scan-speak.dk/datasheet/pdf/26w-4558t00.pdf
An example of a Project with a passive radiator - http://www.troelsgravesen.dk/26W-4558T00.htm This is also a similar driver to the one used in the speedwagon


RRP $479 plus freight - https://www.wagneronline.com.au/scan-speak-10-sub-woofer-discovery/speaker-drivers/audio-speakers-pa/999632/fl/

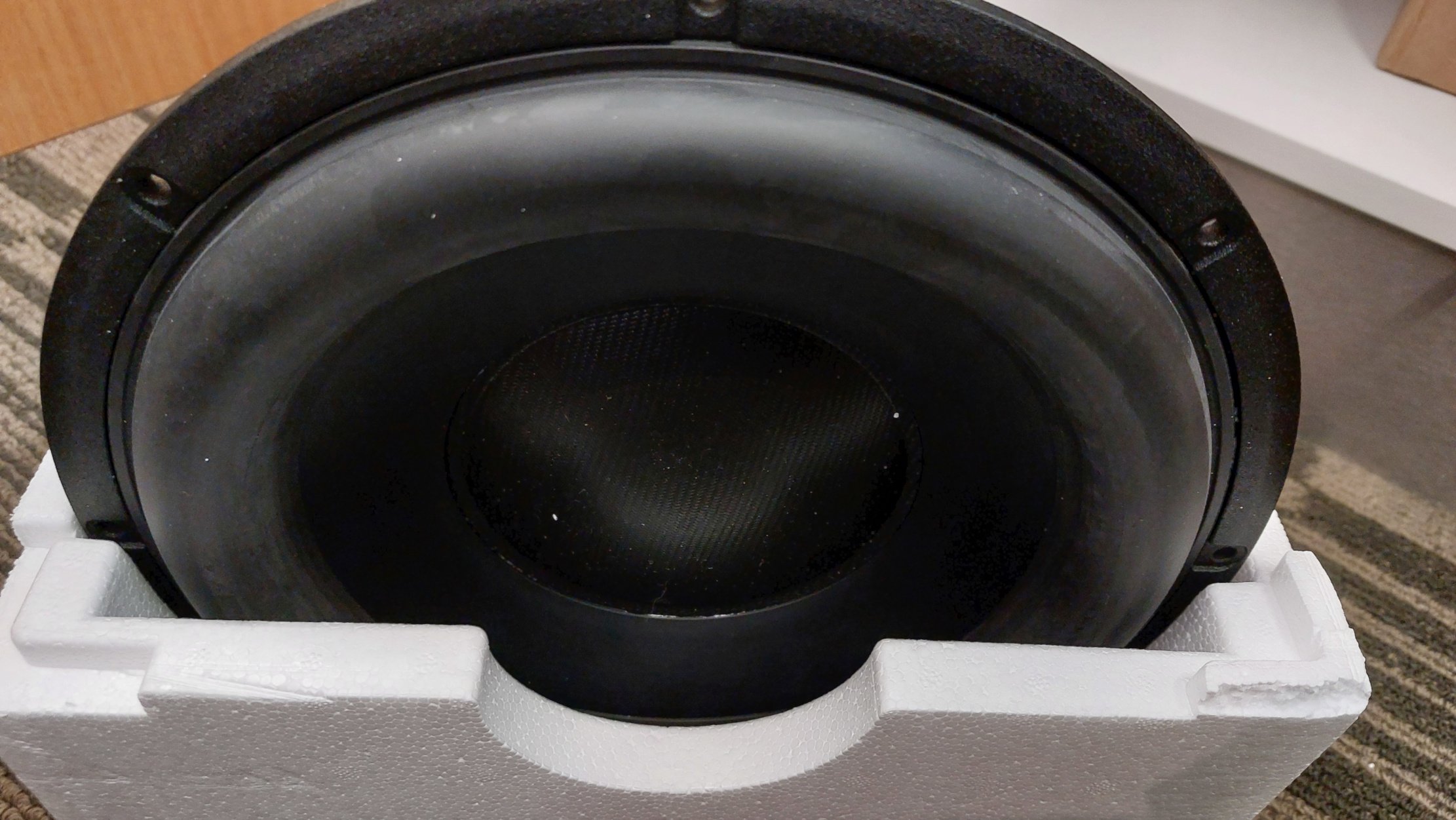

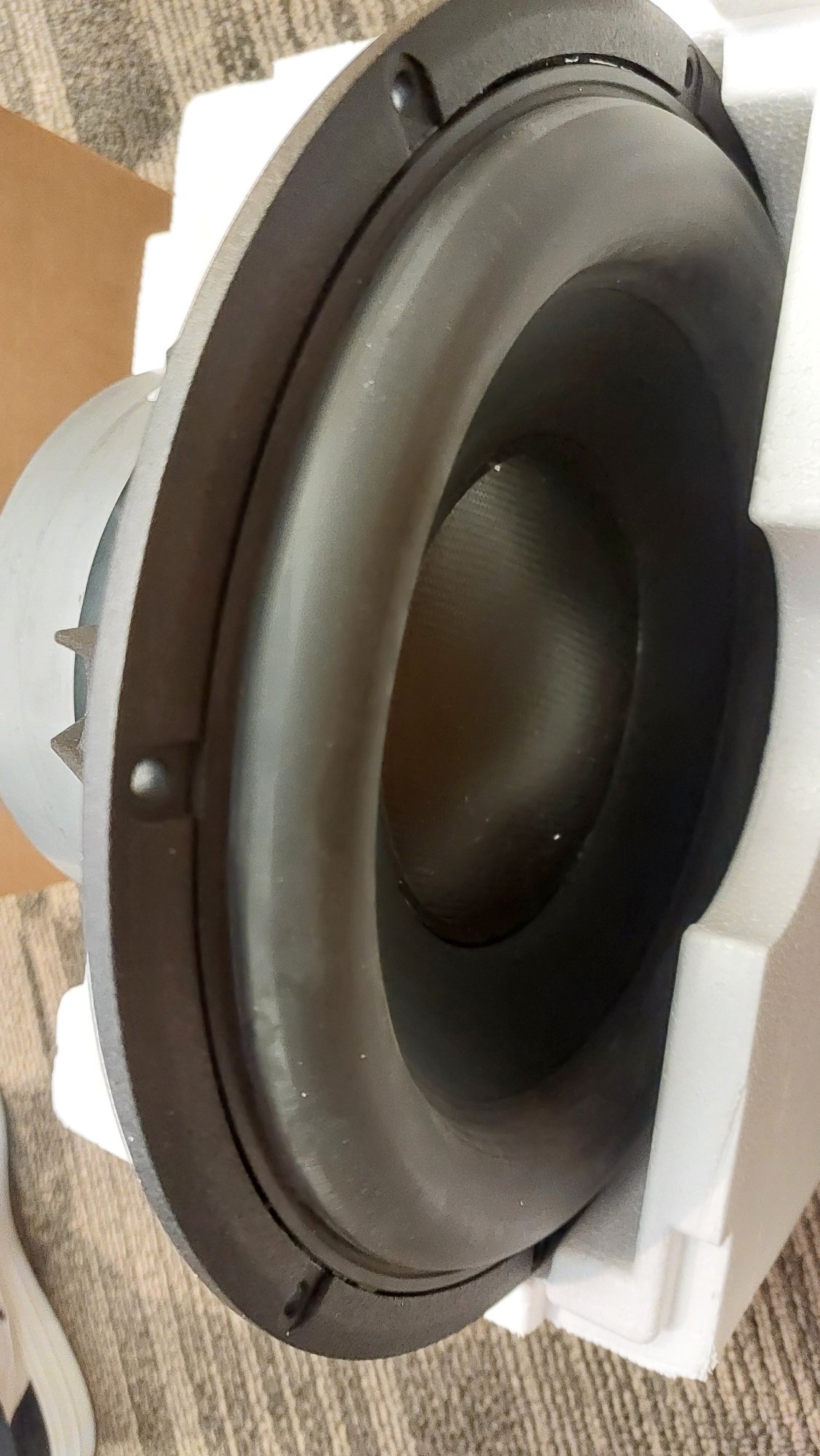

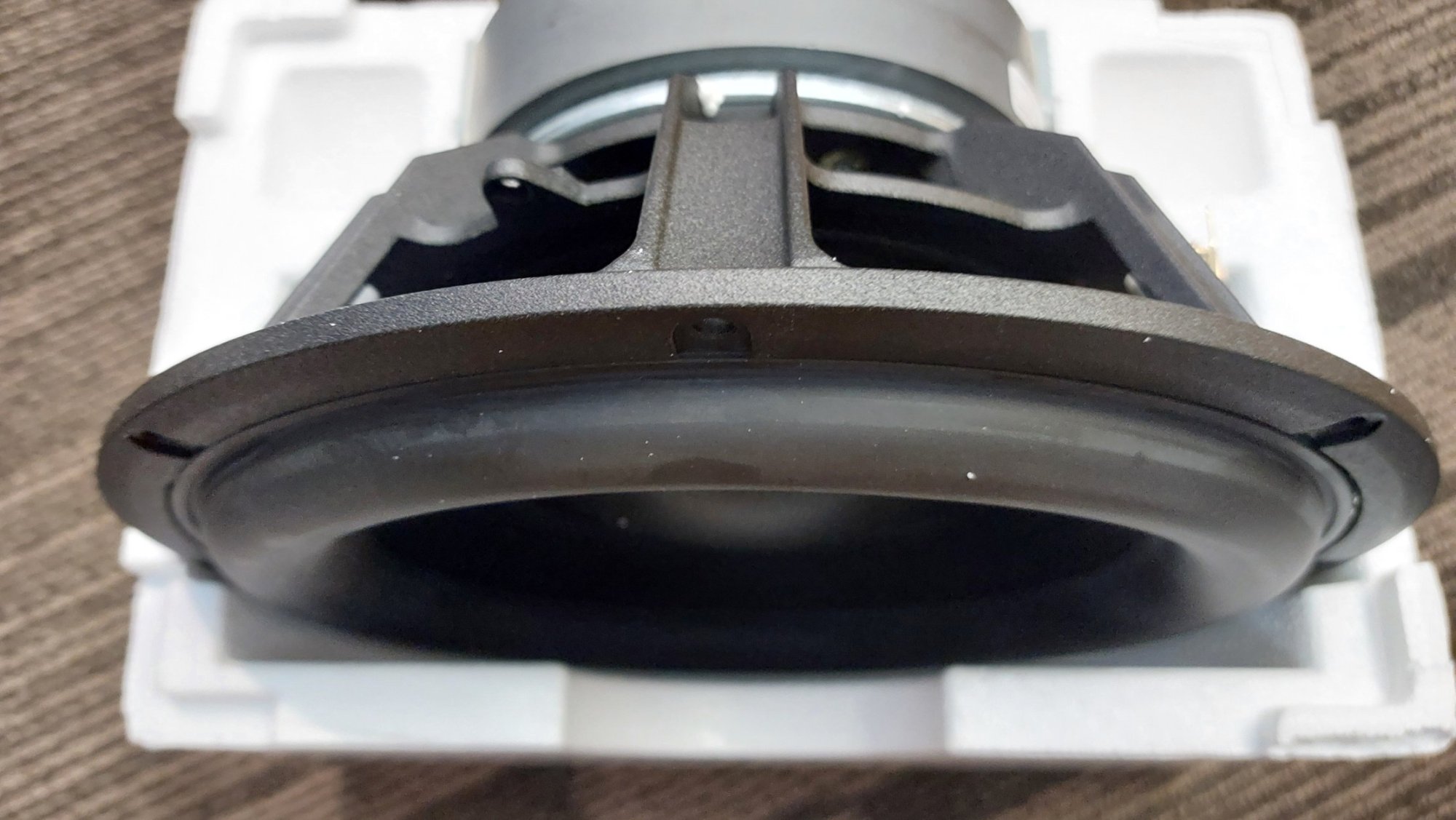

20240226_115241.thumb.jpg.b744c4fbff71044ab2ec7532ad258576.jpg20240226_115340.thumb.jpg.23aafd02990d5e4d010f048e270ea27b.jpg20240226_115354.thumb.jpg.f363af7df1012a60f4373f55bc386b07.jpg20240226_115312.thumb.jpg.3f8e754311b20492a1ed4a0061d38fed.jpg
