ASCENDO DSP4-6602 Amplifier Digs Deep for High-End Home Cinema

The German specialist says the new amplifier has been engineered to bridge a familiar gap in high-end home cinema. Many residential amplifiers lack the sustained output and current delivery required for large-format subwoofer arrays, while traditional professional amplifiers can bring their own compromises, including fan noise, clumsy integration and operational quirks that are less welcome in luxury cinema rooms.

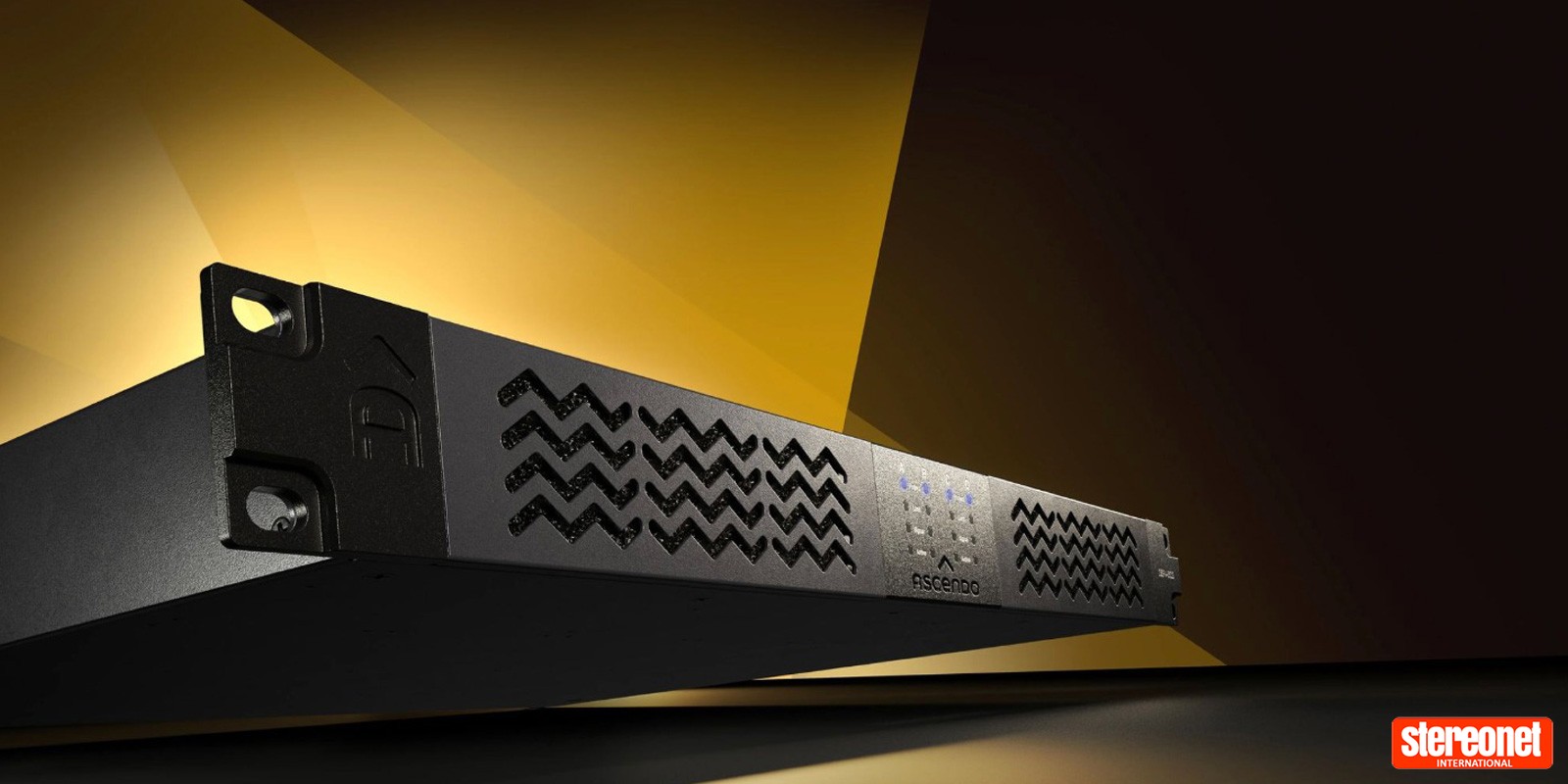

The DSP4-6602 is ASCENDO’s answer to that problem: a compact 1RU amplifier promising up to 6600 watts RMS of amplification capability. Yes, 6600 watts. It also claims sustained low-frequency output down to 5Hz, 2-ohm stability and bridgeable operation into 4-ohm loads.

If you look past the headline wattage numbers, the DSP4-6602’s purpose is clear. This is not a casual multi-room amplifier or a neat little cinema add-on, but a high-current workhorse built for ASCENDO’s larger infrasonic and high-output subwoofer systems, where control, extension and reliability all need to hold up through demanding low-frequency effects and room-shaking cinema dynamics.

ASCENDO says the amplifier’s frequency response is typically ±1.0dB from 5Hz to 20kHz at 10 per cent rated power into 8 ohms. Rated output is listed at 4 x 650W into 8 ohms, 4 x 1150W into 4 ohms, and 4 x 1650W into 2 ohms. In bridged mode, the DSP4-6602 is rated at 2 x 2200W into 8 ohms or 2 x 3330W into 4 ohms.

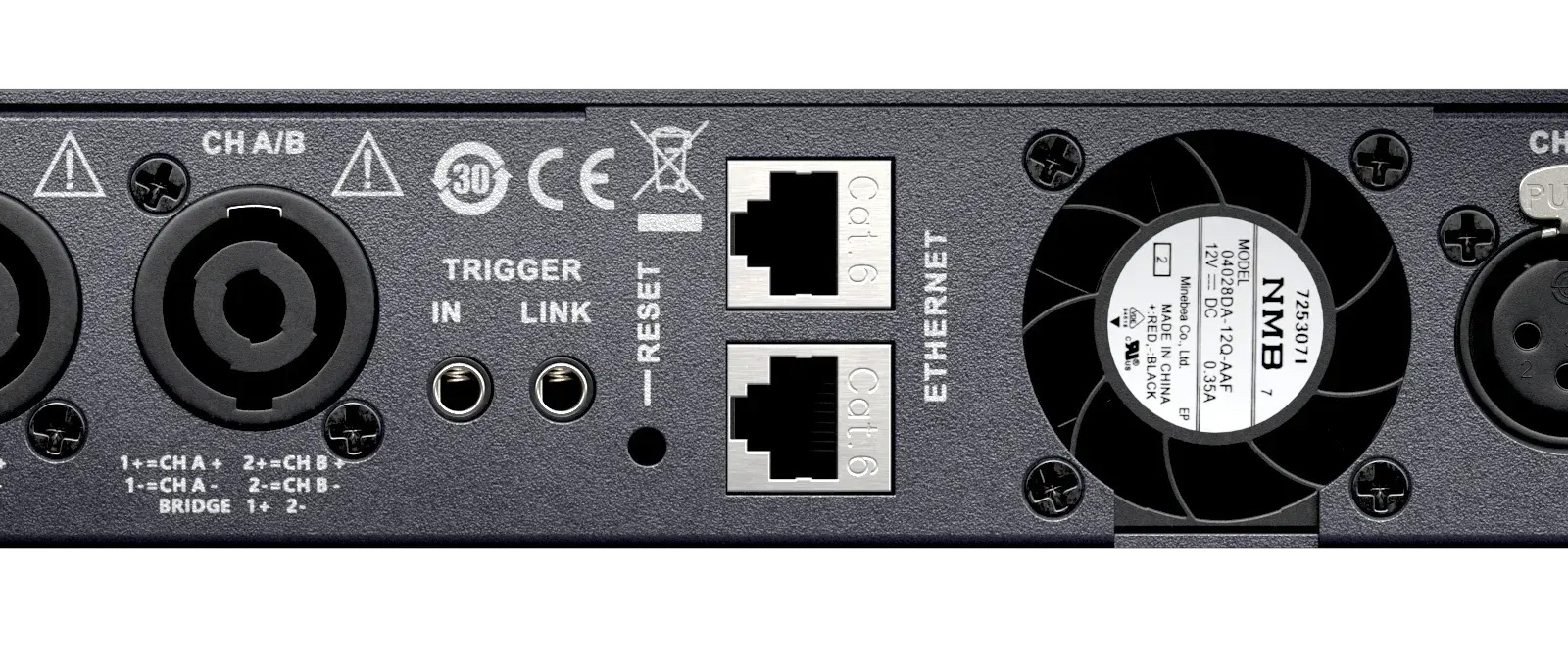

For installers, ASCENDO’s focus is not just on output, but on making that output easier to live with in a residential cinema. The DSP4-6602 is designed to deliver pro-level power without the rougher edges that can come with professional amplification in the home, adding low-noise cooling, selectable 12V trigger input logic, trigger output, configurable auto-standby and Ethernet-based multi-amplifier control.

Geoffrey Heinzel, co-managing partner of ASCENDO, commented on the latest release saying:

The DSP4-6602 has both the brute-force low-frequency performance and residential refinement that today’s high-end cinemas require. This amplifier gives integrators and designers a solution capable of handling demanding subwoofer systems without the compromises typically associated with professional amplification at this level.

The amplifier uses a low-impedance, high-current design, with an internal switching power supply incorporating active power factor correction and soft-switching technology. ASCENDO also notes that each amplifier includes integrated DSP, giving installers control over routing, delay, EQ, filters, level, mute, polarity and limiting functions.

According to published specifications, DSP features include input delay per channel up to 100ms, output delay up to 20ms in 0.01ms steps, 4 x 4 audio routing and mixing, eight-section input and output parametric EQ, high-pass and low-pass filters, FIR filters and configurable voltage limiting. Dante network audio functionality is also available on Dante-enabled models.

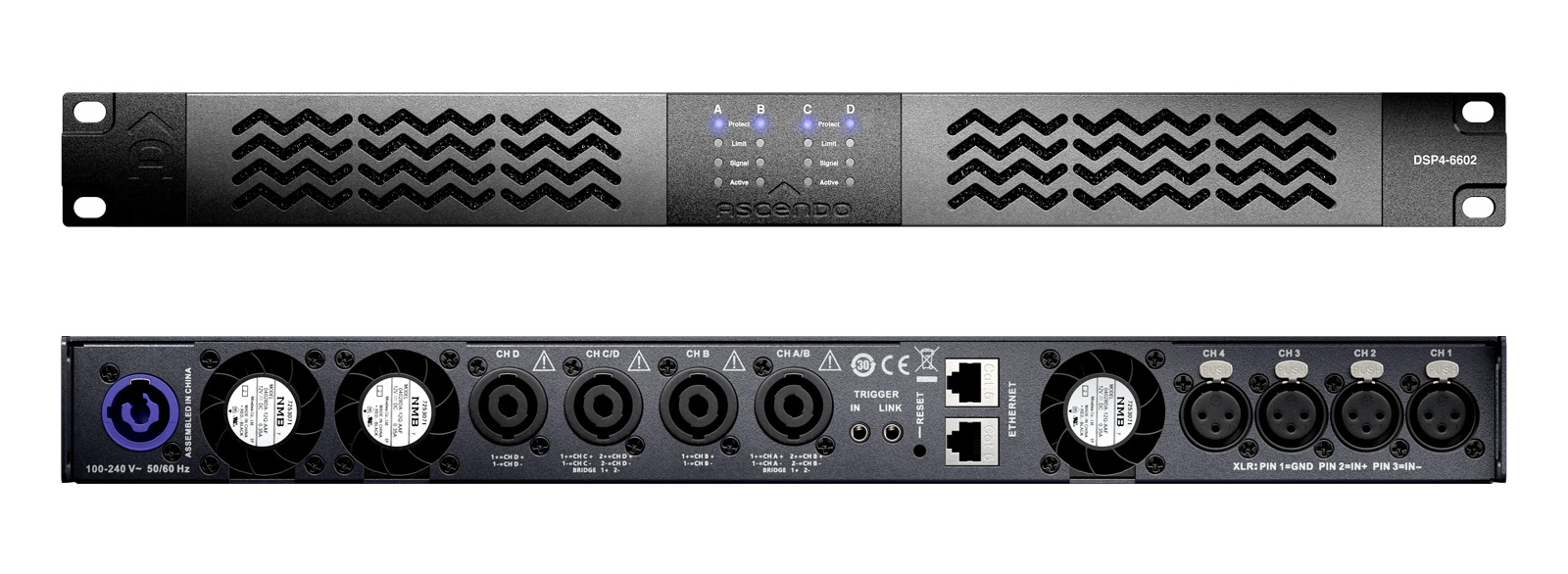

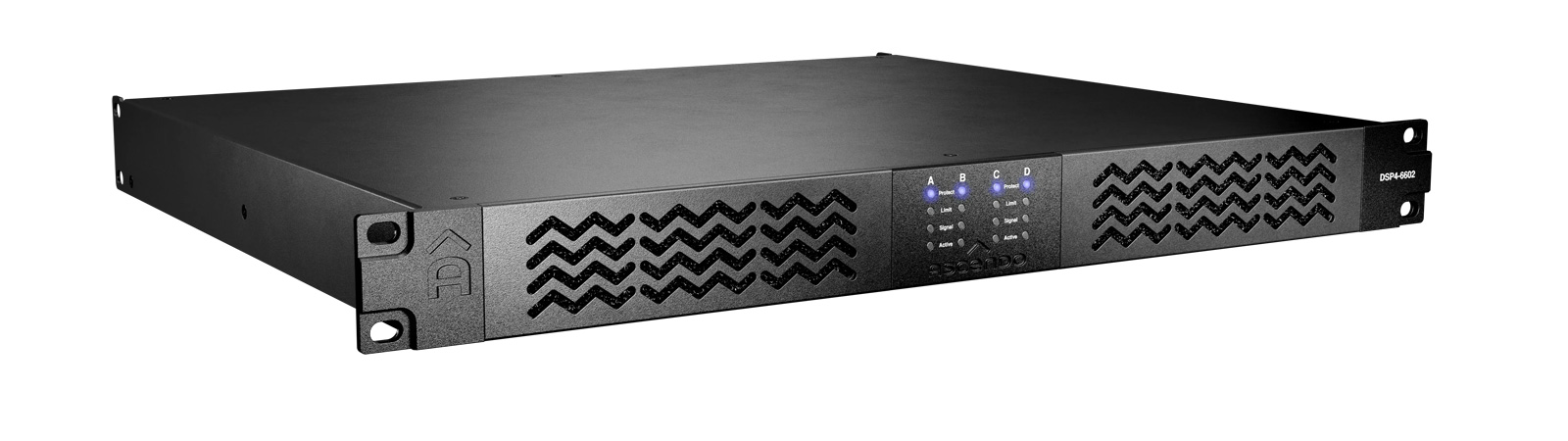

The DSP4-6602 is housed in a 19-inch rack-friendly chassis measuring 483 x 45 x 376mm and weighing 9kg. ASCENDO positions it for use either as a standalone flagship amplifier or as part of a larger rack-based immersive cinema installation. Regional pricing is expected to be confirmed shortly, and we’ll update the story as more information becomes available.

For more information visit Ascendo Immersive Audio
