SOLD: RELIST: Price drop SCHIIT AUDIO GUNGNIR MULTIBIT A2 GEN 5 USB DAC

[Ehrmantraut]

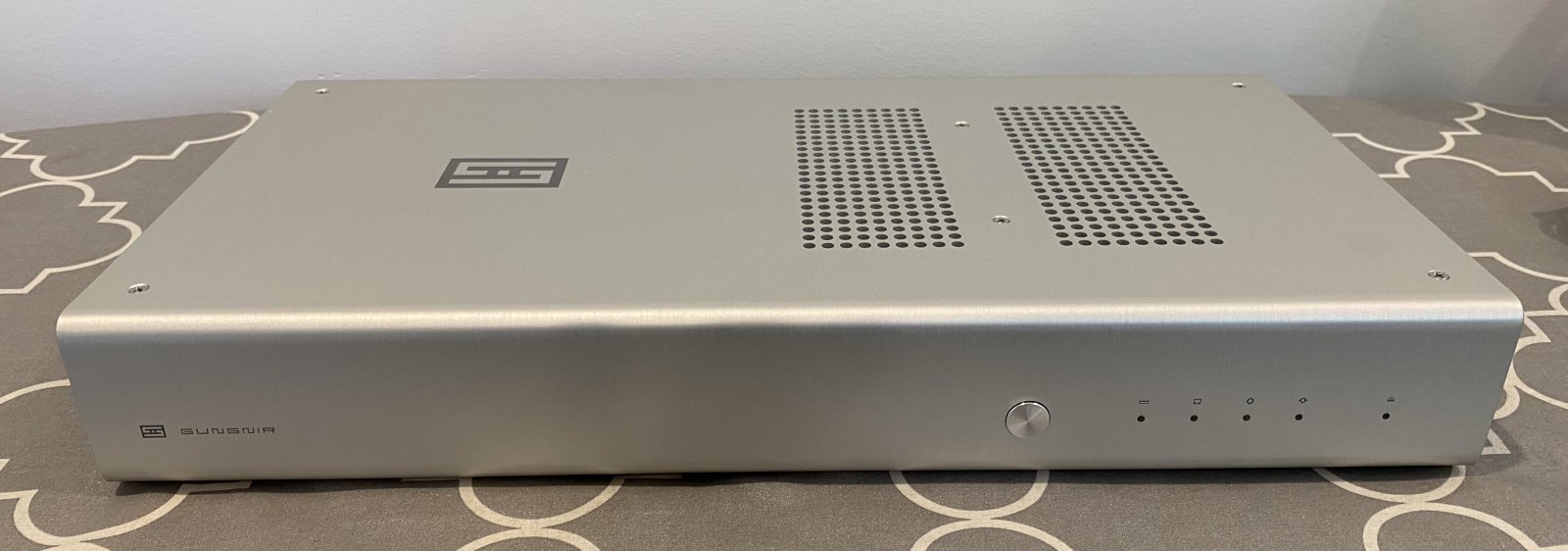

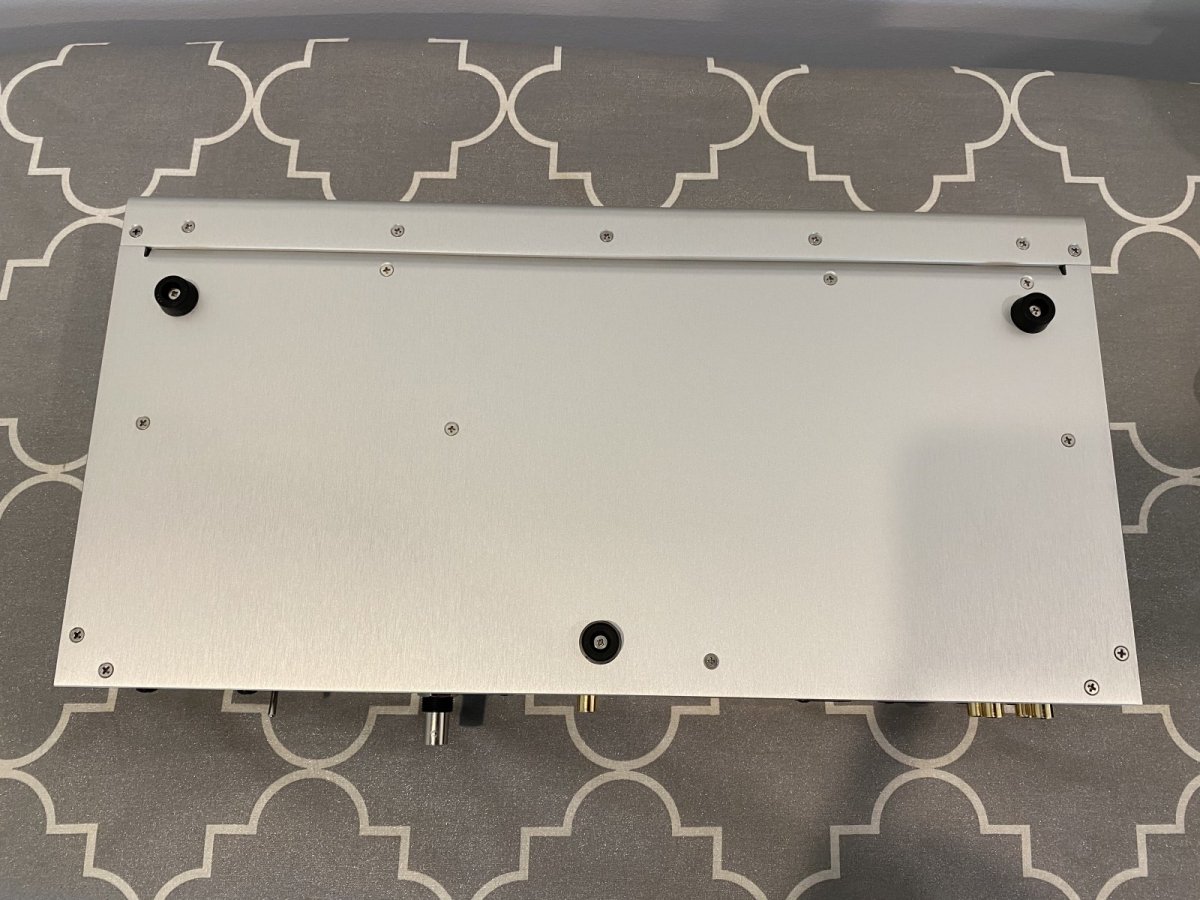

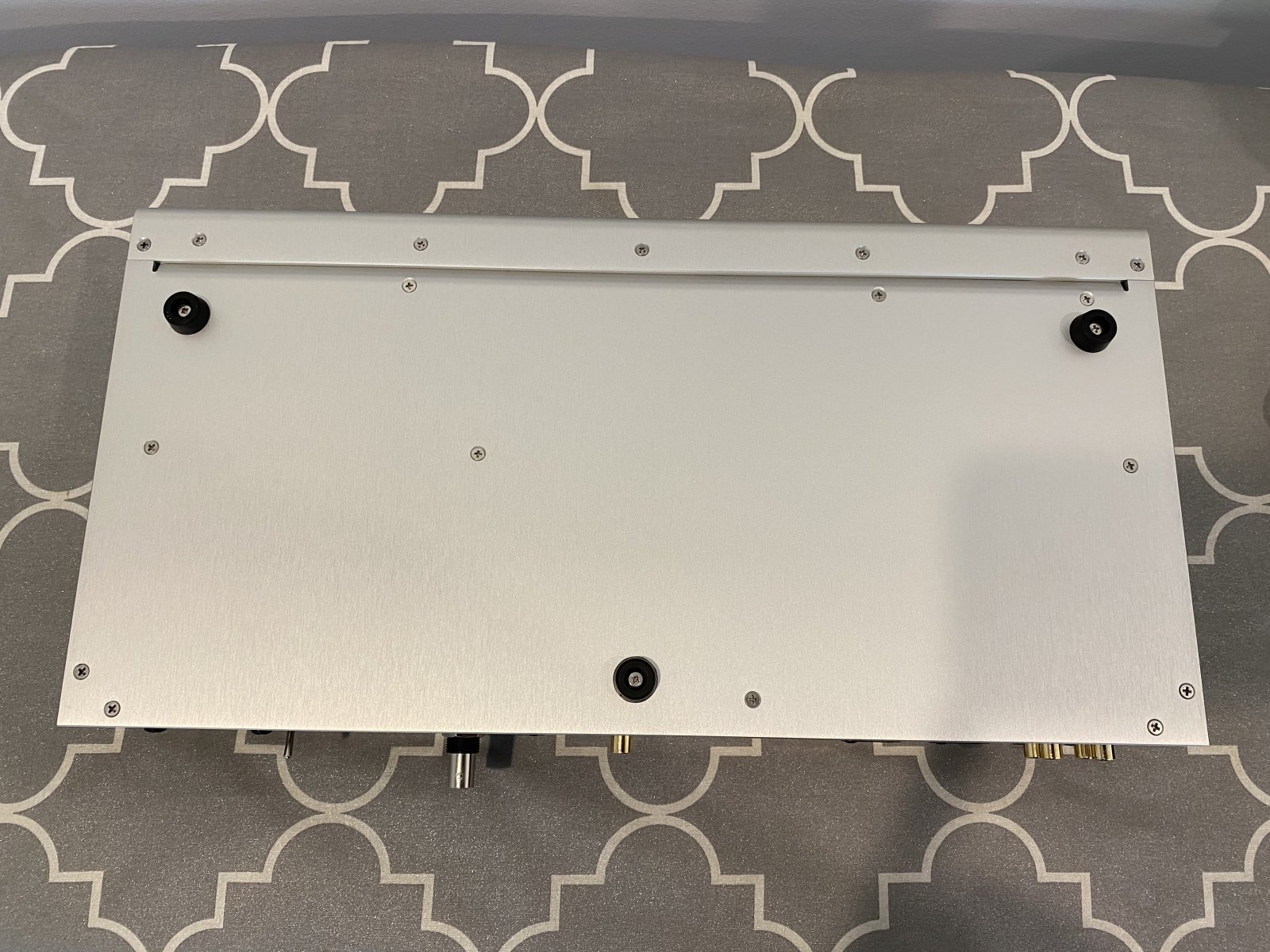

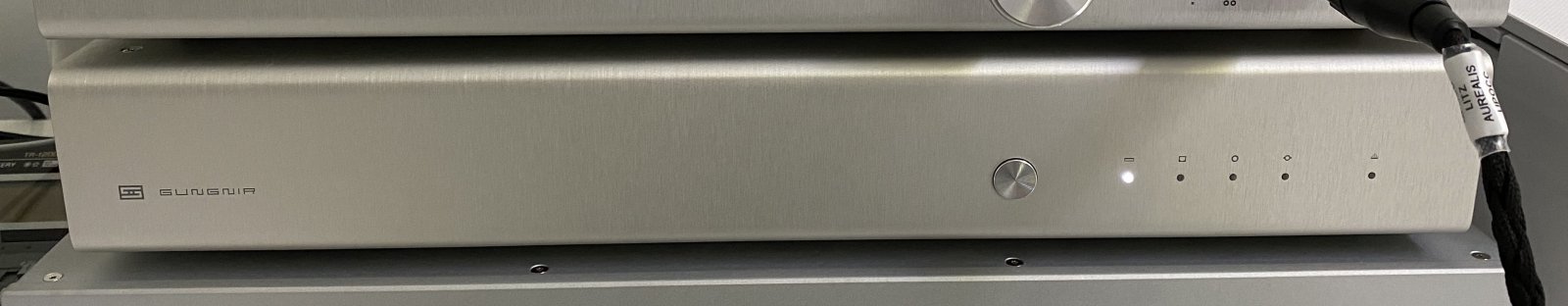

Near New Multibit Gen 5 USB Gumby in excellent condition - AUS Stock - remainder of 5 yr warranty - serious offers considered

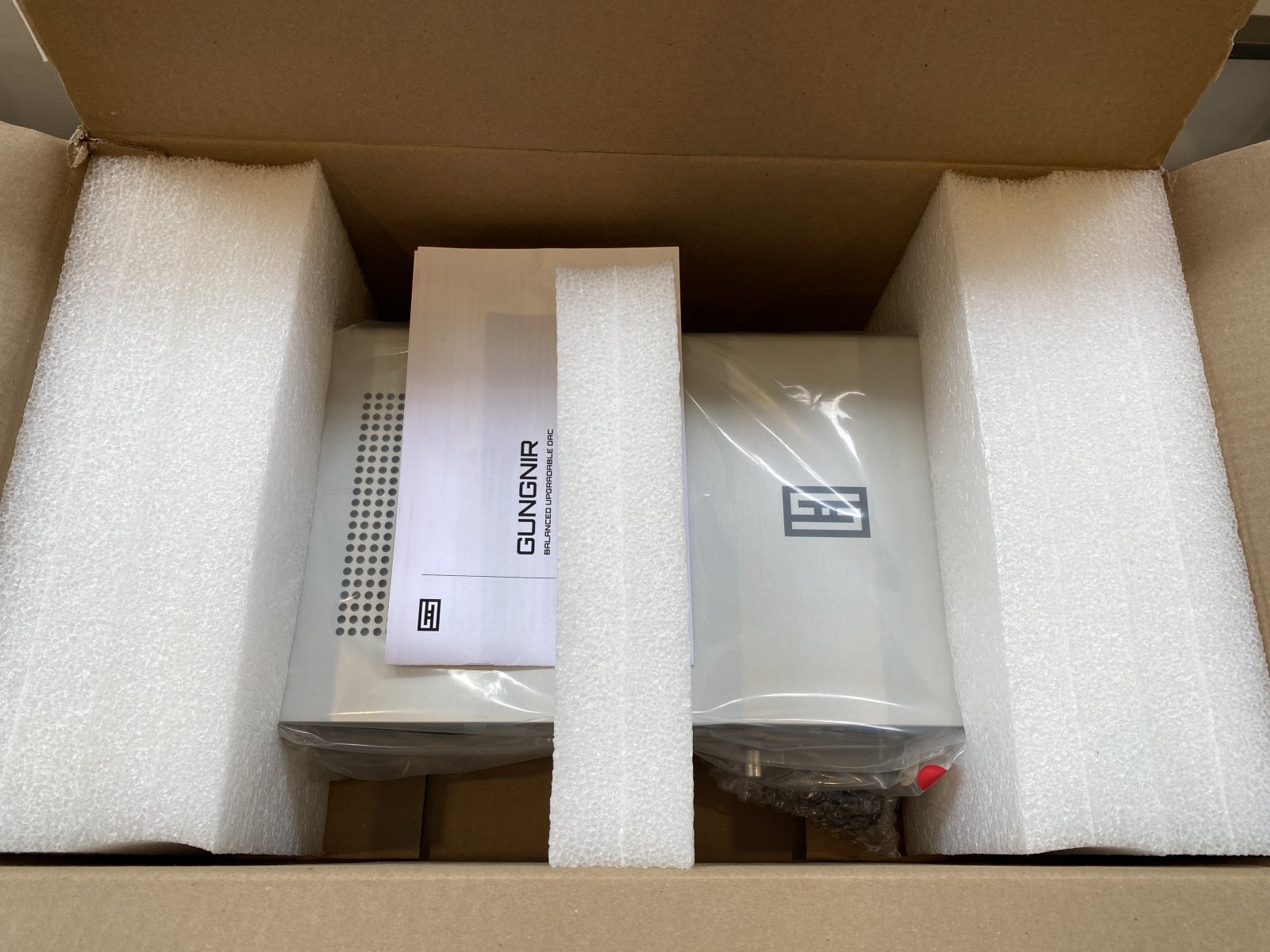

FREE SHIPPING in original packaging

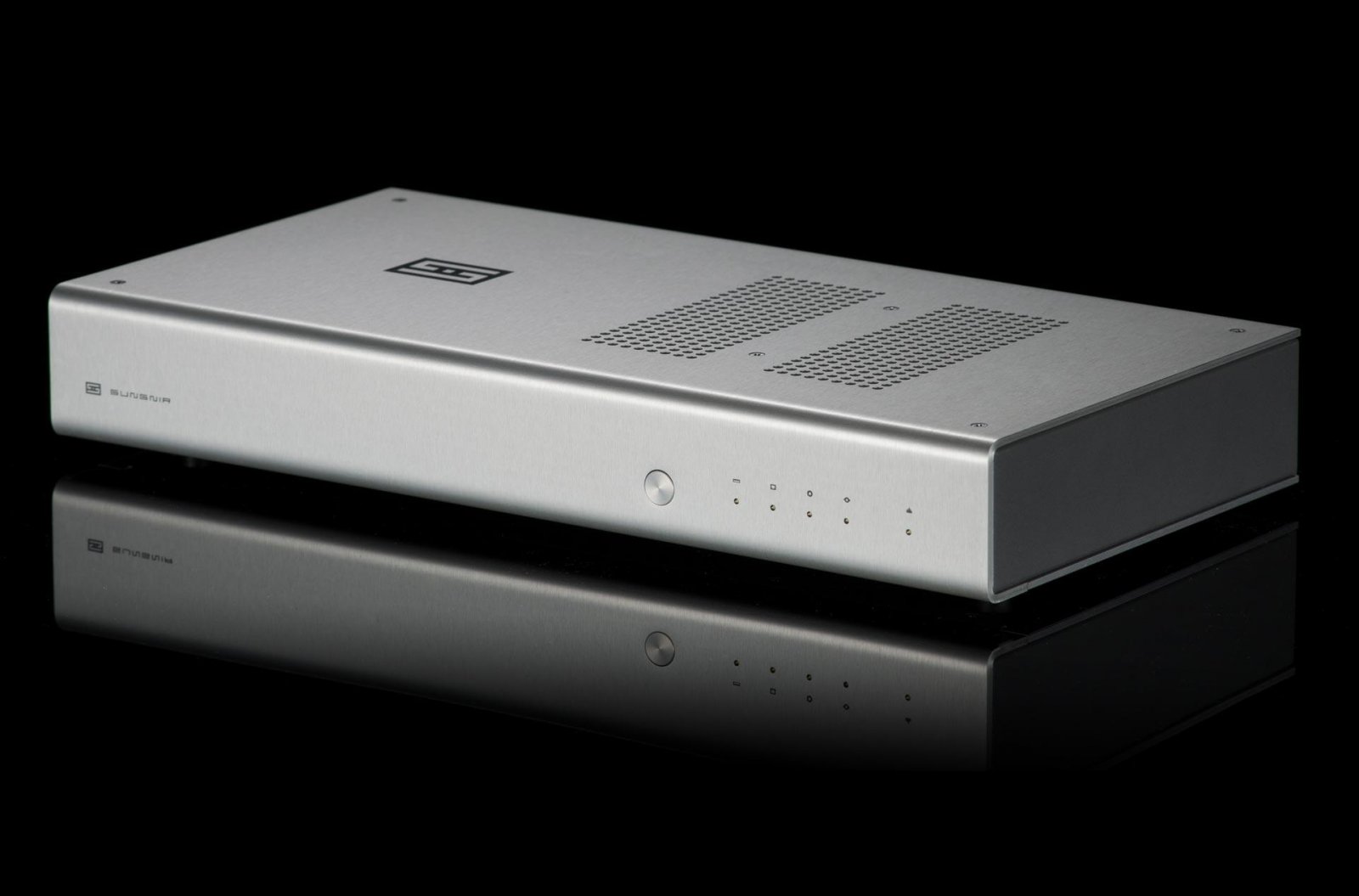

Gungnir: Formidable Performance

Choose Gungnir Multibit, and you get the same proprietary closed-form DSP-based digital filter as Yggdrasil, coupled to four precision Analog Devices AD5781BRUZ digital to analog converters for true hardware balancing and 19 effective bits of resolution. The analog section is completed with discrete JFET buffers and summers, the same as Yggdrasil.

Adapticlock™: Unique Clock Analysis and Regeneration

Both versions of Gungnir include our proprietary Adapticlock system, which provides for both exceptional jitter performance and rock-solid, glitch-free connectivity. Adapticlock analyzes the incoming signal quality and automatically routes it to the best clock regeneration system—either VCXO or VCO-based. And, it does all of this without altering the bit depth or sample rate of your original music.



Gungnir Multibit

D/A Conversion IC: Analog Devices AD5781BRUZ x 4 (2 per channel, hardware balanced configuration)
Digital Filter: proprietary Schiit bitperfect closed-form digital filter implemented on Analog Devices SHARC DSP processor
Analog Stages: Fully discrete JFET buffers for balanced output and discrete JFET summing stages for single-ended output, direct coupled throughout

Frequency Response, Analog Stage: 20Hz-20Khz, +/-0.1dB, 1Hz-200KHz, -1dB
Maximum Output: 4.0V RMS (balanced), 2.0V RMS (single-ended)

THD: Less than 0.005%, 20Hz-20KHz, at full output
IMD: <0.004%, CCIR
SNR: > 115dB, referenced to 2V RMS

All Gungnirs

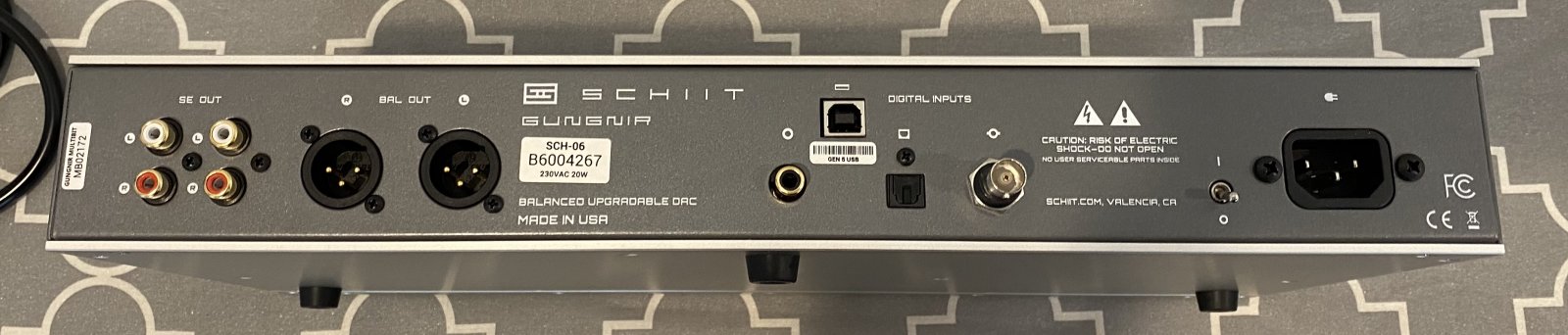

Inputs: Coaxial RCA SPDIF, BNC SPDIF, Optical SPDIF, USB
Input Capability: up to 24/192 for all inputs
Input Receiver, SPDIF: AKM 4313
Input Receiver, USB: C-Media CM6631A

Output: One pair XLR balanced and two pairs RCA single-ended
Output Impedance: 75 ohms

Clock Management: Bitperfect clock management at all native sample rates via Adapticlock analysis and VCXO/VCO regeneration, plus asynchronous USB Gen 2 module

Power supply: two transformers (one for digital supplies, one for analog supplies) with 8 stages of regulation, including separate local supplies for critical digital and analog sections.

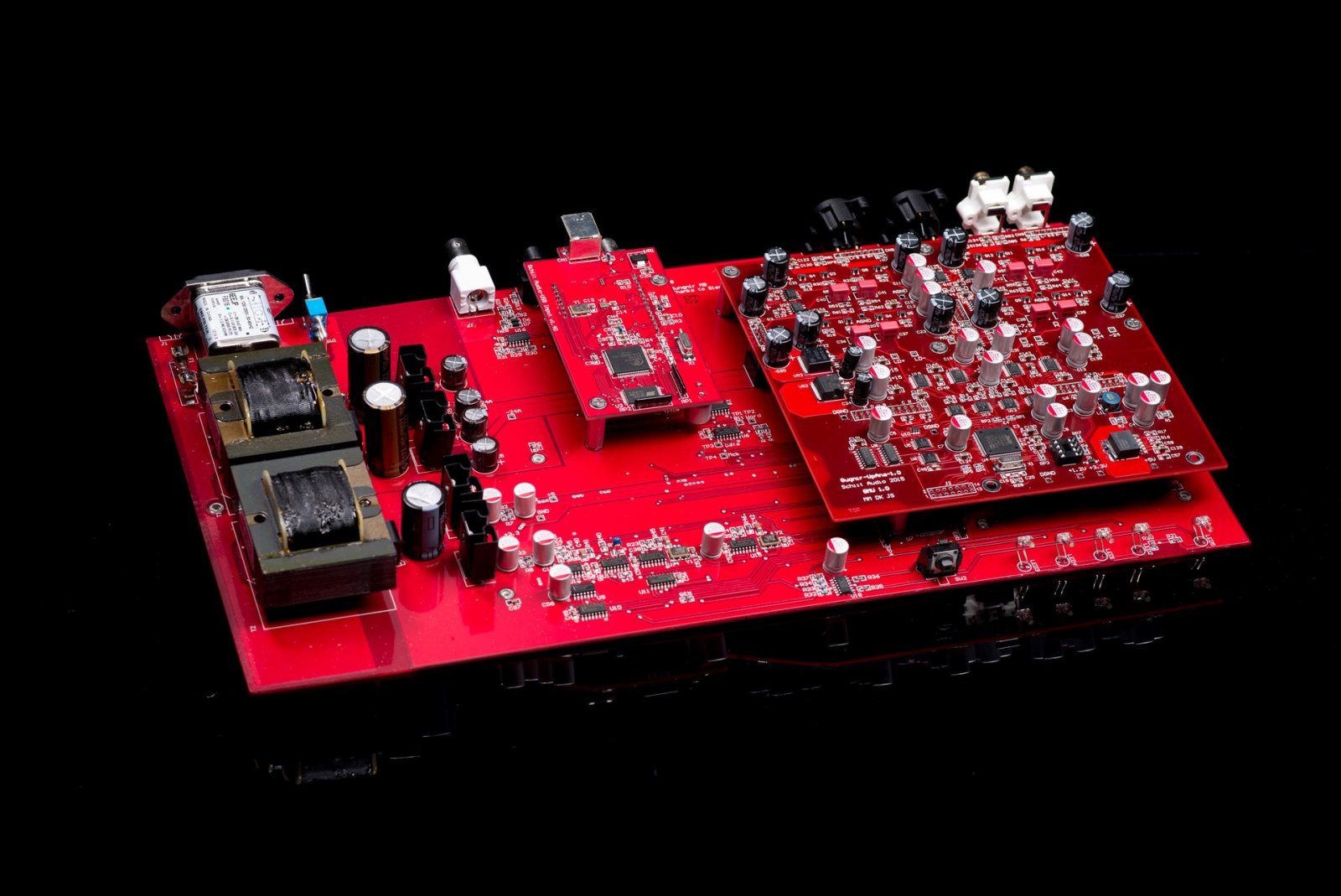

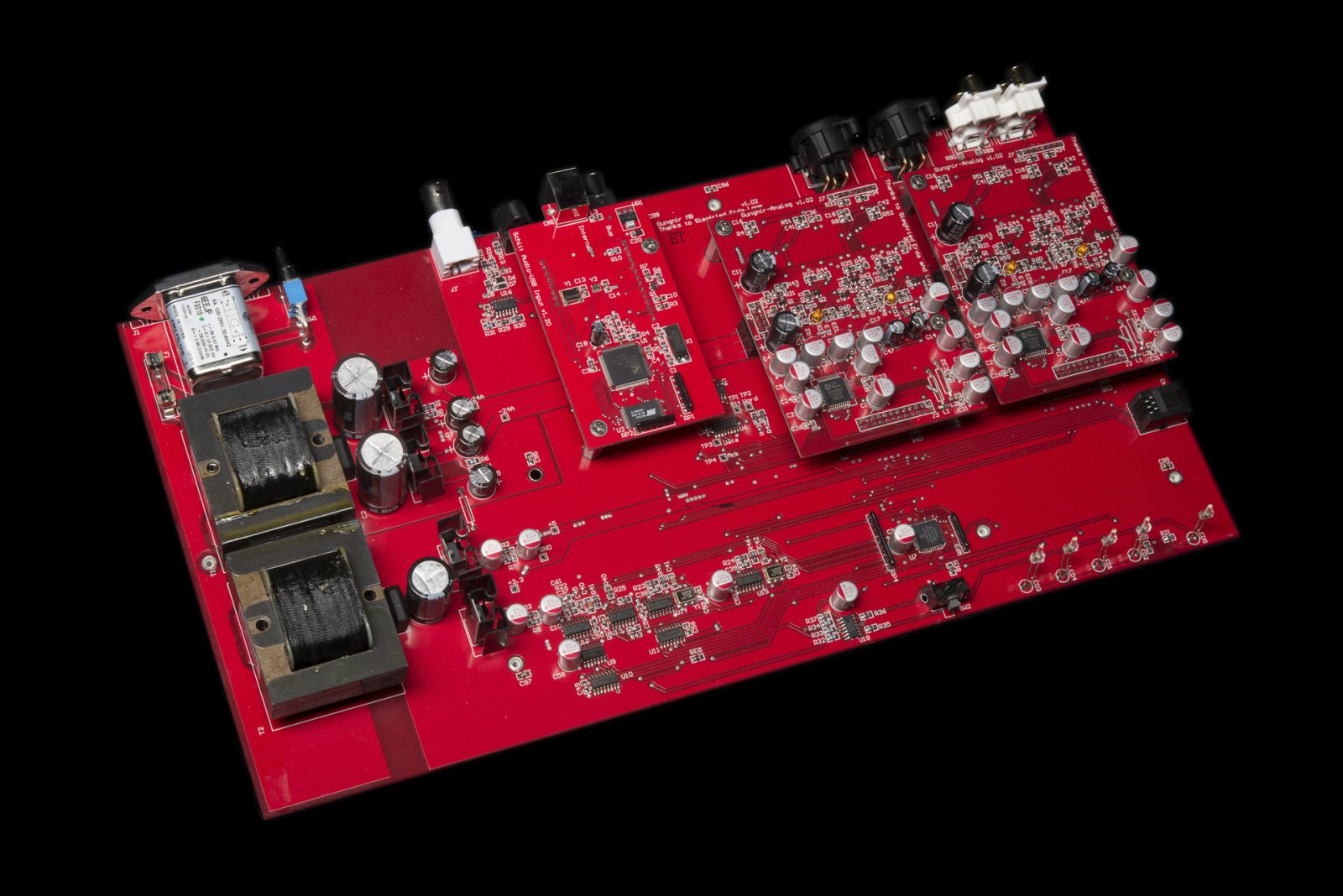

Upgradability: Separate, modular USB Input Card and DAC/Analog Cards are snap-in replaceable.

Power Consumption: 20W

Size: 16 x 8.75” x 2.25”

Weight: 11 lbs
