Nakamichi 630 FM Tuner Pre Amplifier

Further Information Opinions & Reviews Market Pricing

Discover the Nakamichi 630 at Len Wallis Audio in Lane Cove.

Legendary 600-series FM tuner and control preamplifier combining exceptional broadcast reception with high-fidelity analogue amplification and versatile inputs.

Key Features

Integrated FM Tuner & Preamp: Combines precise radio tuning with a flexible control amplifier in one elegant unit.
Selectable Phono Sensitivity: Adjustable 1 mV, 2 mV, or 5 mV for MM cartridges with excellent overload margin.
Ultra-Low Distortion: THD ≤0.003% (phono) and ≤0.004% (line) for transparent, uncoloured signal path.
High SNR Performance: Up to 102 dB on line inputs and 80 dB on phono for silent backgrounds and detail.
Advanced FM Selectivity: Narrow mode ≥80 dB and Dolby NR for clean, interference-free stereo reception.

The Nakamichi 630 is a revered high-end FM tuner preamplifier from the golden era of analogue audio, celebrated for its superb broadcast quality and refined preamp section.

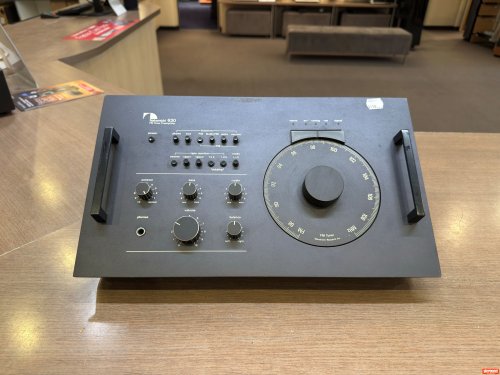

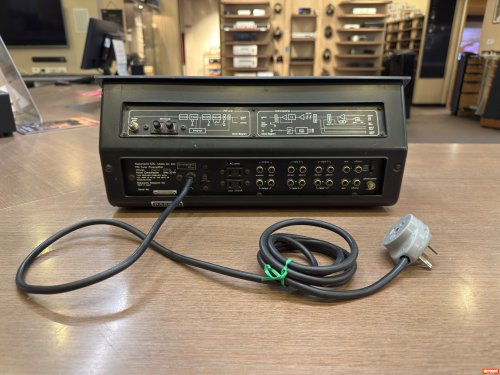

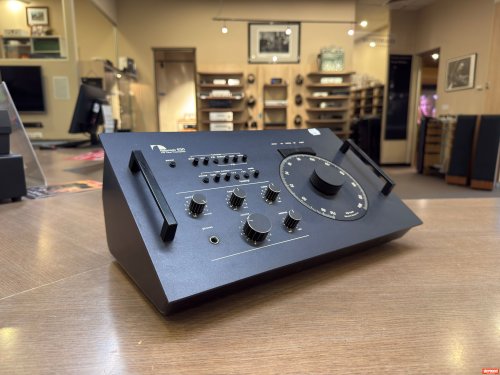

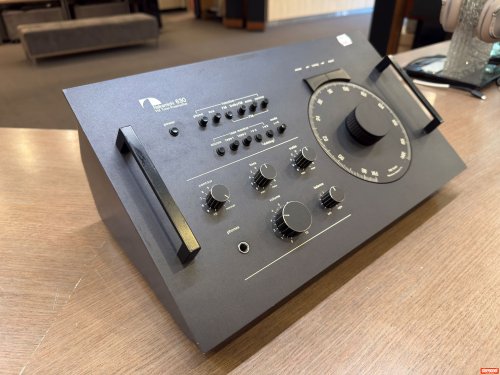

This pre-owned unit is in great condition for its age (circa 1977–1979), complete with all accessories, manuals, and original packaging, finished in classic black.

With outstanding signal-to-noise ratio, precise RIAA equalisation, and advanced FM circuitry including Dolby NR, the 630 tuner preamplifier delivers effortless radio listening and pure analogue amplification—preserving every nuance from vinyl or broadcast sources.

Visit our Lane Cove showroom and experience the timeless elegance of the Nakamichi 630.

Technical Specifications

Product Type: Pre-owned
Type: FM tuner control amplifier (preamplifier with built-in FM tuner)
Phono Input Sensitivity/Impedance: 1 mV, 2 mV, or 5 mV / 100 kΩ (selectable)
Line Input Sensitivity/Impedance: 100 mV / 50 kΩ (Aux, Tape mon 1/2)
Phono Maximum Input Level: 250 mV (1 kHz, at 5 mV setting)
Pre-out Output Level/Impedance: 1 V / 500 Ω (load 10 kΩ)
Maximum Pre-out Output: 5 V / 50 kΩ
Headphone Output: 40 mV / 4.5 Ω (load 8 Ω), max 300 mW / 8 Ω
Frequency Response (Phono RIAA): 30 Hz – 15 kHz ±0.3 dB
Frequency Response (Line): 20 Hz – 50 kHz +0 / –1.5 dB
Signal-to-Noise Ratio (Phono): 80 dB or better (IHF-A)
Signal-to-Noise Ratio (Line): 102 dB or better (IHF-A)
THD (Phono): ≤0.003% (≤10 kHz, output 2 V)
THD (Line): ≤0.004% (≤10 kHz, output 2 V)
FM Receiving Frequency: 76 MHz – 90 MHz
FM Practical Sensitivity: 3 μV (12.5 dBf, 300 Ω)
FM Stereo Separation (Normal): ≥50 dB (1 kHz), ≥35 dB (10 kHz)
FM Effective Selectivity (Narrow): ≥80 dB
Dimensions (W×H×D): 400 × 170 × 237 mm
Weight: Approx. 7 kg
Finish: Black

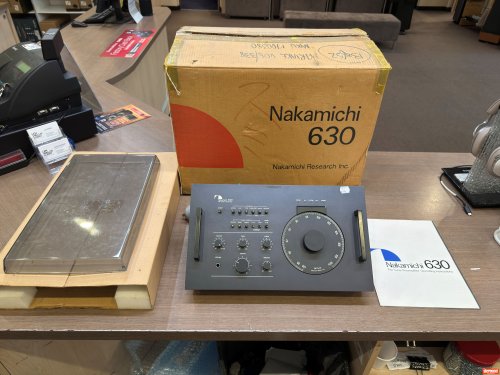

Condition: Great for age (circa 1977–1979), includes all accessories, manuals, and original packaging

WARRANTY INFORMATION (Commercial Seller)

The item represented is being sold by a Commercial Member. This means they have certain legal requirements when selling new and second-hand goods, and must provide a statuatory warranty under Consumer Law applicable to their location. These requirements may differ depending on their region, so discuss these entitlements with the Seller prior to purchase.

This content has been generated using AI analysis. While we strive to ensure accuracy and quality, AI-generated material may occasionally contain errors or omissions. All information should be independently verified, and opinions expressed do not necessarily reflect those of the publishers or editors.

The fair market price for a Nakamichi 630 FM Tuner Pre Amplifier in AUD is approximately $1,000–$1,500 for refurbished or very good used condition units, based on recent USD listings converted at current exchange rates (around 1 USD ≈ 1.50 AUD).

- Typical price range: $1,000–$1,200 AUD for standard used/very good condition; $1,300–$1,500 AUD for professionally refurbished units with servicing (e.g., recapping, cleaning, and full functional testing).
- Condition variations:
| Condition | Estimated AUD Range | Notes |
|--------------------|---------------------|-------|
| Used/Very Good | $1,000–$1,200 | Cosmetic wear but fully functional; e.g., Reverb listing at ~$1,080 AUD equivalent. |
| Refurbished | $1,300–$1,500 | Serviced to like-new performance; higher due to restoration costs. |
| New/Original Stock| Not available | Vintage 1970s item; no new stock exists. |

Key factors affecting value:
- Servicing history: Units with recent recap, cleaning, and certification command 20–30% premiums due to reliability in aging electronics.
- Cosmetics and originality: Inclusion of dust cover, cables, or original packaging adds 10–15%; scratches or missing parts reduce value.
- Market rarity: Low supply of working Nakamichi 600-series gear drives prices; demand from collectors boosts value.
- Regional/location effects: US-centric listings dominate; Australian prices may add 10–20% for shipping/import, though local HiFiShark equivalents align closely.
- Bundling: Often sold in systems (e.g., with 620 amp), inflating standalone value indirectly.

Prices reflect 2026 USD data; actual sales may vary with condition verification and platform fees.
