Nakamichi Nakamichi 630 FM Tuner Pre Amplifier

Further Information Opinions & Reviews Market Pricing

Discover the Nakamichi 630 at Len Wallis Audio in Lane Cove.

Legendary 600-series FM tuner and control preamplifier combining exceptional broadcast reception with high-fidelity analogue amplification and versatile inputs.

Key Features

Integrated FM Tuner & Preamp: Combines precise radio tuning with a flexible control amplifier in one elegant unit.
Selectable Phono Sensitivity: Adjustable 1 mV, 2 mV, or 5 mV for MM cartridges with excellent overload margin.
Ultra-Low Distortion: THD ≤0.003% (phono) and ≤0.004% (line) for transparent, uncoloured signal path.
High SNR Performance: Up to 102 dB on line inputs and 80 dB on phono for silent backgrounds and detail.
Advanced FM Selectivity: Narrow mode ≥80 dB and Dolby NR for clean, interference-free stereo reception.

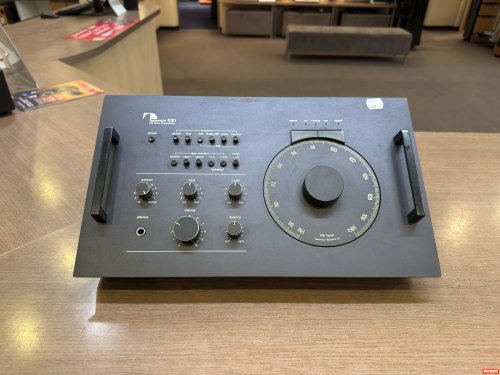

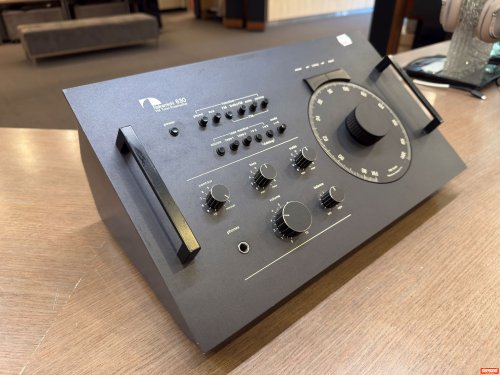

The Nakamichi 630 is a revered high-end FM tuner preamplifier from the golden era of analogue audio, celebrated for its superb broadcast quality and refined preamp section.

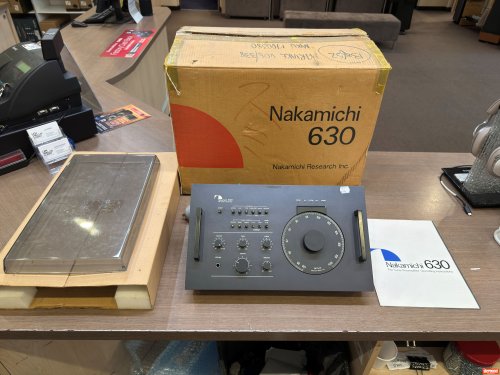

This pre-owned unit is in great condition for its age (circa 1977–1979), complete with all accessories, manuals, and original packaging, finished in classic black.

With outstanding signal-to-noise ratio, precise RIAA equalisation, and advanced FM circuitry including Dolby NR, the 630 tuner preamplifier delivers effortless radio listening and pure analogue amplification—preserving every nuance from vinyl or broadcast sources.

Visit our Lane Cove showroom and experience the timeless elegance of the Nakamichi 630.

Technical Specifications

Product Type: Pre-owned
Type: FM tuner control amplifier (preamplifier with built-in FM tuner)
Phono Input Sensitivity/Impedance: 1 mV, 2 mV, or 5 mV / 100 kΩ (selectable)
Line Input Sensitivity/Impedance: 100 mV / 50 kΩ (Aux, Tape mon 1/2)
Phono Maximum Input Level: 250 mV (1 kHz, at 5 mV setting)
Pre-out Output Level/Impedance: 1 V / 500 Ω (load 10 kΩ)
Maximum Pre-out Output: 5 V / 50 kΩ
Headphone Output: 40 mV / 4.5 Ω (load 8 Ω), max 300 mW / 8 Ω
Frequency Response (Phono RIAA): 30 Hz – 15 kHz ±0.3 dB
Frequency Response (Line): 20 Hz – 50 kHz +0 / –1.5 dB
Signal-to-Noise Ratio (Phono): 80 dB or better (IHF-A)
Signal-to-Noise Ratio (Line): 102 dB or better (IHF-A)
THD (Phono): ≤0.003% (≤10 kHz, output 2 V)
THD (Line): ≤0.004% (≤10 kHz, output 2 V)
FM Receiving Frequency: 76 MHz – 90 MHz
FM Practical Sensitivity: 3 μV (12.5 dBf, 300 Ω)
FM Stereo Separation (Normal): ≥50 dB (1 kHz), ≥35 dB (10 kHz)
FM Effective Selectivity (Narrow): ≥80 dB
Dimensions (W×H×D): 400 × 170 × 237 mm
Weight: Approx. 7 kg
Finish: Black
Condition: Great for age (circa 1977–1979), includes all accessories, manuals, and original packaging

WARRANTY INFORMATION (Commercial Seller)

The item represented is being sold by a Commercial Member. This means they have certain legal requirements when selling new and second-hand goods, and must provide a statuatory warranty under Consumer Law applicable to their location. These requirements may differ depending on their region, so discuss these entitlements with the Seller prior to purchase.

This content has been generated using AI analysis. While we strive to ensure accuracy and quality, AI-generated material may occasionally contain errors or omissions. All information should be independently verified, and opinions expressed do not necessarily reflect those of the publishers or editors.

User reviews and community discussions praise the Nakamichi 630 FM Tuner Preamplifier for its excellent FM tuner performance and thoughtful design, though direct sound quality opinions from owners are limited in available sources.

### Sound Quality
- The FM tuner delivers exceptionally low distortion (0.05% mono/stereo in wide mode) and strong signal-pulling ability, with effortless, stable tuning and clear reception even on weak signals.
- Phono stage is highlighted as very good, with high sensitivity suitable for moving coil cartridges without extra gear, and clever tone/contour controls providing effective loudness compensation that avoids midrange interference.
- Preamplifier performance is described as audibly faultless in reviews, though community members note a lack of detailed owner feedback on its overall sound compared to the tuner.

### Build Quality
- Solid, rack-mountable construction with smooth, well-engineered controls, hand-wired front-end components, and high-quality details like flawless rear-panel labeling.
- Vintage appeal is strong, often called a "thing of beauty" for its tactile knobs and design, frequently restored with cleaning, recap, and part replacements to achieve like-new function.

### Reliability
- Prone to age-related issues like noisy controls, faulty tuning LEDs, and worn parts requiring restoration, as seen in repair projects and bulb replacements.
- Performs reliably post-refurbishment, with no drift reported even after extended use.

### Strengths
- Superior FM tuner sensitivity and quieting (e.g., 77 dB mono ultimate quieting).
- Versatile features like phono sensitivity switch, tape dubbing, and precise loudness contour.
- Aesthetic and ergonomic appeal draws enthusiasts.

### Weaknesses
- Limited preamp flexibility compared to separate units like the Nakamichi 610.
- High muting threshold (10 µV) and tuning light sensitivity may miss very weak signals.
- Requires maintenance due to vintage components.

### Overall Reputation
Vintage audio communities view it as a high-performing, fun collector's piece from Nakamichi's 600 series, valued for tuner excellence and phono stage over modern convenience, often compared favorably to items like the Quad 33. Sources emphasize its enduring appeal after servicing, but note sparse recent user sound tests.

The fair market price for a Nakamichi 630 FM Tuner Pre-Amplifier in AUD is approximately $1,000–$1,500 for refurbished or very good used condition units, based on recent USD listings converted at current exchange rates (around 1 USD ≈ 1.50 AUD).

- Refurbished/fully serviced units list at the higher end: $1,374 USD (~$2,060 AUD) on SpenCertified (very good cosmetic, works like new, with recap and cleaning), and $950 USD (~$1,425 AUD) paired with a 620 amp on The Turntable Store (meticulously serviced to factory specs).
- Used/very good condition listings trend lower: $719 USD (~$1,080 AUD) on Reverb (1973 model, very good condition).
- Prices vary significantly by condition—expect 20-50% less for unserviced or fair cosmetic/functional units (potentially $700–$1,000 AUD), as vintage gear from the 1970s often requires recap, cleaning, and part replacements to perform reliably.
- Key value factors include service history (refurbished units command premiums due to restored capacitors and low distortion specs like 0.004% THD), originality (e.g., dust cover, cables included), cosmetic state (scratches or oxidation reduce value), rarity as a Made-in-Japan 600-series component, and inclusion in systems like System One (which lists much higher at $3,999 USD but bundles extras).
- No new stock exists; all are vintage used/refurbished. Global aggregator sites like HifiShark show sporadic availability without fixed prices, and demand from collectors boosts values for well-maintained examples. AUD prices may fluctuate ±10% with shipping/import from US/UK sellers.
