CP1, its a masterpiece of design, with the shortest possible signal paths, with all unnecessary elements removed to improve sound quality and reliability. The OAD CP1 has eight discrete power supplies, four for each channel. There are no mechanical potentiometers and switches - source switching and volume is controlled by a colour touch screen. Input selection is made with high quality gold plated Swiss made relays, and only the selected input is connected all other inputs are isolated. The selected input is followed by a buffer amplifier and presents a benign load to signal sources. The volume control uses laser cut precision, low-noise and zero- induction resistors. It controls both volume and balance. Such is the quality of the resistors, that they were originally designed for the aerospace industry, The CP1 also uses these resistors in selected areas of the signal path as well as direct coupling to remove all capacitor colouration. This is the kind of component you will not find in just about any other hi-fi component.
There are inputs - 5 line stage
Probably the best kept secret in hi-end audio, Jon DeSensi has created something very special with his CP1 pre and UF1 power amplifiers. The degree which he has gone to create these world class amps is something that most manufacturers wouldn't consider. WIth a background in electrical engineering and consulting on large scale projects for government and industry, his experience and knowledge in designing and developing cutting edge electronics is unmatched in the Australian Hi-Fi industry. Having previously created one of the most popular DACs available internationally, and a range of amplifiers under the Musiclabs brand, he is now back with his latest creations.
CP1 Preamplifier Specifications: Line Stage Only
All Aircraft Grade Aluminium non magnetic chassis
Pure Silver RCA connectors
Line Level Inputs: 6
Overall Gain (dB): -63 to 9.7
Frequency Response (kHz): 0 - 650 -3dB @ 1.8VRMS Output
Maximum Output: >20V RMS
Signal to Noise Ratio (dB): >110dB A-weighted input shorted
Weight: 7 kg (15.5 lbs)
Shipping Weight: 8.6 kg (19 lbs)
Dimensions (WxHxD mm): 438 x 126 x 353 (17.2” x 4.96” x 13.9”)

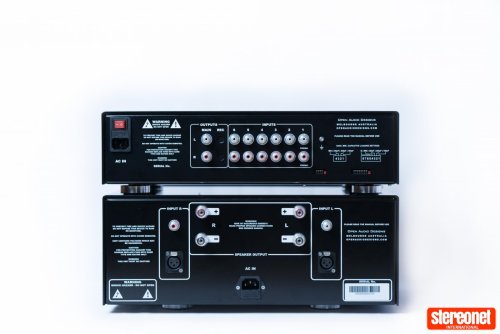

last 2 photos from web showing with POWER AMP ALSO FOR SALE !
NB THIS VERSION HAS NO PHONO STAGE.
The item being advertised is sold "as is", and no warranty should be assumed unless otherwise indicated and agreed between the Buyer and the Seller. Photos representing the item being advertised form part of the description unless otherwise specified.
