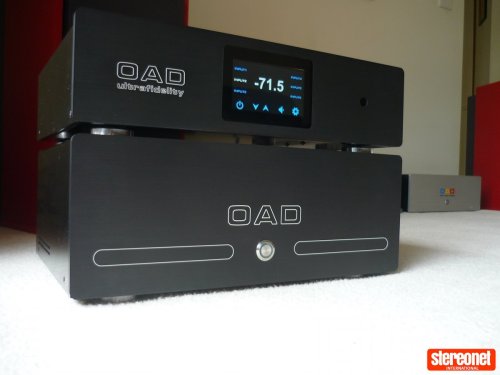

those in the know, this amplifier should need no introduction. Designed and built in Australia by Jon DeSensi of Music Labs fame, the UF1 is a hugely capable amplifier, designed to be able to drive complex loads with ease.
Huge capacitor power ensures heaps of reserve power for highly dynamic music.
From the OAD website:
The UF1 is extremely fast with ultra-bandwidth and has a high current capability. The amplifier copes gracefully with impedence dips to 4 Ohms and lower. As the load impedence of an amplifier is decreased to below 8 Ohms large signal non-linearities begin to appear. Unlike, crossover distortion, this large signal non-linearity is significantly dependent on the amplifier's output stage power transistors.
The UF1 utilizes the latest in transistor technology to deal with these significant distortions. The transistors used in the UF1 are in a different class from the more conventional transistors, in that, the current gain is completely maintained over its full power bandwidth. Correct utilization of these transistors minimizes not only the large signal non-linearities but significantly lowers crossover distortion.
The amplifier will come with a reset of the original three year warranty, in writing by Jon.
I have the complementary CP1 pre-amplifier for sale. see other Ad.
Specifications:
Latest State of the Art ThermalTrak Power transistors

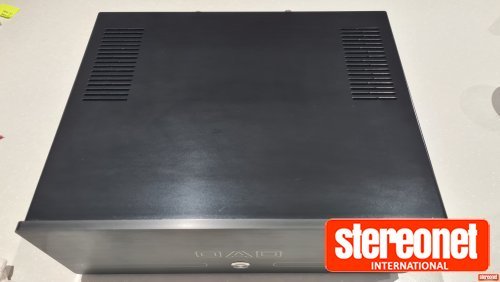

All Aircraft Grade Aluminium non magnetic chassis

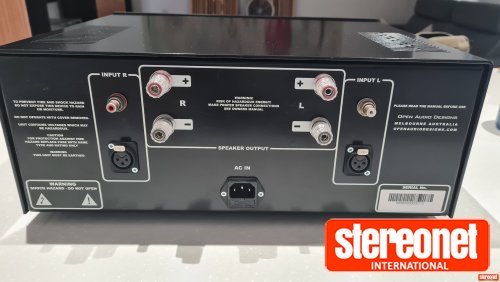

Pure Silver binding posts and RCA connectors
Class AB 200W (Class A 10W)
High Current design - Load invariant to 4 Ohms and will drive 2 Ohms easily.
Has the detail and control of the best Solid State as well as the musicality of the best tube amps etc. etc.
Low EMF Toroidal Transformer
Power output: 200W into 8 Ohms
Sensitivity: 2.4V
Input Impedance 2.3 kOhm
Damping Factor >500
Noise out: <-96 dBu (0-22kHz bandwidth RMS, Rs = 50R)
Voltage amplification 27 dB
Frequency response 0-100kHz +/-1dB
THD 0.005% at 1kHz (100kHz bandwidth)
Weight .................................. 15 kg
Shipping Weight .................. 24kg
Dimensions .......................... 178 x 438 x 365mm
(H x W x D)
Shipping Dimensions ........... 280 x 575 x 490mm
The item being advertised is sold "as is", and no warranty should be assumed unless otherwise indicated and agreed between the Buyer and the Seller. Photos representing the item being advertised form part of the description unless otherwise specified.
-
