SOLD: FS - SOtM tX-USBexp card


Recommended Posts

Item:  SOtM tX-USBexp card
Location:  Dulwich Hill, NSW (or Glebe, NSW)
Price:  $300 ($310 posted)
Item Condition: Excellent
Reason for selling: Moving on from a PC based music server, the temptation to endlessly tweak is taking me away from just listening to music.
Payment Method: Pickup - Cash, Paypal, COD Only
Extra Info:  If you've been dabbling in PC Audio or building a CAPS server then you will know what this is. Essential in isolating computer noise and adverse power influence when running to a USB DAC.



tX-USBexp is PCI express USB 3.0 host card that designed to enable the best USB audio performance.
  In order to implement high-performance audio features on PC equipped with PCI express slot, it needs to reduce the various noises inside of PC.
  For this purpose, tX-USBexp has noise filter circuit which could reduce the noises inside of PC affect to USB audio devices, and also use Ultralow noise voltage circuits and ultra-low-jitter oscillator circuit to reduce the noises causing the product itself.
  It is also equipped with an external power input terminal, so you can get the best audio performance once it is be connected the high-performance external power supply as the battery pack.

Product Specifications
- PCI express x1 Gen 2 interface
- Support super-speed, high-speed, full-speed, and low-speed

- Power input
   Select power source automatically (external first, internal).
   Internal power :
       IDE 4 pin PC power connector
       Input voltage : +12.0V(+0.5V, -0.5V)
   External power :
       Standard DC power Input jack
       Input voltage : +6.5V ~ 9Vdc
   Input current : 2.0A

- USB port power
   Output voltage : +5.0V(+0.5V, -0.25V)
   Recommend output current : 0.5A
   Over current protection : 1.5A at 20°C

- Operating invironment
   Operating temperature : 0°C ~ 30°C
   Storage temperature : -10°C ~ 50°C
   Operating & storage humidity : 10% ~ 90%

- OS support
   Windows 7 or higher version
   Linux

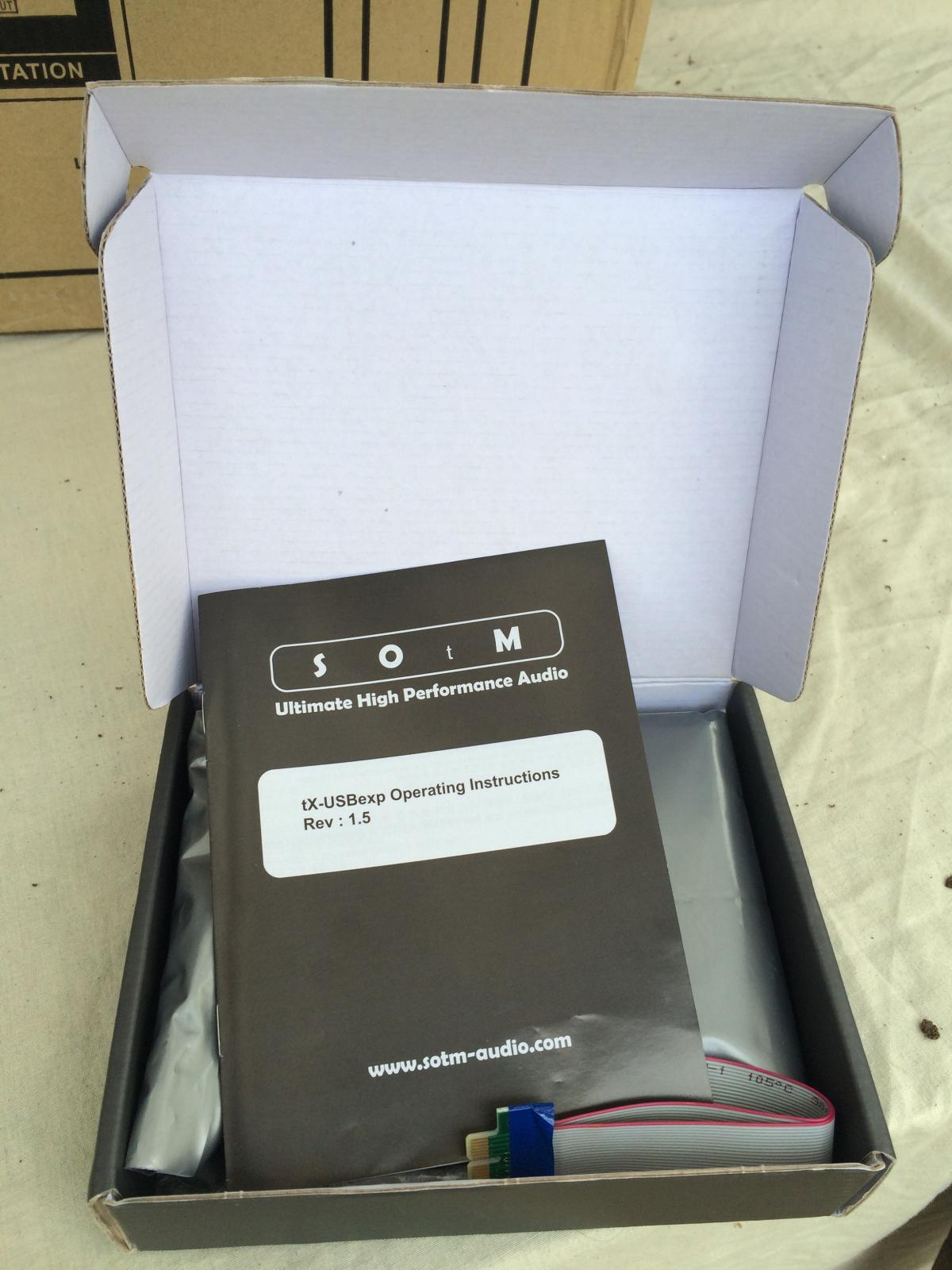

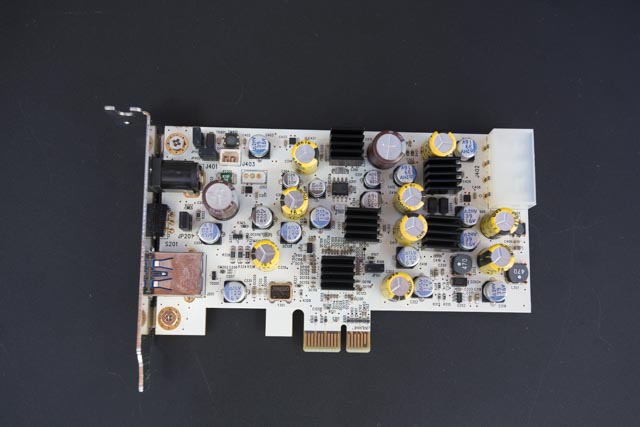

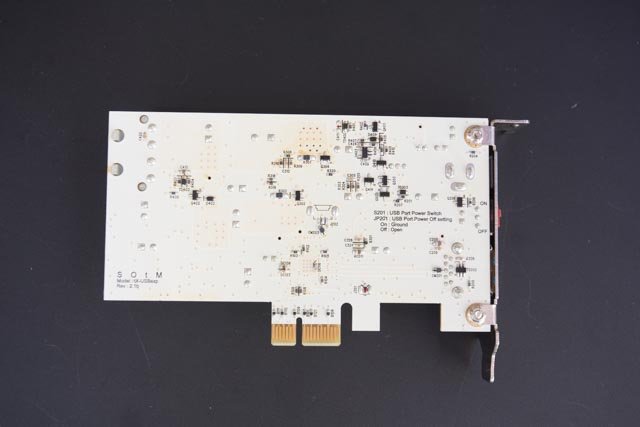

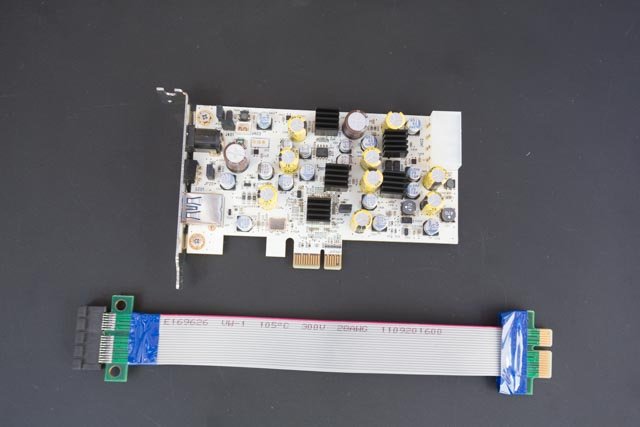

Pictures:

post-110549-0-44296600-1413708413_thumb.

post-110549-0-12995700-1413708418_thumb.

post-110549-0-84668900-1413708422_thumb.

post-110549-0-69663600-1413708446_thumb.
