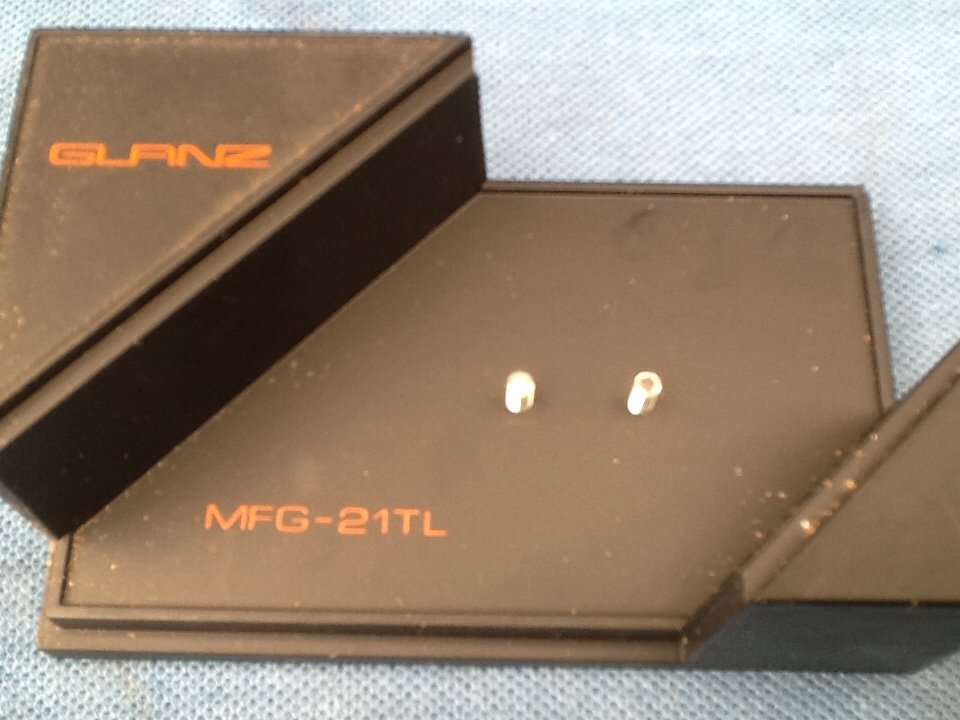

Guest Posted June 6, 2014 Posted June 6, 2014 Found this in the shed when cleaning up. No idea if it's worth anything. Probably not. Posted free if anyone's interested. Needle is missing. Text on cartridge: Jelco MC-14 Ikichawa Jewel co ltd Japan. The box and screwdriver might be of interest for novelty or display purposes?
Monkeyboi Posted June 6, 2014 Posted June 6, 2014 (edited) Here's some basic specifications for the Jelco MC-14 the cartridge if anyone needs to know. Type - Moving Magnet Output (1KHz 50 mm/sec) 3mV Freq Response 10Hz - 27kHz Recommended load Impedance 47k ohms L/R Separation 1kHz > 26dB L/R Balance 1kHz< 0.7dB Stylus Tip Spherical (15um) Cantilever Dynamic Compliance 22 x 10-6 cm/Dyne Tracking force 1.5 - 3.0g Cheers, Alan Edited June 6, 2014 by Monkeyboi 1
Guest Posted June 6, 2014 Posted June 6, 2014 (edited) Is that good? And thanks for posting the info by the way. Edited June 6, 2014 by Dirty_vinylpusher
Monkeyboi Posted June 6, 2014 Posted June 6, 2014 Is that good? And thanks for posting the info by the way. Entry level cartridge. Conical stylus tips are generally a bit forgiving when it comes to records with a less than spectacular playing surface as they tend to hide the surface noise (but not always). Frequency response to 27kHz may be a bit optimistic for a cartridge with a conical stylus but not impossible. Replacement styli are still available for this cartridge from http://www.turntableneedles.com for about US$12. Cheers, Alan
Guest Posted June 6, 2014 Posted June 6, 2014 Ok lock this thread. It will be heading to its new home on Monday.
