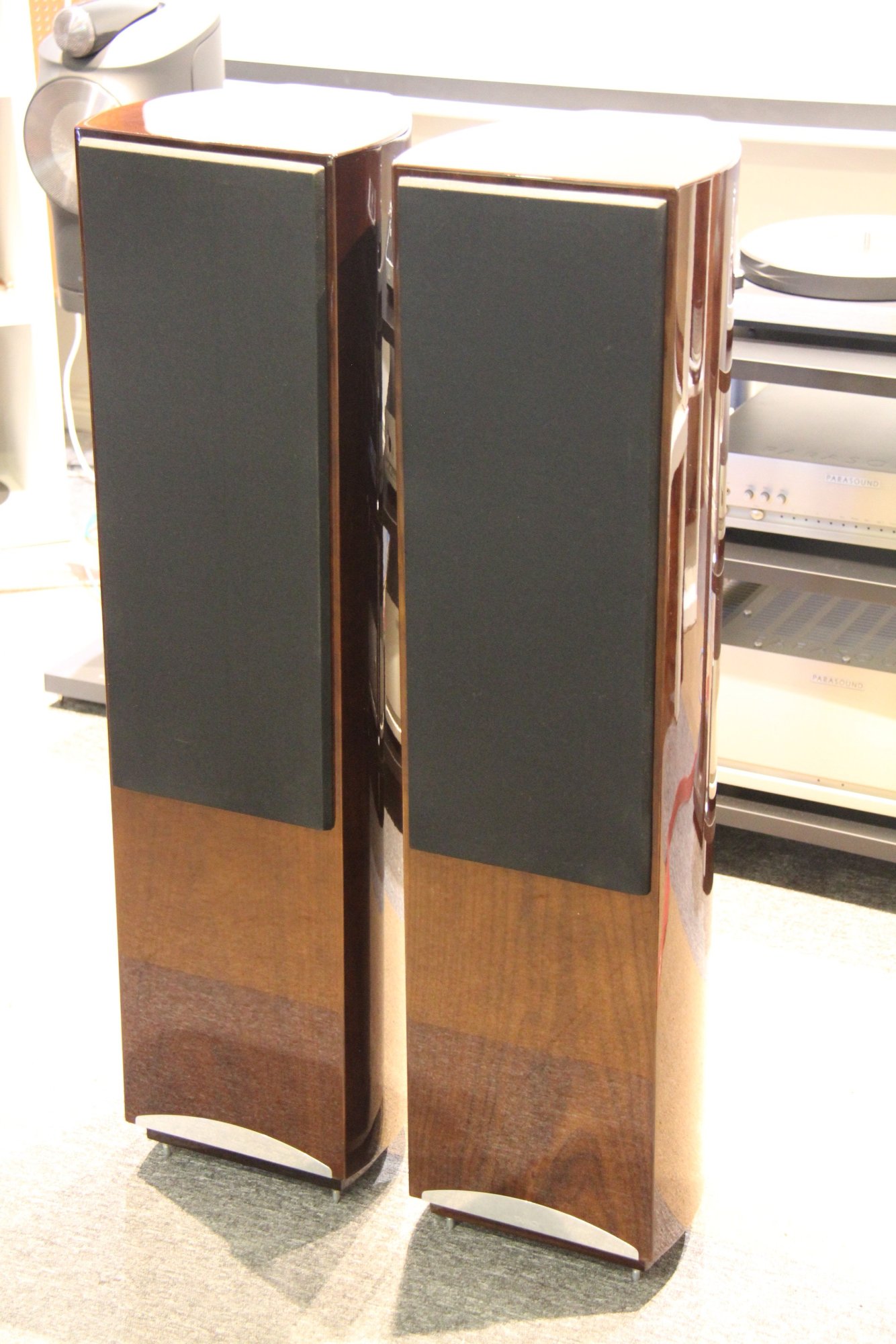

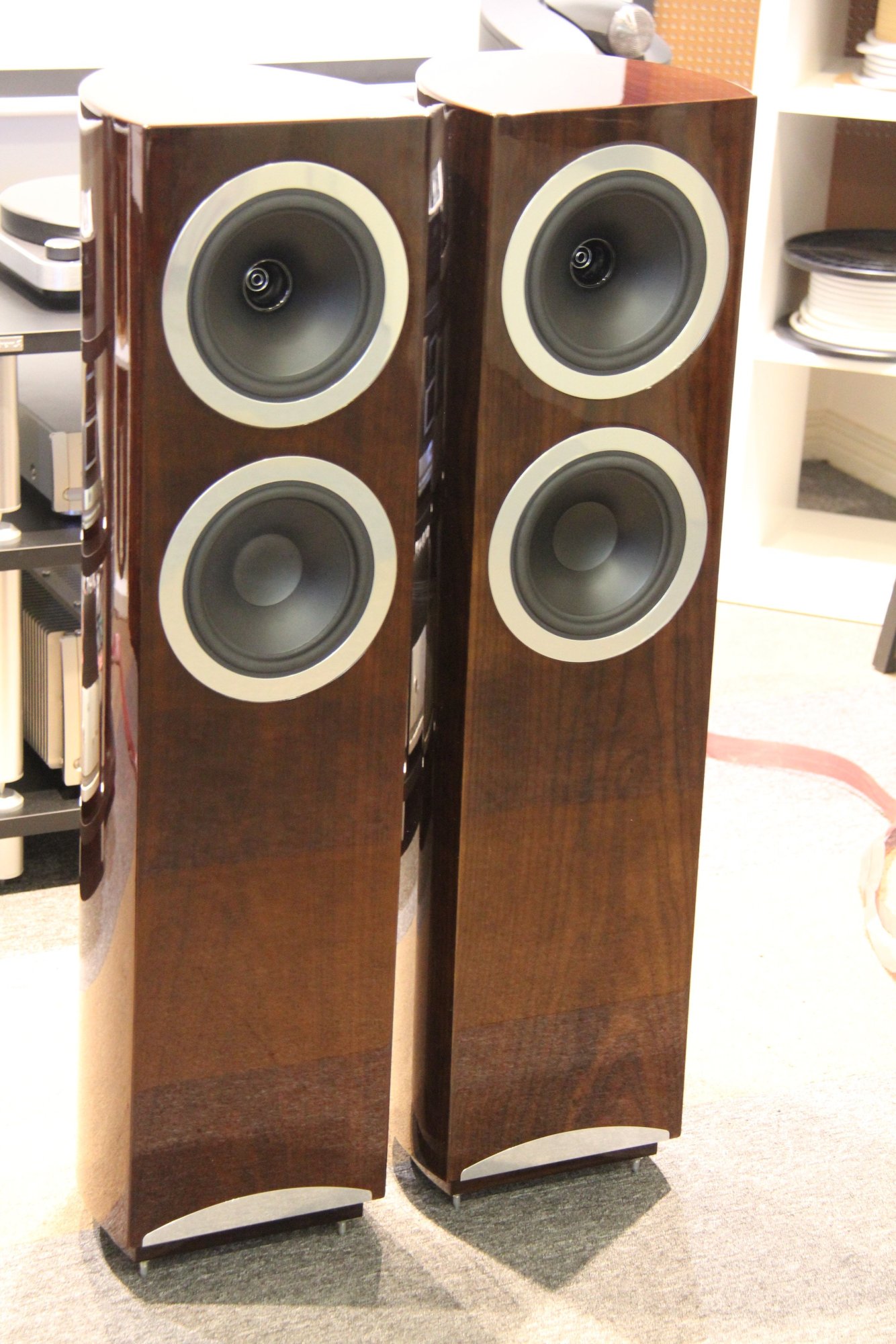

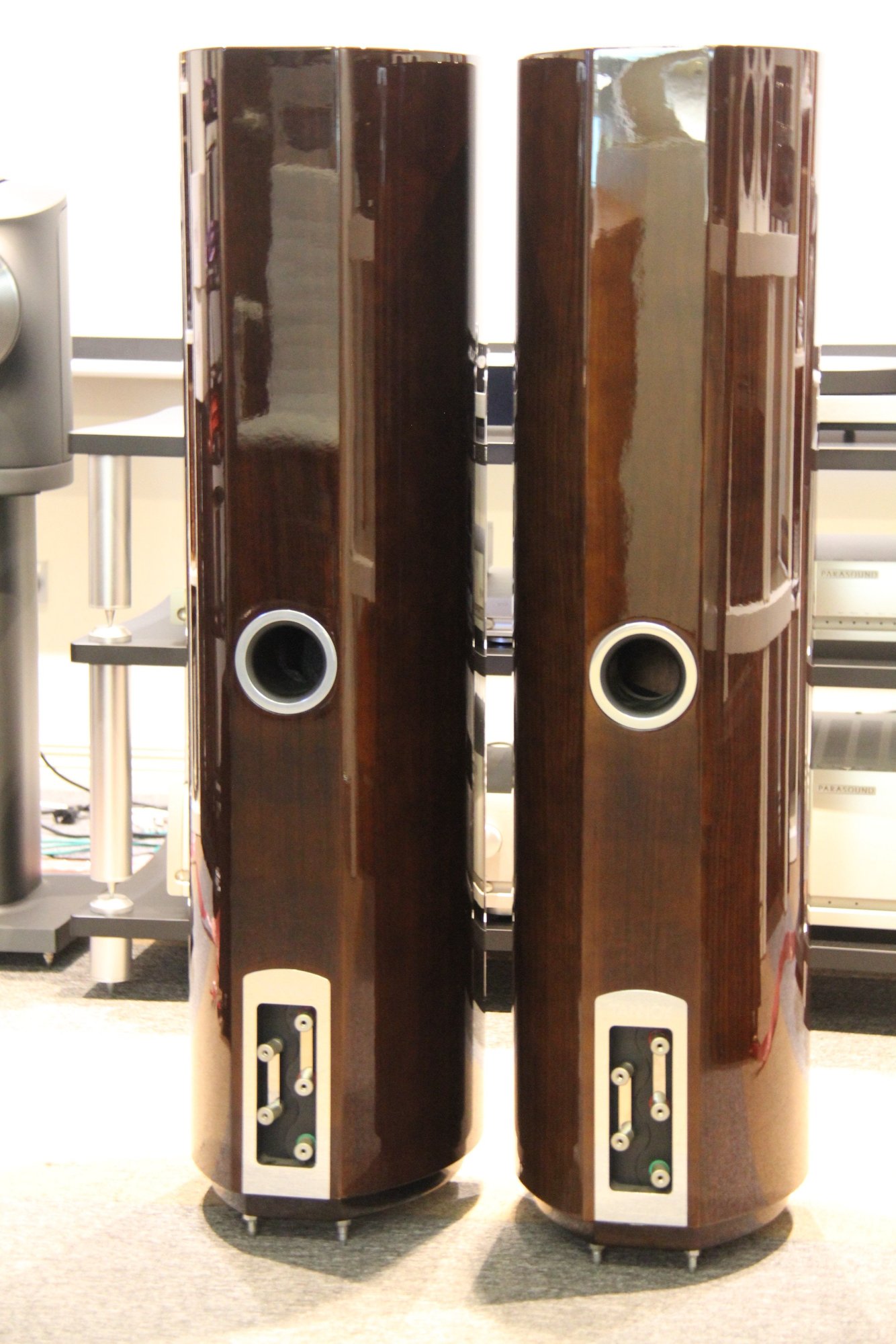

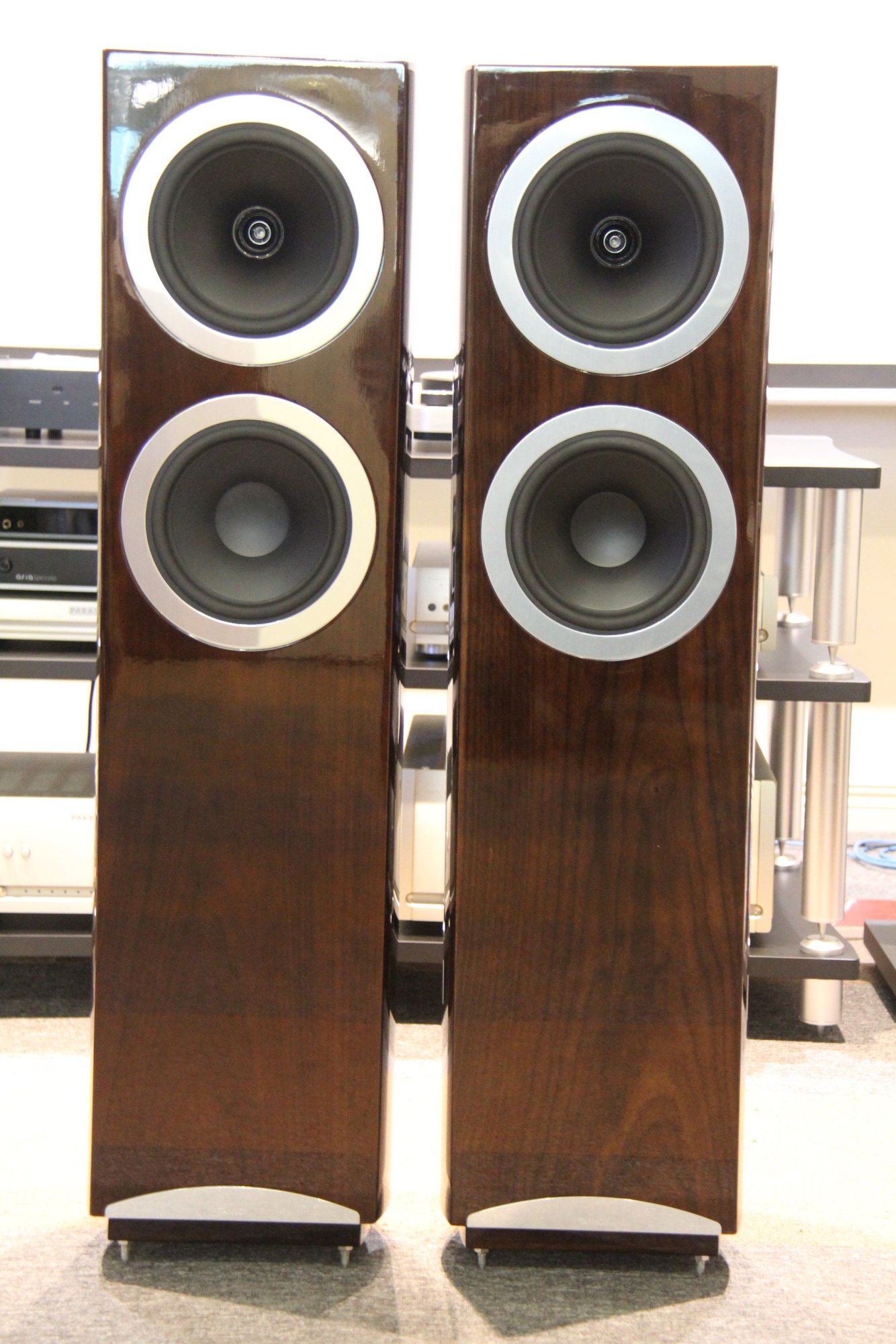

Class A Audio Posted March 26, 2024 Posted March 26, 2024 Further Information: Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735 Capable of resolving the finest musical detail or generating the power and dynamics of a full scale orchestra, the Definition DC8T is a commanding floor standing loudspeaker for the discerning listener. The latest 8 inch Dual Concentric™ drive unit with WideBand™ tweeter is augmented with a precision matched 8 inch bass driver in a thoroughly contemporary luxury finished cabinet. The exceptional rigidity of the port tuned plywood enclosure and extensive use of Tannoy DMT™ material achieves bass down to almost 30Hz with outstanding low frequency dynamics. The Deep Cryogenically Treated straight path crossover, silver plated copper conductors and Tannoys unique fifth speaker terminal for driver grounding ensures the DC8Ts class leading fidelity and articulation Specifications Enclosure Type: 3 way rear ported Recommended Amplifier: 30 – 200 Watts Power Handling (RMS): 100 Watts Peak Power Handling: 400 Watts Frequency Response: 33Hz – 35kHz Crossover Frequency: 250Hz, 1.5kHz Crossover Type: Passive low loss 2nd order LF, 1st order HF Deep Cryogenically Treated Construction Sensitivity: 89dB Nominal Impedance: 8 Ohms Internal Volume: 43 Litres Drivers: Dual Concentric™ High Frequency 1 x 25mm (1") Titanium dome with Tulip WaveGuide™ Dual Concentric™ Low Frequency 1 x 200mm (8") treated paper pulp cone with rubber surround. 44mm (1.75") edge wound voice coil Bass 1 x 200mm (8") treated paper pulp cone with rubber surround. 44mm (1.75”) edge wound voice coil Dimensions: 271 x 1025 x 260mm (Width x Height x Depth) Weight: 21kg / 46.2lbs Colour: Walnut
