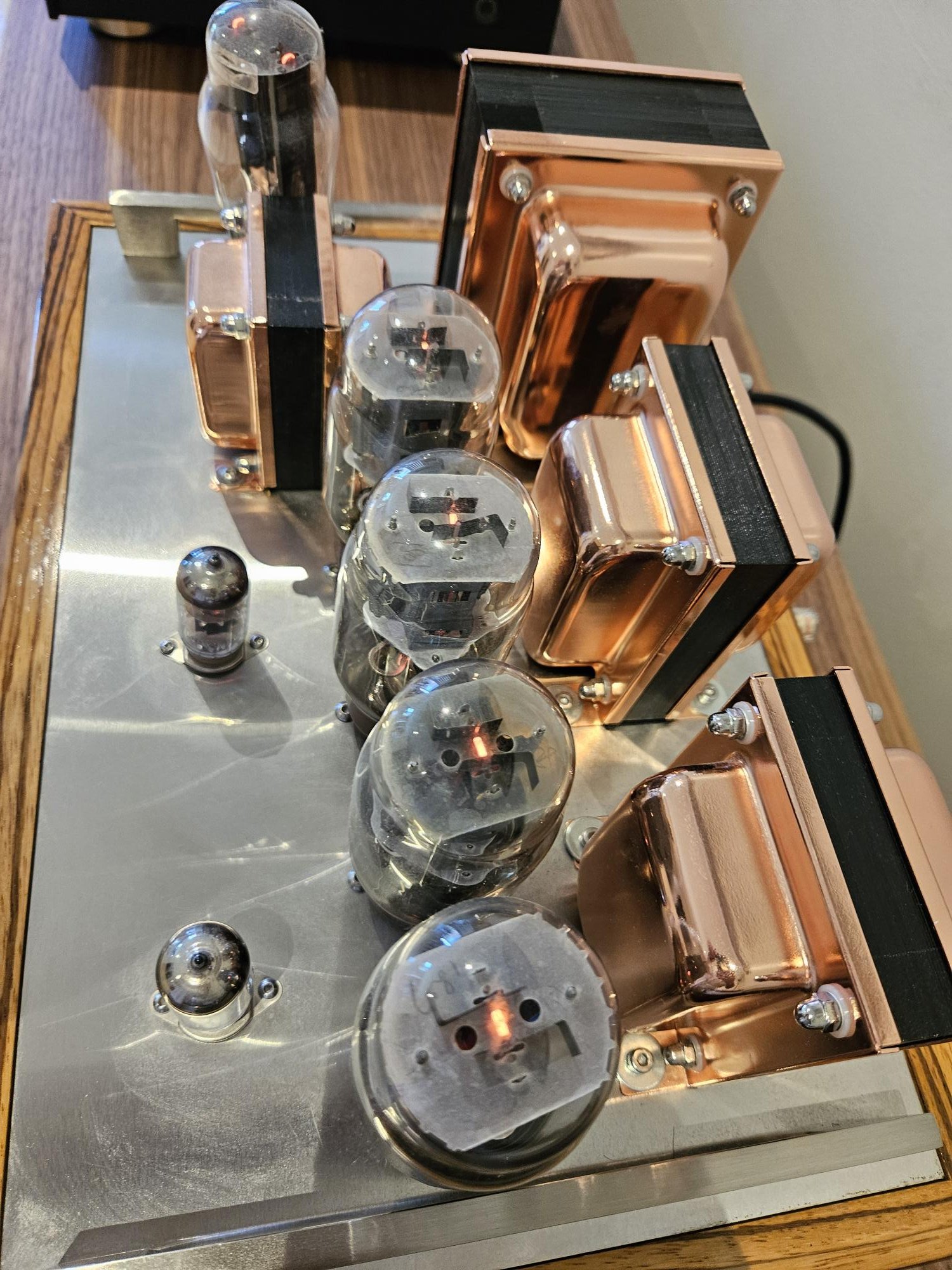

Guest Posted March 25, 2024 Posted March 25, 2024 (edited) Further Information: Up for sale is a gorgeous Weston Acoustics amp-finished in custom Zebrano wood and copper plated covers. It is as new with no more than 1 hour of use since I purchased it from Earle approx 12 months ago. Details from his web site Troubadour 350. The Troubadour 350 is an upgraded version of the Troubadour 6L6. Upgrades include larger power supply, upgraded cathode capacitors, output transformers, 350C output tubes. Can also run 350B, 350C, 6L6GC, 7027, 7581 and 5881 output tubes. SPECIFICATIONS Power Output - 20 watts per channel Frequency response -3db - 10hz to >40khz Separation - >65db Signal to Noise - >85db A Weighted Signal to Hum - > 75db Distortion - <0.4% at 1 watt rms Hum Level - <2.0 millivolt Sensitivity - 500mV Input impedance - 100K Inputs 4 Speaker output 8 ohm (6 to 12 ohm is fine) Weight ~16kg (~35lb) Dimensions 430mm x 320mm x 200mm (width x depth x height) Thanks for looking. Edited March 26, 2024 by Guest
Phil M Posted March 25, 2024 Posted March 25, 2024 Hi Eskay Do you have the receipts / manual / paperwork that goes with the troubadour? Kind Regards Phil
SilverLox Posted March 25, 2024 Posted March 25, 2024 Hi Eskay Out of interest, when would one use the passive vs active pre-amp out ? Regards
Whites Posted March 25, 2024 Posted March 25, 2024 That's the best looking Weston amplifier I have seen. 1
blakey72 Posted March 26, 2024 Posted March 26, 2024 23 hours ago, SilverLox said: Hi Eskay Out of interest, when would one use the passive vs active pre-amp out ? Regards I think it would depend on the power amp you used with it. The passive pre basically means the signal just goes through the volume pot, that's it, no gain. The active goes through the pre section so may add some 'flavour' AND probably gain in the output signal. This (gain) would be handy to provide a higher signal level into the power amp. I'm NO expert by any means but I think that's kind of in the right direction. My ol' mate @Cafad is more the amp expert and may be able to add?
zenikoy Posted March 26, 2024 Posted March 26, 2024 Jeez, i'd pay $1750 to use it as a static art display. Unfortunately I'm in the wrong state and wrong country. 1
blakey72 Posted March 26, 2024 Posted March 26, 2024 1 hour ago, lemarquis said: Is this the same one? Nope. Similar though. 1
MTG Posted March 26, 2024 Posted March 26, 2024 7 hours ago, lemarquis said: Is this the same one? The copper is about a billion times more sexy - chalk and cheese comparison... I'd be sniffing if my ALL my speakers weren't fairly low impedance (DOH!). 1
