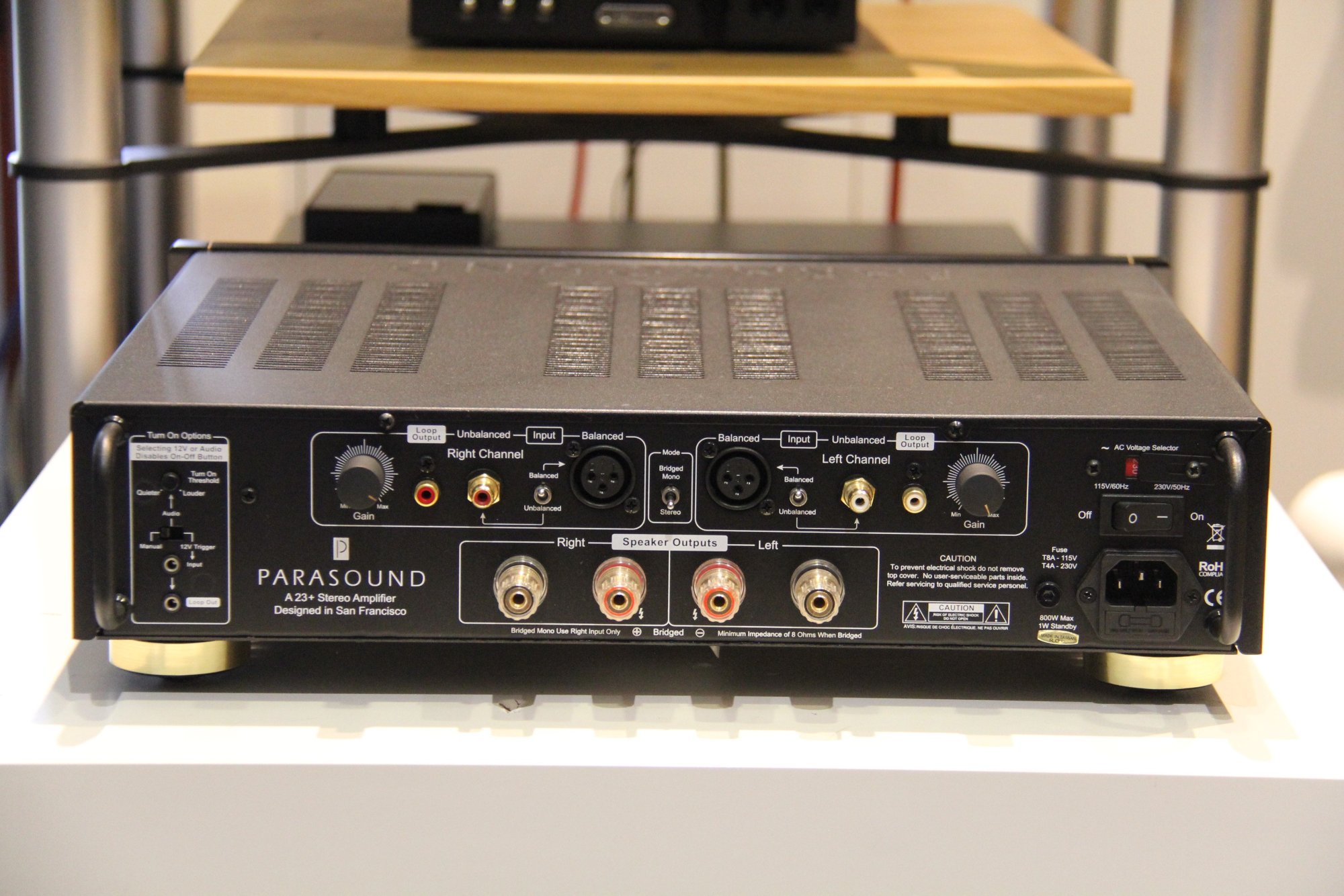

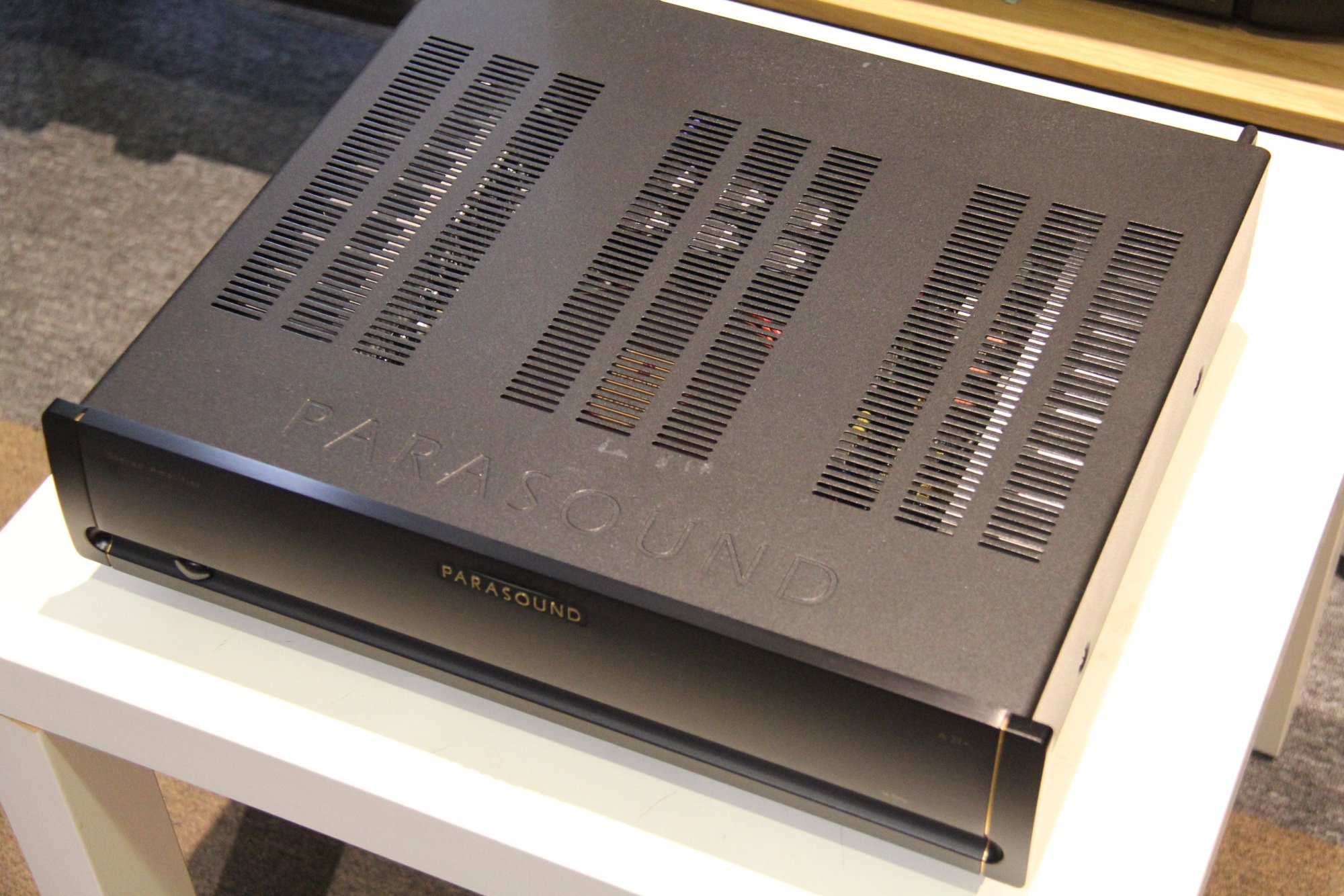

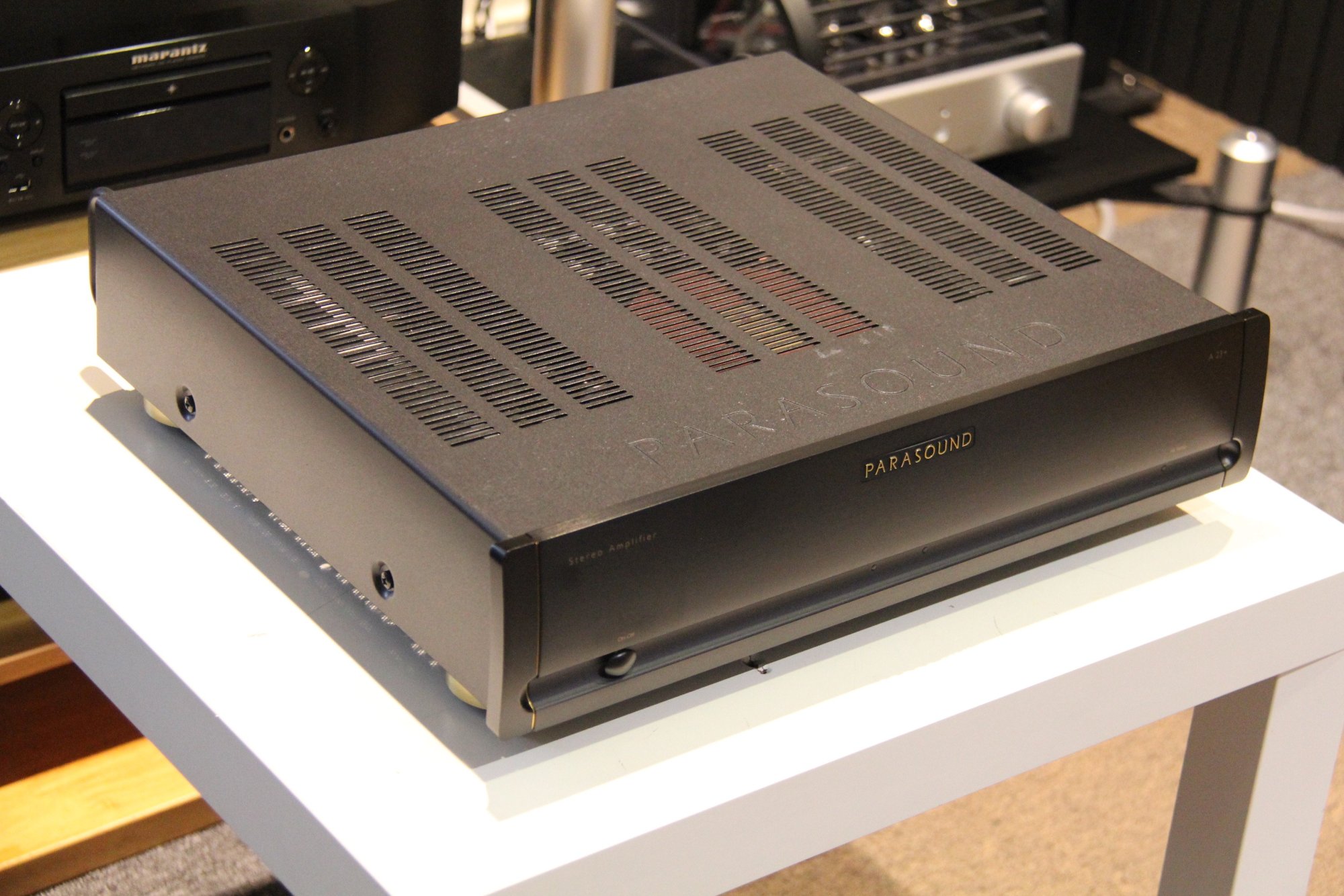

Parasound Halo A23+ Power Amplifier


Recommended Posts

Item Condition: Trade in, a few scratches here and there.
Shipping Options: Pickup available and you can audition.,Shipping is available at agreed cost.
Suburb or Town: Notting Hill
State: VIC
Payment Method: Pickup - Cash, Paypal, COD Only
Reason for selling:

Further Information:

Location: Class A Audio, 8/585 Blackburn Rd, Notting Hill, VIC, 3168. phone (03) 8555 0735



Parasound's mission is to put great sound into stunning packages, priced magnitudes lower than any competitor. The results have been clear: Parasound products have won best-in-class awards in the most popular audiophile publications year after year.



Features
45 amperes peak current per channel
Stable with speaker impedance dips below 2 Ω
Balanced inputs with discrete circuits
Heavy-duty 24k gold-plated 5-way speaker binding posts
Gold-plated RCA input & loop output jacks
Direct-coupled signal path, no capacitors or inductors
DC Servo and relay protection circuits
AC turn-on inrush surge protection with relay bypass
JFET input stage, MOSFET driver stage
12 beta-matched 15 ampere, 60 MHz bipolar output transistors
1.1 kVA shielded toroid transformer w/ independent windings for each channel
Independent power supplies for input stage, driver stage and output stage
54,400 µF filter capacitors for output stages
Full power is rated all the way down to 5Hz for unrestricted low-end bass
Harris hyper-fast soft-recovery bridge diode rectifiers
Automatic turn-on by 12 V trigger or audio sensing
2 rack space chassis with rear carry handles
Rack mount hardware available separately



Specifications
Power Output – Stereo Mode (0.06% THD)
160 watts x 2, 8 Ω both channels driven
240 watts x 2, 4 Ω both channels driven Power Output – Stereo Mode (0.9% THD)
210 watts x 2, 8 Ω both channels driven
300 watts x 2, 4 Ω both channels driven Power Output – Bridged Mode (0.06% THD)
500 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended Power Output – Bridged Mode (0.9% THD)
600 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Current Capacity: 45 amps peak, per channel
Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.06 % at full power
< 0.03 % at typical listening levels
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Input Sensitivity for 28.28 V Out (8 Ω Load)
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 107 dB, input shorted, unweighted
Damping Factor: > 800 at 20 Hz
Dimensions
Width: 17-1/4" (437 mm)
Depth: 15"-1/4" (388 mm)
Depth, with cables 17" (432 mm)
Height, with feet: 4-1/8" (105 mm)
Height, without feet: 3-1/2" (89 mm), 2U
Net Weight: 27 lb. (12.2 kg)
Shipping Weight: 34 lb. (14.4 kg)
