FS: Ferguson Hill FH001 horn loudspeakers with matching FH002 subwoofers and FH003 sub amp


Recommended Posts

SOLD
Item Condition: In Good condistion some minor scratches and marks
Shipping Options: Pickup available and you can audition.
Suburb or Town: Melnourne, Brighton
State: VIC
Payment Method: Cash on pick-up or EFT
Reason for selling: Upgrading

Further information:



Ferguson Hill, top of the range horn loudspeaker system consisting of large horns with stands, 2 subwoofers and matching subwoofer power amp.

Great Horn design that brings the best out of the Lowther speakers.  Due to the speakers being made of transparent acrylic they are less imposing than most horns.  Looks absolutely stunning but gives up very little in sound quality in this open baffle horn design.

Originally imported from the UK – I don’t know of any others in Australia.  They were bought for RRP $28,000 AUD.

Audition is possible.

The Ferguson Hill FH001 loudspeakers are full range units from 150Hz - 20KHz, with no crossover, however, a sub bass unit is required below 150Hz. They reproduce music with a high level of clarity, detail and dynamics, are highly efficient, and will go loud with just a few watts (5 watts).

They work fine with both tube and solid state amplifiers but their efficiency allows their use with relatively low powered amplifiers further increasing the level of clarity obtainable, from such relatively 'simple' amplifier circuits.

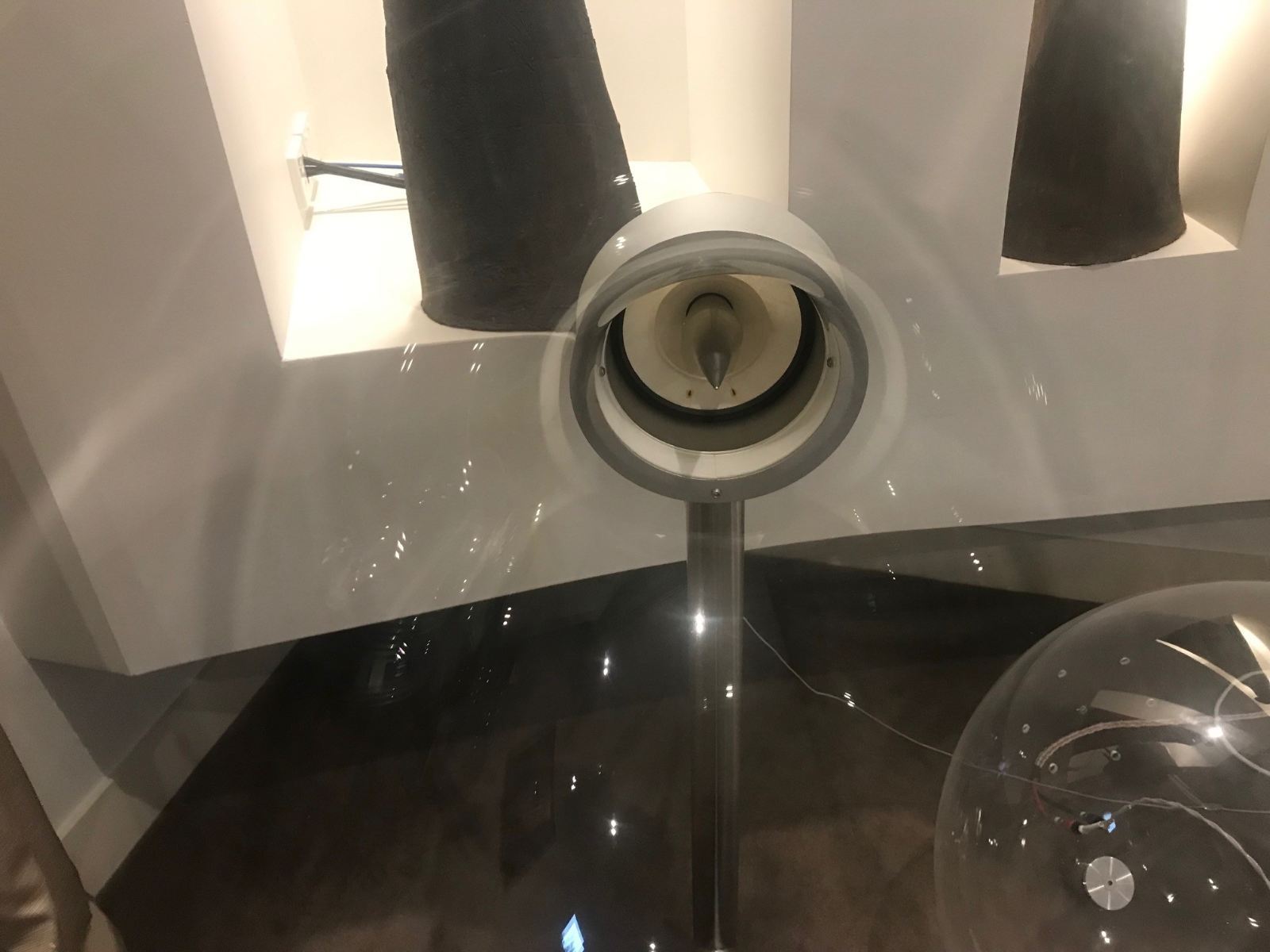

The stands are a welded stainless steel construction, satin polished, with internal damping, integral spikes and the possibility of hiding the speaker cables within the stand.  The horns are made from toughened cast acrylic, precision moulded, 8mm thick. The support ring and phase plug are precision machined from aluminium alloy, and have a protective anodised finish.

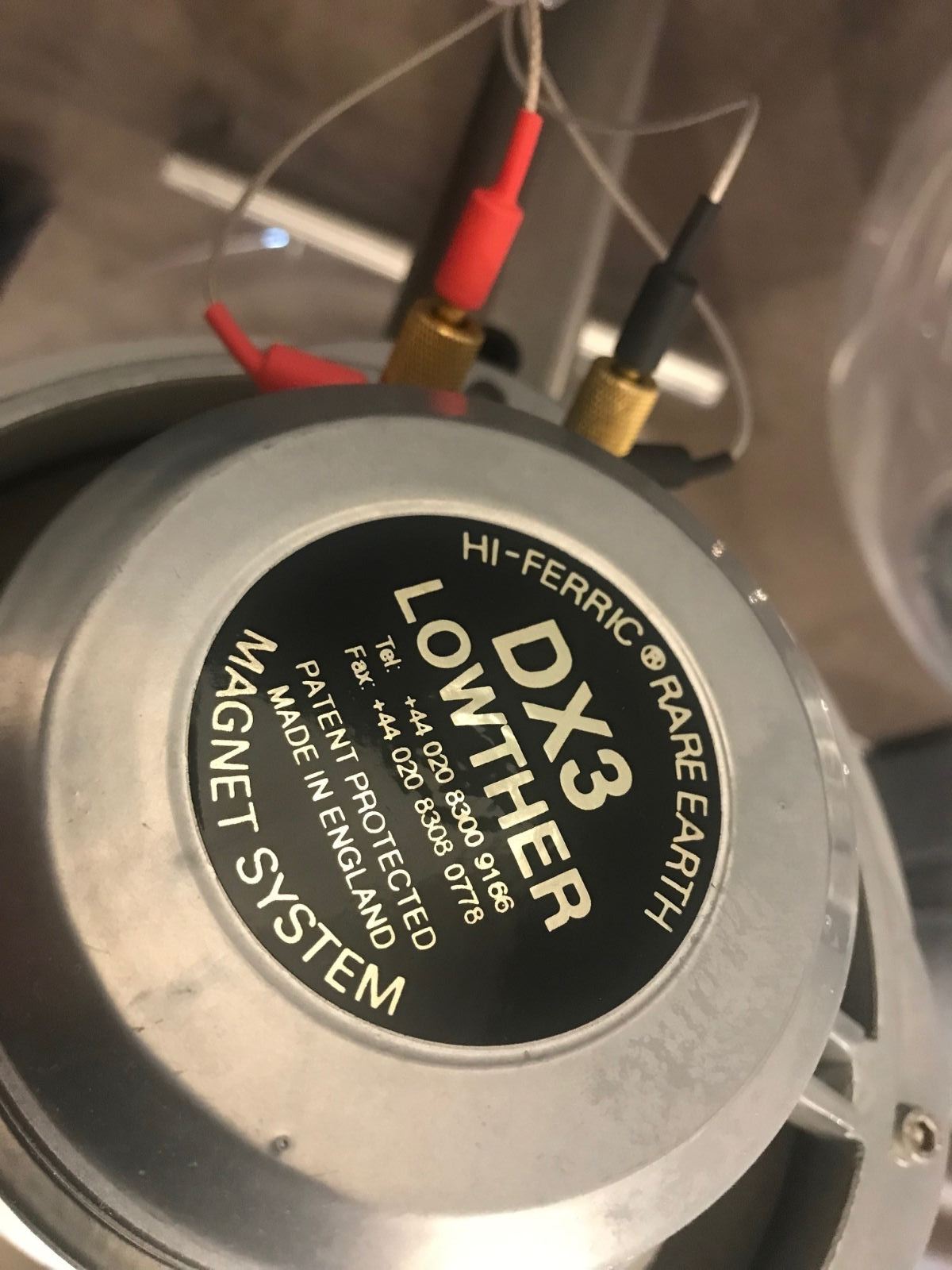

The main drive unit is a modified Lowther DX3 full range driver.

The sub woofers, FH002 (covering from 150 Hz down) have their own matched amplifier with level control.

The subs are an acrylic sphere 24 inches in diameter with a 12-inch cone driver. The enclosure has six small holes behind the driver, which provide a distributed port loading element to improve power handling without the resonant frequency of a normal port.

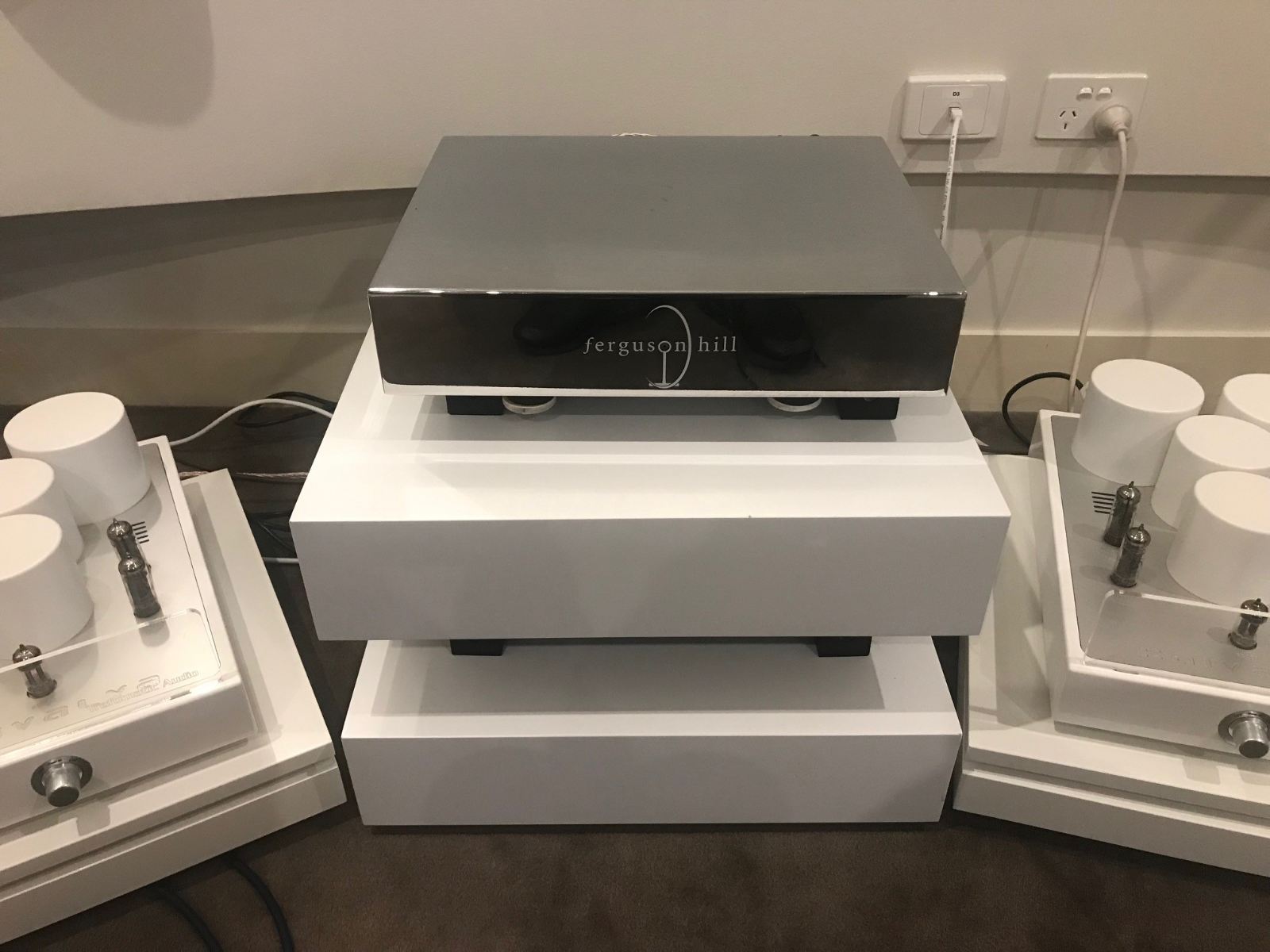

The Ferguson Hill bass system is designed to visually and acoustically match the FH001 Loudspeakers, giving a seamless integration between the sub woofers and the horn speakers. The Bass Amplifier (FH003) is mirror-polished stainless steel, fully damped and its frequency response is set to complement the FH001 Loudspeaker.  This 2-channel, Class B, solid-state amp provides 100 watts per channel into 4Ω. Normally, the FH003 can be fed from a full-range preamp or power amp, and its active crossover rolls off above 150Hz at 12dB/octave.

Specifications FH002 Bass Units

Dimension 600mm diameter sphere

Drive unit 300mm diameter/high efficiency

Internal volume 150 litres

Internal wiring high purity silver/PTFE sleeve

Nominal impedance 4 ohms



Speaker dimensions

    Height 1.65m

    Width 0.92m

    Depth 0.72m



Specification

    Drive unit: Modified Lowther DX3

    Sensitivity 1M/1KHz/1 watt 100db

    Nominal impedance 8 ohm

    Weight 27 Kg each without damping fill


Photos:





























  • Like 9
  • Love 1
Link to comment
Share on other sites


The first set of pictures are photos of the actual speakers for sale.  The last three are the companies marketing photos which I included because, being transparent  they are hard to photograph.

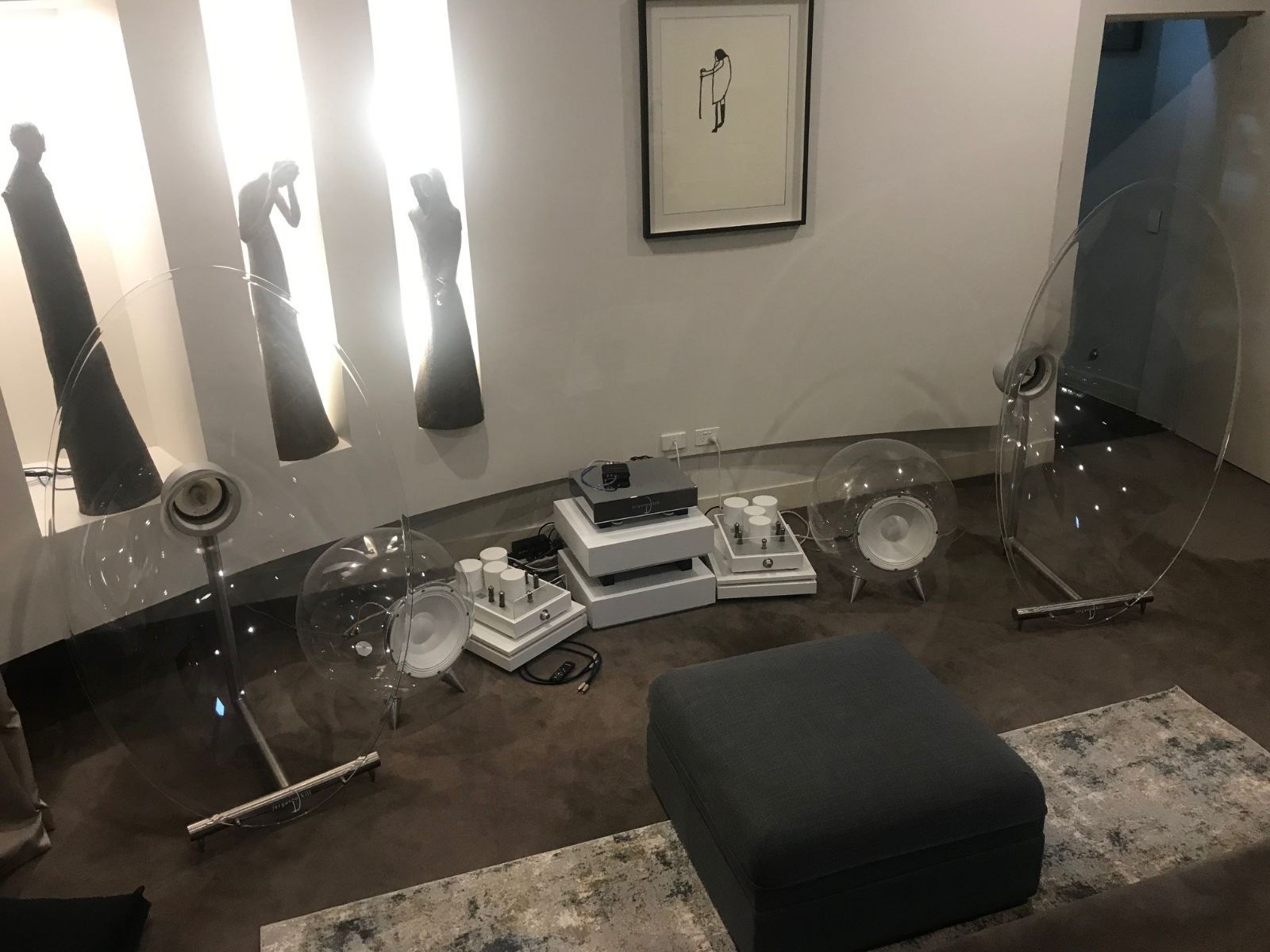

The first two photos specifically are simply my set up in two different houses as I have recently moved.



Thanks
