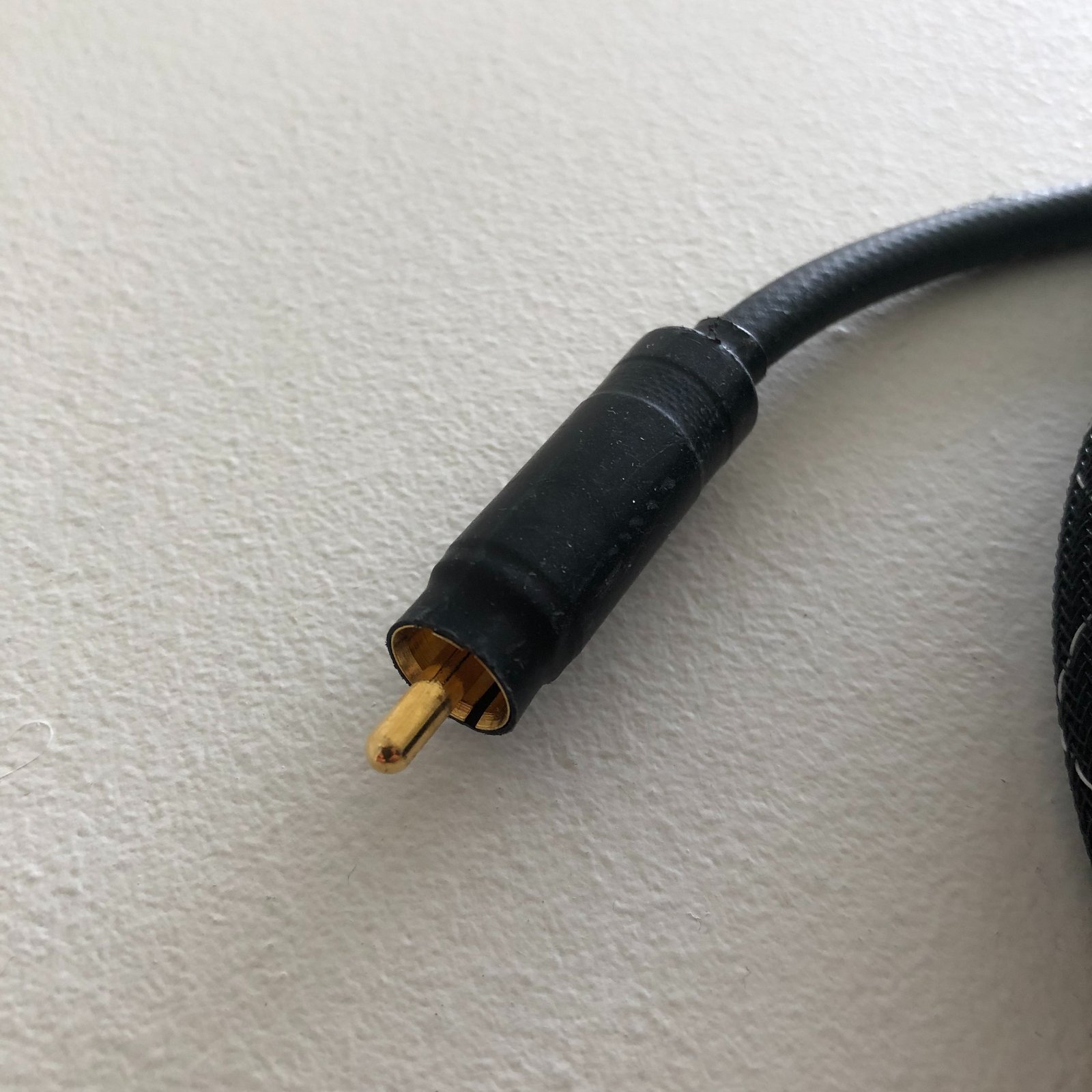

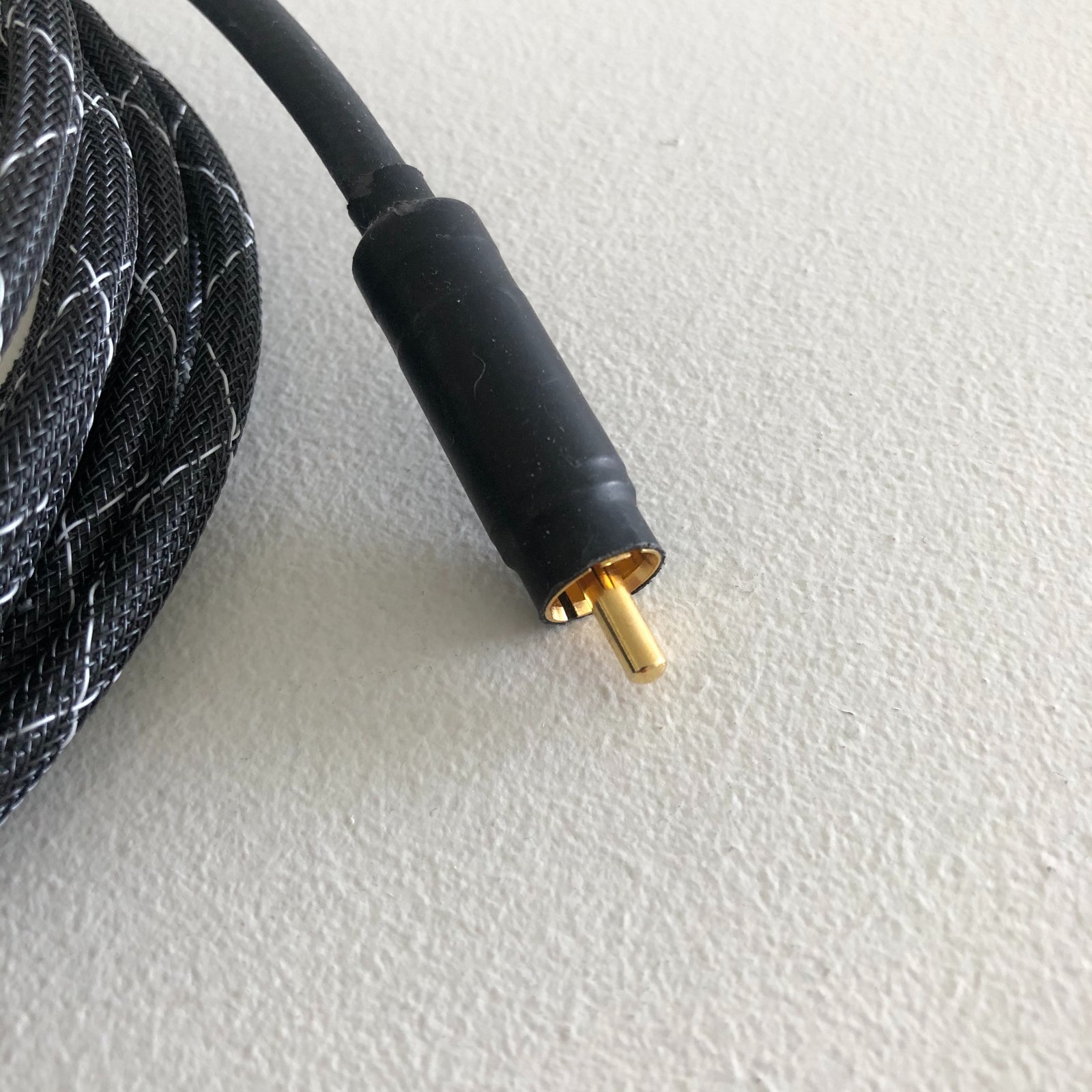

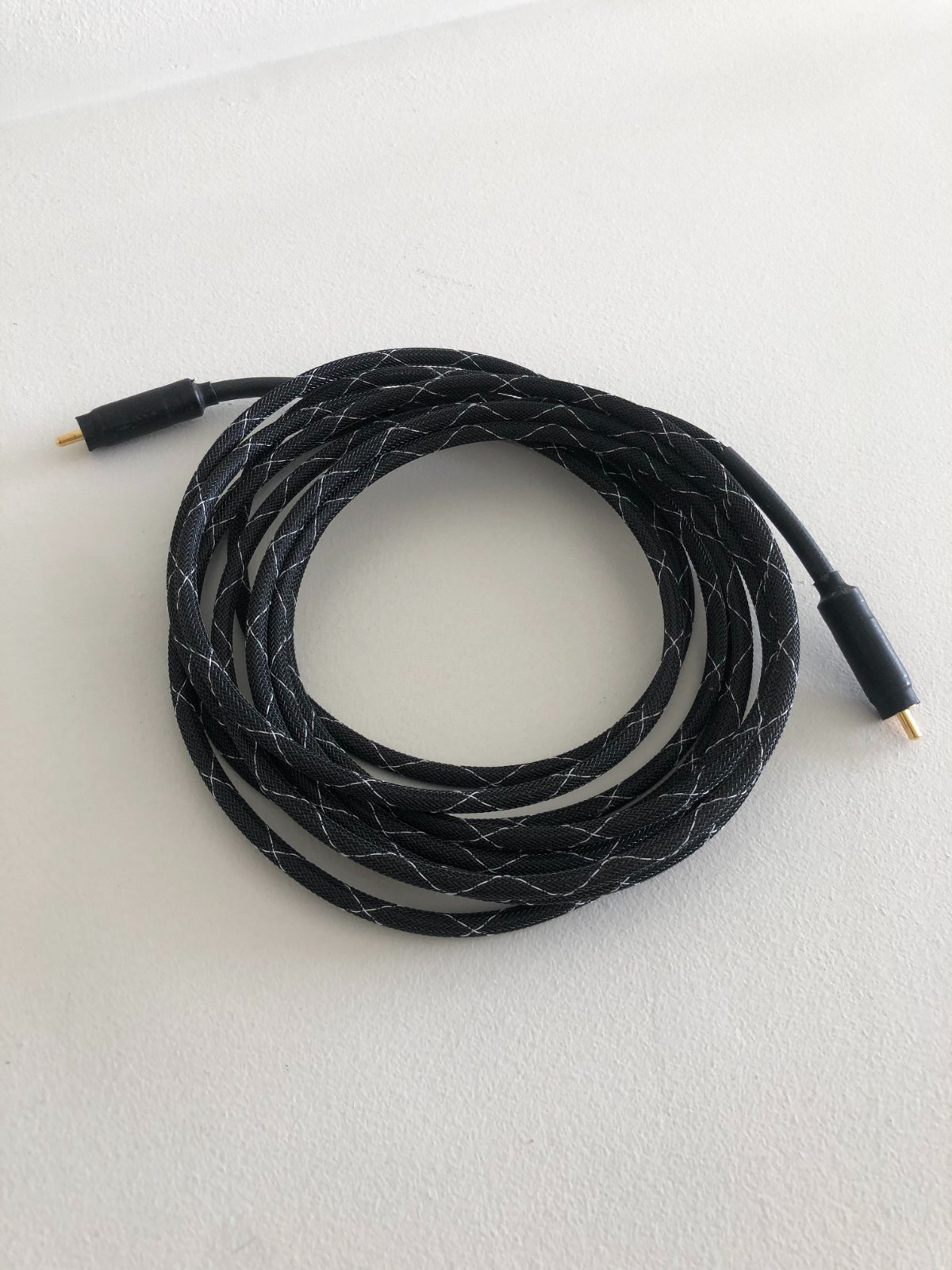

edmundg Posted July 25, 2021 Posted July 25, 2021 Further information: This Audio Principe Digital Interconnect is constructed using coaxial cable with a specific impedance of 75 ohms. As with all Audio Principe interconnects, the internal wire is made in the USA, and all solder joints use 2% silver solder. The solid centre conductor is 23AWG oxygen-free copper, protected by foamed HDPE dielectric providing high Vp and minimal absorption. The double layer high density shield consists of braided plated copper strands surrounding a 100% coverage aluminium foil. The RCA connectors are low mass Neutriks with gold-plated solid pin and skirt. The result is a very clean signal which provides more transparency and detail. By minimising distortion and internal reflected waves, aural fatigue is also reduced. Photos:
