I recently purchased a Classic Sony TC 765 Reel to Reel tape deck with many tapes to play classic 70s and 80s music

Based on info from the seller I will be the second owner

It will need some TLC externally as in a polish but overall it's in great condition

When tested - all worked OK however after the trip down from Noosa to my place in Brisbane it may have sustained some shaking to affect it on replay after connecting it up to my system

Every thing works like a charm and is quiet as a church mouse however it seems to have lost signal to the right channel

The VU meter also is not moving on that side

I have lived through the tape age and know about basic maintenance of these machines having used for some time a Revox back in the day

So far I have cleaned the heads and capstans ect that were relatively clean already

When I toggle the source to tape lever it crackles a little but does not activate into life the silent channel

So I am going to get some electronic cleaner in an aerosol can and after removing the panels give it a good clean to all the insides, while looking for loose wires, swollen capacitors ect

I am also calling on members that may provide information on spare parts source for them as they are hard to find apart from belt sets

Information also on heads that may be retrofitted from a similar model or different brand - just in case the playback head is the problem

Also any pimp my reel to reel info would be appreciated

P.S. I will post some photos soon

Link to post
Share on other sites
  • Replies 48
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Today I just happened to be on business just a block away from Totally Technical in Bowen Hills Brisbane They are stockists of RMGI audio tape and also repair equipment I called in and purchased 2

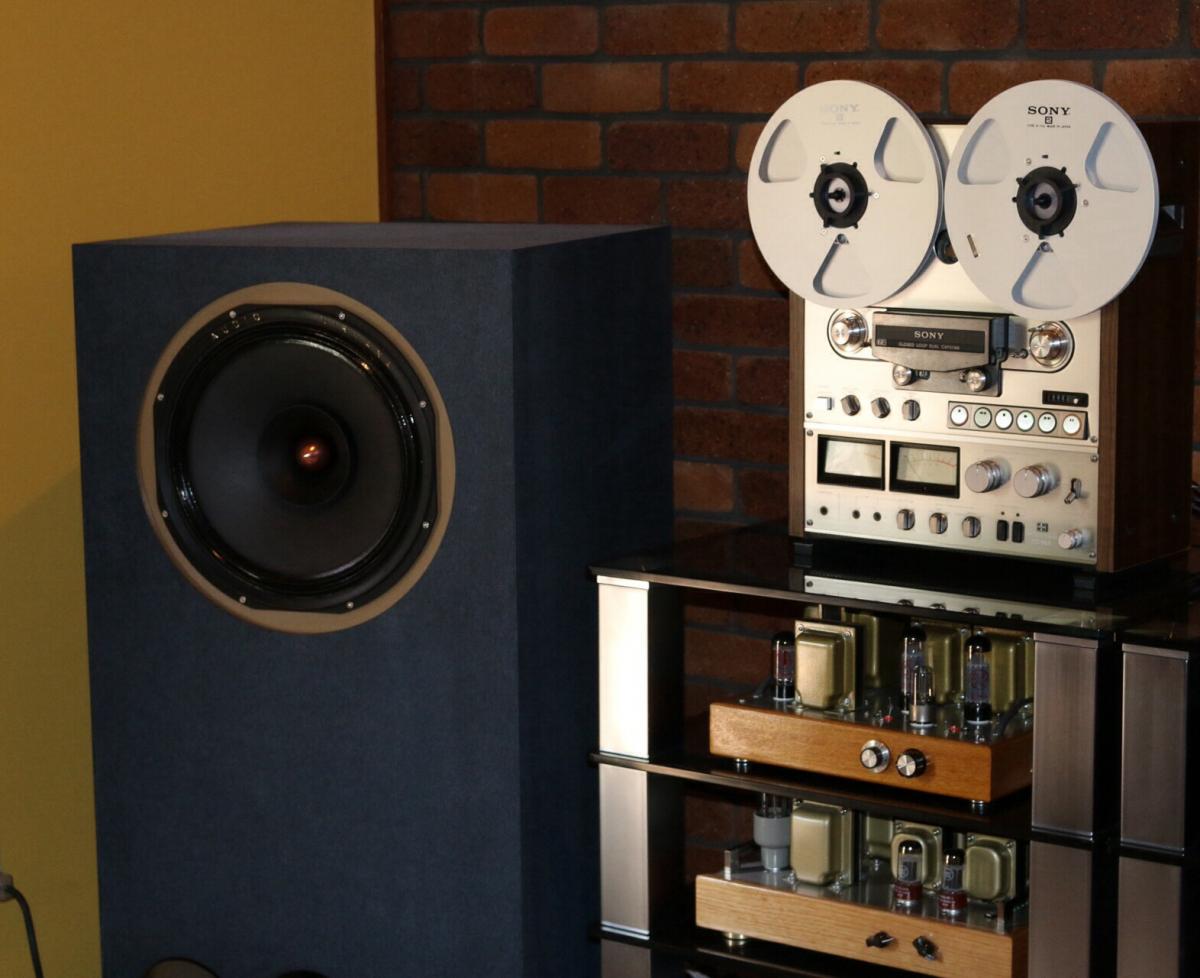

Here are some updated photos The Sony TC765 is now in its new position and 10.5" reels fitted ( doing a room revamp on spouses orders )

Here is a photo ( A sneak peak ) with the new horn speakers set up

Yes, I'd try cleaning all switches and pots with a good contact cleaner/lubricant in the hopes that this simple measure solves the problem.

It did for me with an Akai M10 RTR that had almost identical symptoms (totally disabled right channel - rec, monitor, playback and VU meter) and it turned out to be dirty contacts in a stereo/mono switch.

Although I understand the configuration of that particular switch relates specifically to that model Akai, maybe your Sony has something a bit similar.

Good luck. :)

Link to post
Share on other sites

Any pic's, I have an Ortari MX 55, it had a trip from Sydney to Melbourne with the result that a spindel got bent not fun. Graham on the forum would be one of the best areas of advice.

Link to post
Share on other sites

Posting a few of pictures as promised

Front View

Runs 7 inch Reels

post-112724-0-28331900-1344914229_thumb.

Closeup of front panel and buttons

post-112724-0-26282300-1344914284_thumb.

post-112724-0-42481500-1344914296_thumb.

A View of the back

post-112724-0-90168100-1344914472_thumb.

Edited by Full Range
  • Love 1
Link to post
Share on other sites

Just a progress update for all

Called in to a shop and purchased some CRC - CO Contact Electrical Cleaner

I then went home and pulled the covers off the Reel2Reel and proceeded to clean just about everything including the head and mechanism area

All dials and switches were cleaned by spraying and turning/operating back and forth just to do a thorough job of it

Put it all together again and connected it up again for testing

Result is a roaring sucsess everithing works - in fact it's silky smooth

Currently sitting here on my iPad to post while listening to some music of the seventies

So now that it's a keeper I need to pull it apart again to give the dials and knobs along with face plates a good polish

I have noticed a little tarnish on some areas and some age residue on the chrome parts, especially the dials

Unless anyone has another method ? I will use Braso metal cleaner and buff them to a shiny luster

Thoughts anyone ?

Edited by Full Range
Link to post
Share on other sites

Glad you got it going again. I was going to suggest it might have been a dodgy relay going on past experiences. Some machines also have plug in type modules with edge strip connectors

that could need a clean and re-tension. Often just reseating cards will fix the problems. The knobs and dials clean up very nicely in an ultrasonic bath.

Link to post
Share on other sites

I had a gut feeling that all it would have been is some dust or dirt that came loose during transport to my house ( some 120 km away

Still its a good thing that all components inside the unit is ***** and span now

Now on to the beautifying task and polishing job

Test day 2

All morning and into to afternoon it was playing non stop without issue

Link to post
Share on other sites

Someone with knowledge of the Sony TC 765 as to what NAB Hub Adaptors will fit from a generic brand or another brand so I can fit and play 10" reels

I have searched on the net without sucsess

Looking at an online users manual that the Sony has a rear spacer washer - see here - http://www.obsoletemedia.com/tapedecks/manuals/sonytc765/html/07.htm

I can make a rear spacer if need be but need suitable DES hubs first

Edited by Full Range
Link to post
Share on other sites

Someone with knowledge of the Sony TC 765 as to what NAB Hub Adaptors will fit from a generic brand or another brand so I can fit and play 10" reels

I have searched on the net without sucsess

Looking at an online users manual that the Sony has a rear spacer washer - see here - http://www.obsoletemedia.com/tapedecks/manuals/sonytc765/html/07.htm

I can make a rear spacer if need be but need suitable DES hubs first

Looking at the link I would say your best option for Nab hub adaptors to suit your Sony would be the TEAC TZ-612. These have a removable metal shim that acts as a spacer for the thinner metal reels. They go for big money on Ebay but you can still buy them new from TEAC in the states for less than half what most sellers on Ebay ask for them. There is the postage issue but at least your getting new units. The standard Revox units will also work but you would need to adjust the spindle (reel table) heights to suit using these.

Edited by gamve
Link to post
Share on other sites

I've got a Sony TC-630 circa 1970 which has some transport issues. Was a great machine when working. I've been in contact with these guys and they have been very helpful and communicative. http://broadcastworkshop.com/

In Melbourne but worth a call at least. Good luck!

Ok that link doesn't work for some reason, but try googling it. Here's their contact info

Broadcast Workshop, 476 Victoria Street, North Melbourne, Victoria, Australia, 3051 Ph: +61 (0)3 9329 7655 Fax: +61 (0)3 9328 3866 Email: info@broadcastworkshop.com

Edited by stewyh
Link to post
Share on other sites
  • 9 months later...

Another option would be Serg at Audio Oz, super nice guy an a quarter of the price. Mine is booked in next week.

Another member used Broadcast W and after a lot of money, then sent it to Serg, he is happy now.

By the way, I am not affiliated in any way.

Good luck,

Greg

Link to post
Share on other sites

This beautiful Sony TC765 Reel2Reel tape deck is now all fully serviced

All the knobs are polished to look there best

And it plays superbly

Knobs before a polish

post-112724-0-62536600-1371538712_thumb.

A look at the heads

post-112724-0-55911100-1371538776_thumb.

To polish the pitted and tarnished knobs I used a combination of white magic sponge and brasso

post-112724-0-49243900-1371538840_thumb.

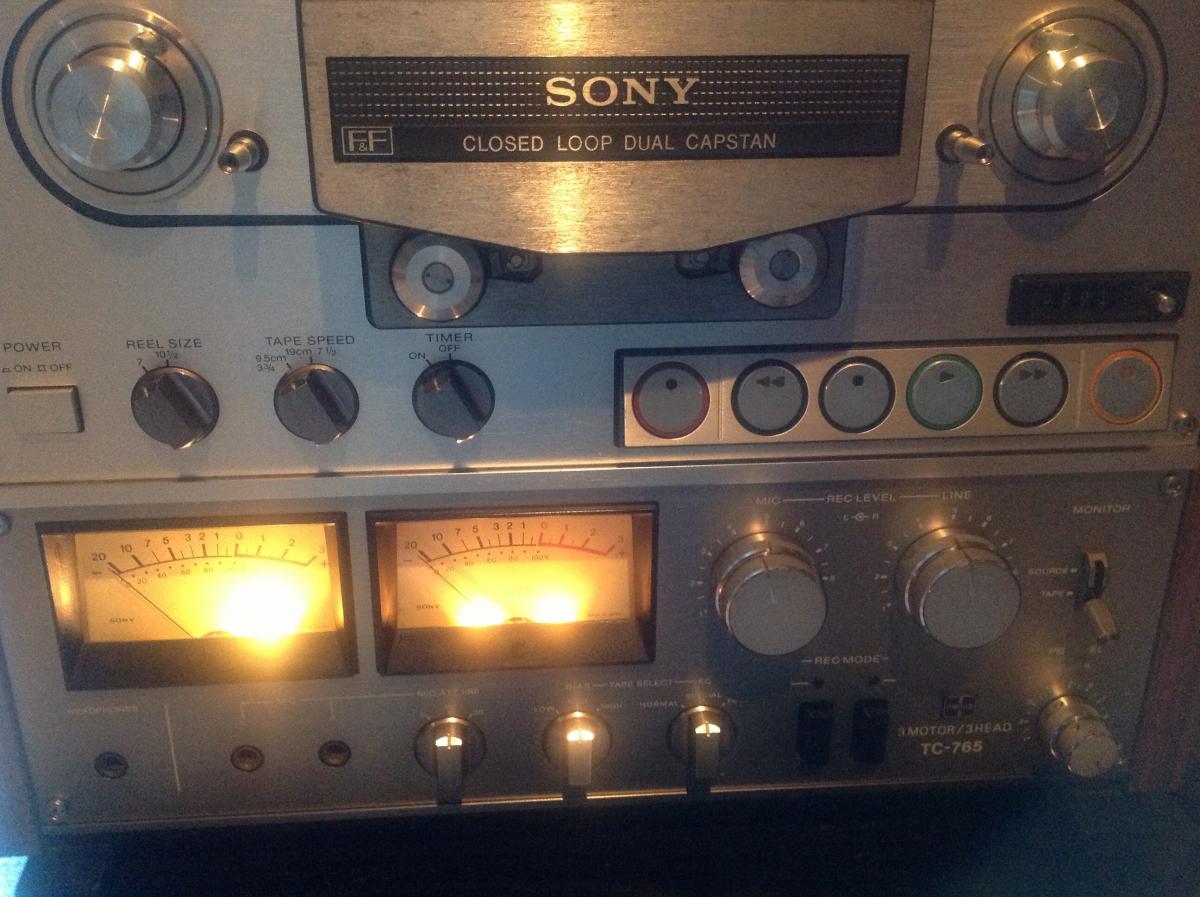

All polished and lit up ready to go

post-112724-0-81648200-1371539003_thumb.

post-112724-0-93777500-1371539063_thumb.

Link to post
Share on other sites

Gorgeous!



You inspire me to do something about my Akai R2R, although not as resplendent with knobs and dials :)

It took about 3 hours and most of that was polishing

Now I need to source some 10" X 1/4 Reels full or empty

The large reels make this deck look even cooler akin to mags on a car

Link to post
Share on other sites
  • 3 months later...

This is an interesting thread...the R2R machines are gorgeous. One question though, what do you play on them?

Cheers

M

One can purchase many artists retail tapes, some old just like records and a few organisations are releasing new material

With the correct amp / preamp that has both the play and record connections, one can transfer any music from record, CD, Radio ect to tape

Most tape players have a two speed record / play system

The slower speed setting increases the playtime on the tape

So it's possible to record a few hours of music dependent on tape length per reel

Edit

I forgot to mention that one can record on both sides of the tape - effectively doubling your recording session

Edited by Full Range
Link to post
Share on other sites

Uncle there is a lot of taoe out there the only ones to bother with are the 15 ips safe masters or the new tape Project etc

Haveing said that you might just find a gem yester year but be extremly careful.

The sound is amazing on a pro machine at 15ips and master tape.

  • Like 1
Link to post
Share on other sites
  • 3 months later...

I was contemplating some sort of cover for my R2R, and I came across this site that makes to order to suit ones unit

Also the brand and model of ones machine can be added



Anyone have alternatives ?



http://hvmreelcovers.yolasite.com



mmmmmmmmmmmm%20019.jpg.opt375x452o0,0s37

Edited by Full Range
Link to post
Share on other sites

Hi Full, the Tape Deck discussions have stopped. What a pity. Thanks for the heads up on the cover. It looks interesting.

I found a Perspex dust cover for an RS1500 & I thought they looked great. Shows off the deck.

Has anyone bought any secondhand or new reels (without tape). If you have let me know the quality and the source.

Cheers

  • Like 1
Link to post
Share on other sites

Hi Full, the Tape Deck discussions have stopped. What a pity. Thanks for the heads up on the cover. It looks interesting.

I found a Perspex dust cover for an RS1500 & I thought they looked great. Shows off the deck.

Has anyone bought any secondhand or new reels (without tape). If you have let me know the quality and the source.

Cheers

Have a look here BW - http://www.casstape.com.au/Price_Lists/AUDIO_WEBSITE.pdf

Or the RMGI site for other distributors - http://www.rmgi.com.au

Edited by Full Range
Link to post
Share on other sites
  • 3 weeks later...

Today I just happened to be on business just a block away from Totally Technical in Bowen Hills Brisbane

They are stockists of RMGI audio tape and also repair equipment

I called in and purchased 2 pancakes of 1/4" tape to suit 10 1/2 " reels - Pancakes are tape without the reel and is the most economical way to purchase audio tape

All that's needed is to fit it to the nab and wind it on an empty reel

And you ask what was the price for brand new tape ?

Two pancakes cost $92.20 inc GST ( That's a lot better than 30 year old tape from eBay )

Let the recording begin :)

post-112724-0-09376000-1392981764_thumb.post-112724-0-48225800-1392981800_thumb.

post-112724-0-31134200-1392981778_thumb.post-112724-0-80667500-1392981824_thumb.

  • Like 6
Link to post
Share on other sites

A call out to see if any SNA members in Brisbane have the test equipment to check and adjust the Azimith on my heads

I can pay in superb coffee and a listening session of the system

Any takers

Link to post
Share on other sites
  • 2 years later...
On 8/21/2012 at 1:13 AM, Full Range said:

Just a progress update for all

Called in to a shop and purchased some CRC - CO Contact Electrical Cleaner

I then went home and pulled the covers off the Reel2Reel and proceeded to clean just about everything including the head and mechanism area

All dials and switches were cleaned by spraying and turning/operating back and forth just to do a thorough job of it

Put it all together again and connected it up again for testing

Result is a roaring sucsess everithing works - in fact it's silky smooth

Currently sitting here on my iPad to post while listening to some music of the seventies

So now that it's a keeper I need to pull it apart again to give the dials and knobs along with face plates a good polish

I have noticed a little tarnish on some areas and some age residue on the chrome parts, especially the dials

Unless anyone has another method ? I will use Braso metal cleaner and buff them to a shiny luster

Thoughts anyone ?



Link to post
Share on other sites
2 hours ago, Steve Novak said:

Paul, I just bought a Sony TC-765 Reel to reel. I need the nab hubs with I gues spacers. Can you help me out? Thanks



A spacer is used to align the tape to the heads

If you use the steel reels that require a NAB hub to secure them

Then yes you will need a spacer between the reel and the drive hub



The spacer is a seperate item and is made of hard foam approx 1 to 1.5 mm thick

Best way to make one yourself is

First find a thin mouse mat

Remove the top plastic cover carefully

And the foam that's used on the underside of the mouse mat is then cut to the size of the motor drive hub



The spacer must be removed when using the plastic reels as they lock in with the spring star lock on the shaft



Cant help with the after market hubs

However I do have one set left of the original NOS Sony NAB hubs











Edited by Full Range
Link to post
Share on other sites

@Full Range. Nice machine there and love the horns! I'm just about to start giving my TEAC rtr a clean. Cant seem to remove the knobs so I'll just have to give them a wipe down. What can I use to give the heads a clean? I assume just an alcohol based cleaner> Same with the rollers/guides?



I'm new to this so I don't want to use the wrong stuff...



Cheers



M

Link to post
Share on other sites
16 minutes ago, unclemack said:

@Full Range. Nice machine there and love the horns! I'm just about to start giving my TEAC rtr a clean. Cant seem to remove the knobs so I'll just have to give them a wipe down. What can I use to give the heads a clean? I assume just an alcohol based cleaner> Same with the rollers/guides?



I'm new to this so I don't want to use the wrong stuff...



Cheers



M



Best I have found for cleaning heads is Isopropyl alcohol with some white magic foam

Same for the rollers

To rejuvenate the rollers you can use alcohol with very fine wet & dry sanding paper, brings them up like new, but only to be done while the rollers are spinning

The white magic foam with mild detergent is also fantastic on the rest of the unit as well



The knobs in these machines are generally secured in 3 ways and sometimes all methods are used on the same machine - depends on the size of the knob

1) An Allen key grub screw

2) Push in interference

3) D key push - sometimes with a spring steel holding key

Edited by Full Range
  • Like 1
Link to post
Share on other sites
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By OTOXO
      Item Condition: Good Shipping Options: Pickup available and you can audition. Suburb or Town: Sydney State: New South Wales Payment Method: Cash on Pickup Reason for selling: Further information: FS: Teac X-1000R Stereo Reel to Reel Tape Recorder (Black). I have tested the basic functions and it is functioning as it should. Unfortunately there is an engraving on the machine (see photos) otherwise it is in good physical condition. Hub adapters not included but if you want Teac Hub adapters and tape reels they can be included at extra cost.

      It is being sold as is but you are welcome to come and test/inspect the machine as much as you like before buying.

      Pickup Leichhardt

      Photos:






    • By Darn
      Item: Nakamichi RX-202 Tape Deck
      Location: Melbourne
      Price: $1200 ONO
      Item Condition: Excellent (just serviced)
      Reason for selling: Nor Required
      Payment Method: Pickup - Cash, Paypal, COD Only
      Extra Info:  This deck has seen very little use (you can tell by wear on heads and pinch rollers) and is in excellent cosmetic condition
                           The unit has been serviced by a Nakamichi trained tech. All the belts are brand new.
                           The auto-reverse switch is intermittent and could not be fixed - but then why would you want to miss the machine flipping the tape at the press of a button-
                           This is a joyous machine

      Photos: Advertisements without photos of the actual item will not be approved.



    • By Audio Connection
      Item: Akai GXC-570, 3 Head Cassette Deck in excellent Condition
      Location: Leichhardt
      Price: $800.
      Item Condition: Pre owned
      Reason for selling: Clearance
      Payment Method: Pickup - Cash, Credit card on pick up, Direct deposit
      Extra Info: Can freight at extra cost


      Akai 3-head, single compact cassette deck
      Track System: 4-track, 2-channel stereo
      Tape Speed: 4.76 cm/s
      Heads: 1 x combination record/playback, 1 x erase
      Motor: 2 x reel, 1 x capstan
      Tape Type: type I, CrO2, FeCr
      Noise Reduction: B
      Frequency Response: 30Hz to 19kHz  (FeCr tape)
      Signal to Noise Ratio: 62dB  (dolby
      Wow and Flutter: 0.06%
      Total Harmonic Distortion: 1%
      Input: 70mV (line), 0.3mV (mic)
      Output: 0.775V (line)

      Photos: Advertisements without photos of the actual item will not be approved.





    • By simbot82
      Item: Nakamichi Dragon Tape Deck
      Location: Perth
      Price: $2200
      Item Condition: Professional Service
      Reason for selling:
      Payment Method: Pickup - Cash, Paypal, COD Only
      Extra Info:

      The Nakamichi Dragon is a legend amongst HIFI fans alike. You don't even need to be a Cassette junky to appreciate something like this.

      I won't bore you with the usual stats etc you know it all.

      Please see the pictures, ask your questions and buy with confidence. Unit has been serviced has follows:
      Remove jammed pinch roller assy’s, clean away old grease, lube and reassemble. Clean back tension felt and reel table surfaces. Check back tension reading. Within spec. Clean and demagnetize tape path Check and clean reel drive bush and idler. Replace stretched mode belt. Check azimuth belt and confirm fine Check EOT belt and confirm fine Lube capstan shaft bearings Clean cassette well Clean cassette door. Detail front panel/switches/back panel and mains lead/plug Following the service record and playback were tested on 3 typical tape types. Adjustments were made to the front panel 400Hz and bias by ear.
      Don't pass up the opportunity to buy this magnificent beast of a machine

    • By rocker4ever
      Teac X-3 Needs a belt. Got all the screws off the front panel and the parts that come off. Even took the back off.
      The front panel is loose on top/bottom  and both sides. Can get about 1/2 inch if pull lightly BUT seems like something in the middle by the heads is stopping it.
      A close look shows that it should lift right up from there. No need to take off the heads assembly. Tried looking for some screws from the back with no luck.
      Got a schematic and looked ... either I'm blind or somethings wrong. Can anyone tell me the exact procedure to get this panel off so I can put new belts on and see if anything else if needed. I would really appreciate it. Thanks guys.


×
×
  • Create New...
