FS: Infinity Primus PS-8 Subwoofer. Mel


Recommended Posts

Item:  Infinity Primus PS-8 Subwoofer
Location: 3183
Price: 180
Item Condition:
good working order
Reason for selling: upgraded to bigger one
Payment Method: Pickup - Cash, Paypal, COD Only
Extra Info:

Great sound and, besides a small dent in the speaker cone, great condition.





Infinity PS-8 Subwoofer



Features and Specs

Enclosure  Bass Reflex

Video Shielded   No

Woofer Size (inches)   8

Woofer Composition   M.M.D.

Firing Direction   Front

Wireless    No

Preamp-Level Inputs   3

Speaker-Level Inputs  Yes

Speaker-Level Outputs        No

Low-Pass Crossover Freq   50-150 Hz

High-Pass Crossover Freq  None

Phase Switch     Yes

Amplifier Output (watts)        100

Frequency Response 35-150 Hz



DIMENSIONS & WEIGHT



Width 10.6 in

Depth 16.8 in

Height 17.5 in

Weight 33.07 lbs







Features



Metal Matrix Diaphragm (M.M.D.): Derived from the C.M.M.D. material used in Infinity's flagship Prelude drivers, M.M.D. features a stiff aluminum core that provides exceptional strength and rigidity for clean, realistic low-frequency tones.



Amplifier: The 8" M.M.D. front-firing cone woofer is powered by a 100-watt (RMS) amplifier.



Surround: For a smoother response and improved durability, the woofer uses a rubber surround.



Bass Ports: There are two rear-firing bass ports that allow deep bass with high acoustic efficiency and low distortion.



Gain Control: The subwoofer has a rotary control on the rear panel for adjusting the level of the bass.



Phase Switch: The subwoofer's phase switch allows you to control the phase of the subwoofer's output relative to the front speakers. If the bass sounds muddy or unclear, toggling the phase control can sometimes strengthen the bass "attack."



Auto On/Off Circuit: The auto on/off circuit turns the power amp on when a signal is sensed and turns the amplifier off and into standby mode approximately 10 minutes after a signal is no longer received. An LED indicator on the rear panel glows green when the amplifier is on and red when the amp is in standby.



Low-Pass Crossover: The subwoofer features a continuously variable 50Hz-150Hz low-pass crossover that determines the highest frequency at which the subwoofer reproduces sounds. The crossover has a 24dB/octave slope.



Inputs and Outputs Notes



Line-level Inputs: The subwoofer has a gold-plated LFE input and gold-plated stereo RCA inputs. If you have a Dolby Digital/DTS receiver or processor with a low-frequency-effects (LFE) output, you should use the LFE input on the subwoofer. If your receiver/processor does not contain a Dolby Digital or DTS processor but has a subwoofer output, you must use the stereo RCA inputs. If the receiver/processor has a mono subwoofer output, a "Y" adapter is recommended to maximize performance.



Speaker-level Inputs: The left and right gold-plated 5-way binding posts allow you to connect the subwoofer to a receiver/amplifier using speaker wire.


Photos: Advertisements without photos of the actual item will not be approved.

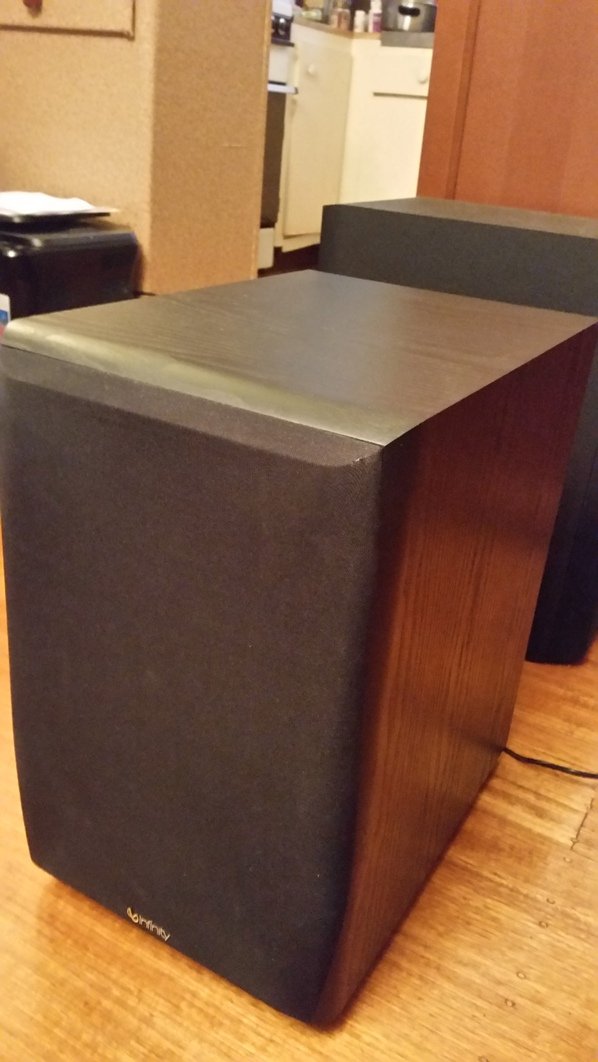

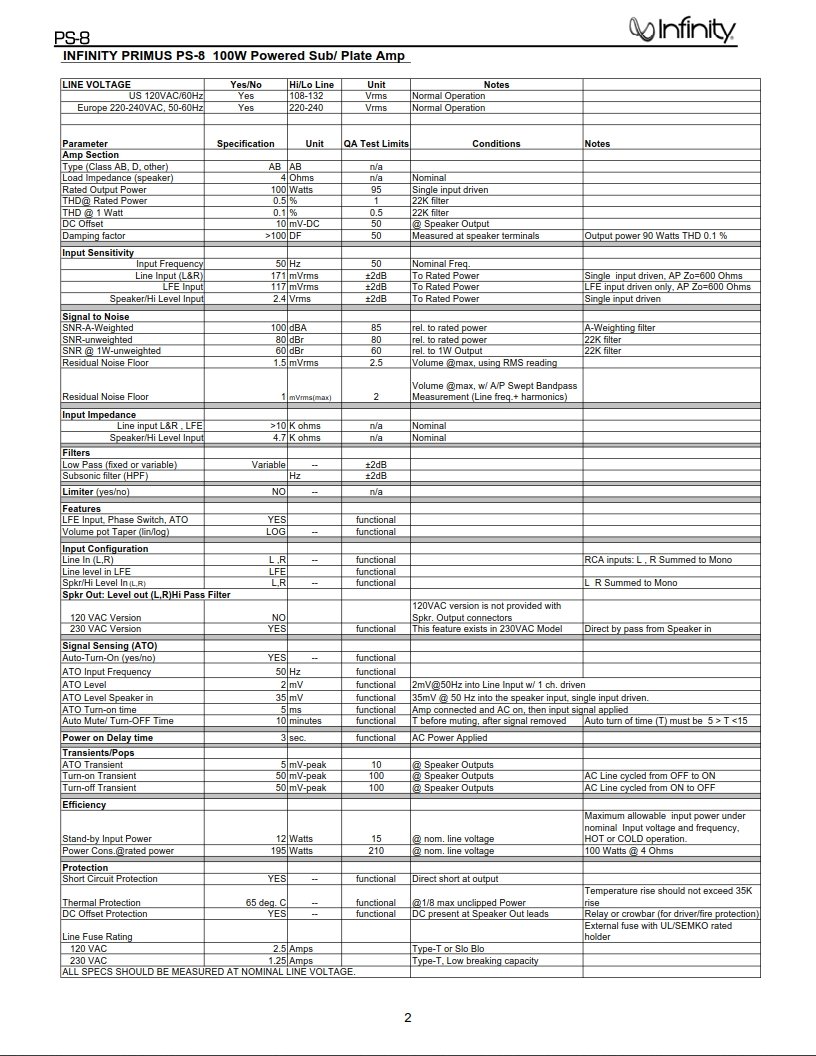

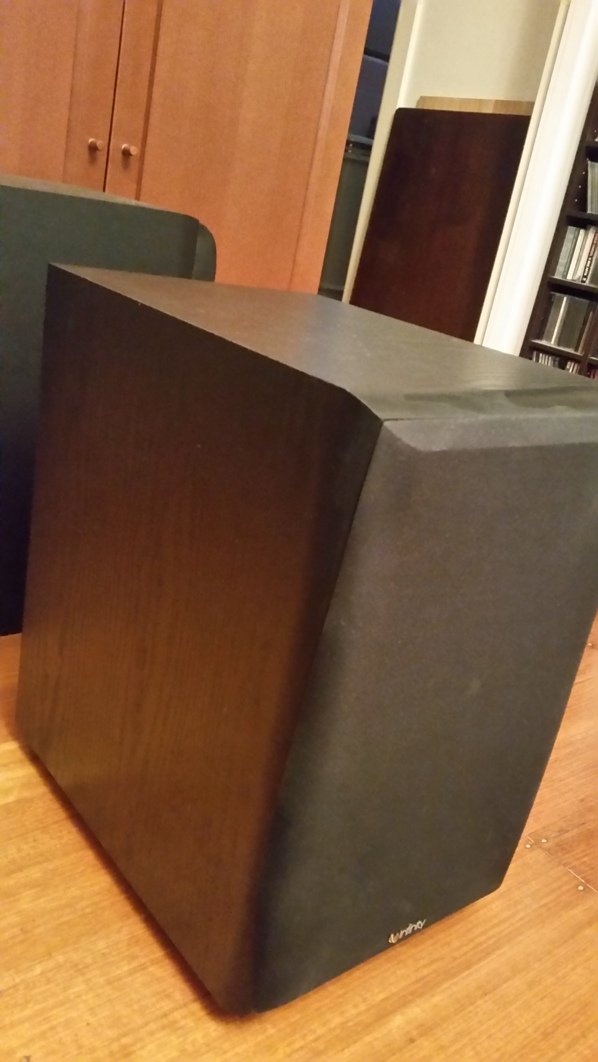

Image 001.jpg

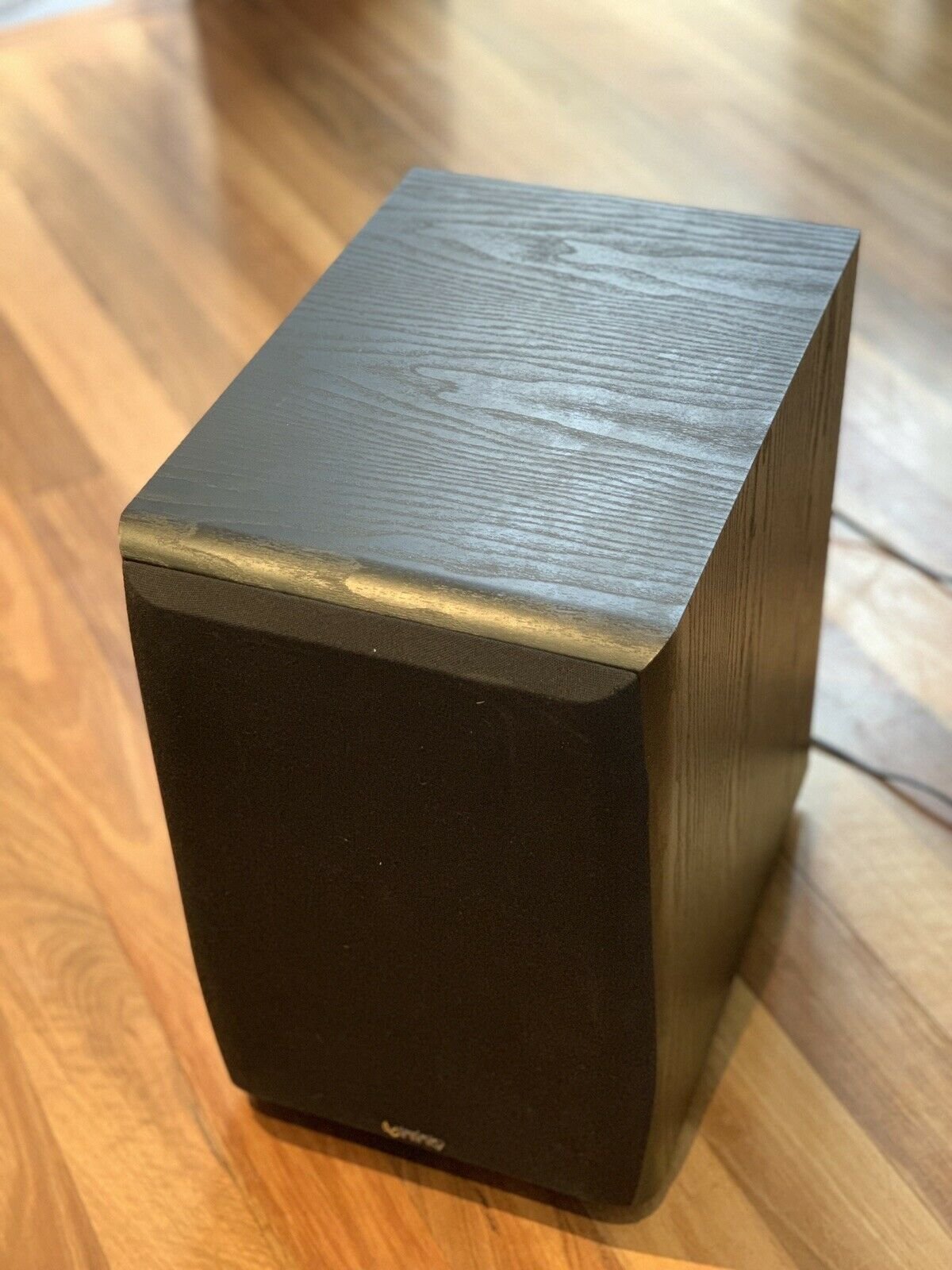

s-l1600 (3).jpg

s-l1600 (4).jpg

s-l1600 (5).jpg

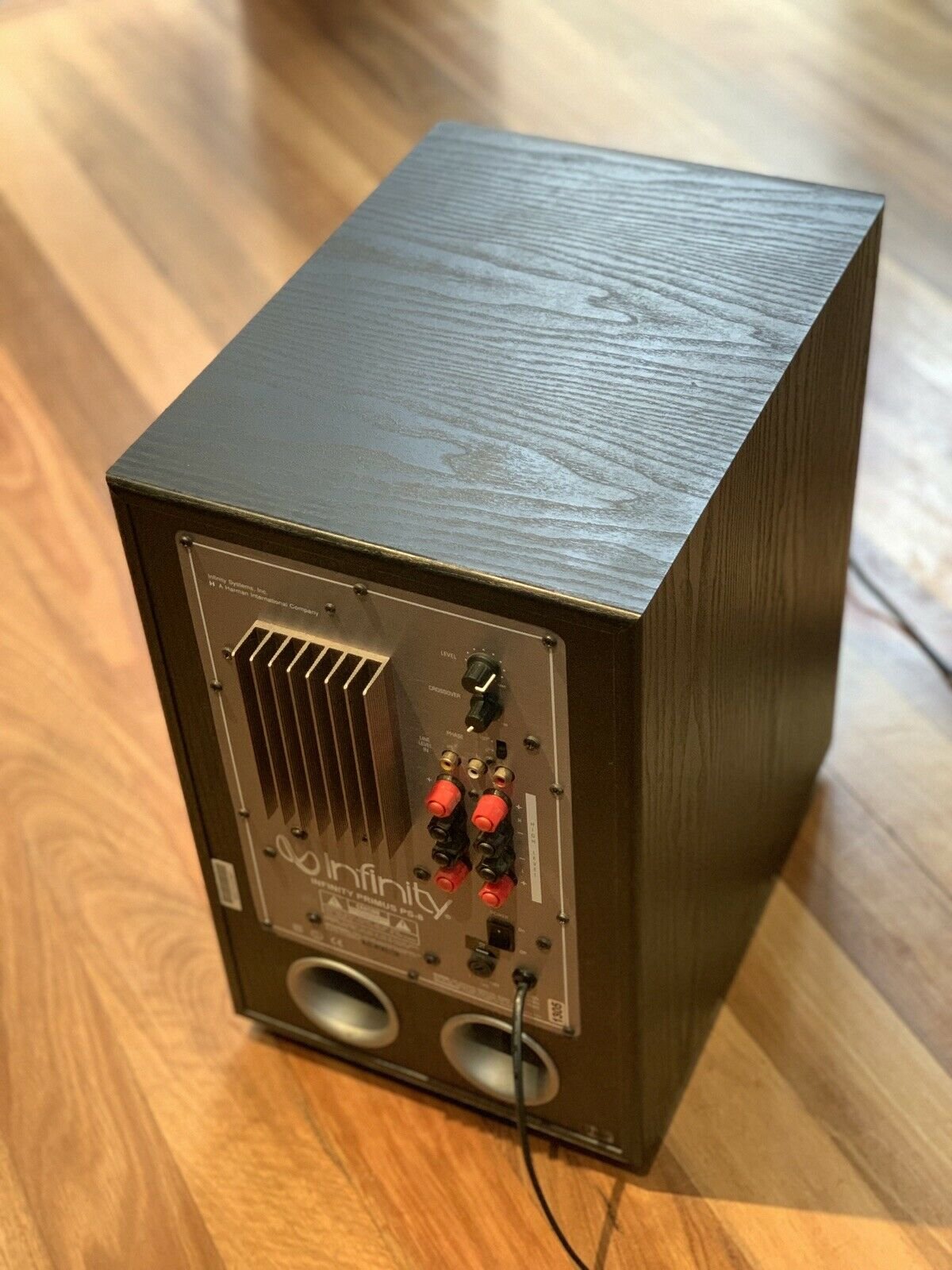

s-l1600 (6).jpg

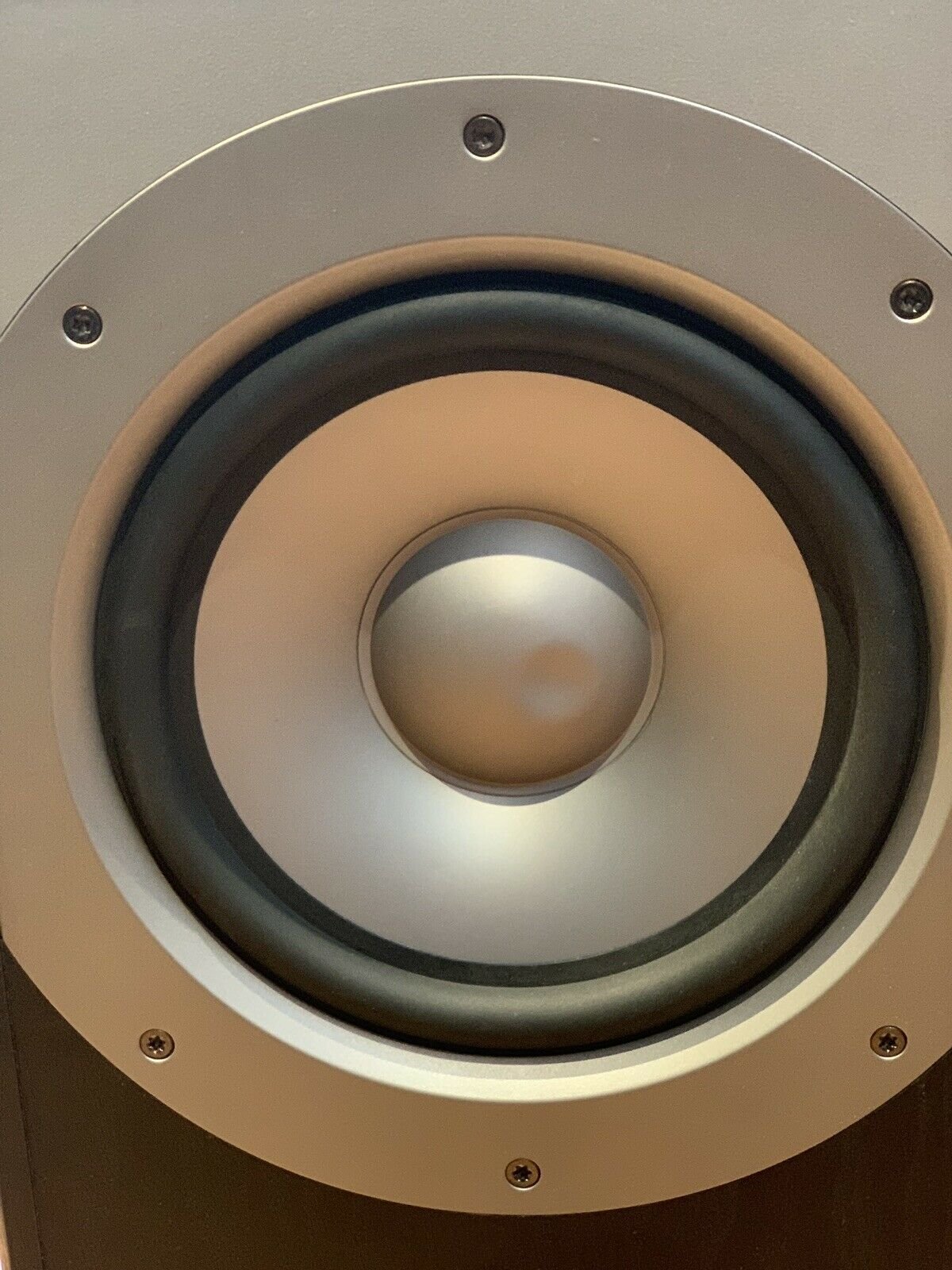

s-l1600 (7).jpg
