FS: AMC XAi 2-Zone 4-Channel Multi Room Audio Power Amplifier $550 (RRP $999) Brand New


Recommended Posts

Item:  AMC XAi 2-Zone 4-Channel Multi Room Audio Power Amplifier
Location: Hallam, Melbourne - Pick Up Only (Pick up can be arranged from either Hallam or Thornbury retail stores)
Price: $550 (RRP $999)
Item Condition: Brand New
Reason for selling:
Clearance
Payment Method: Pickup - Cash/Card, Paypal

Quantity: 2
Extra Info:

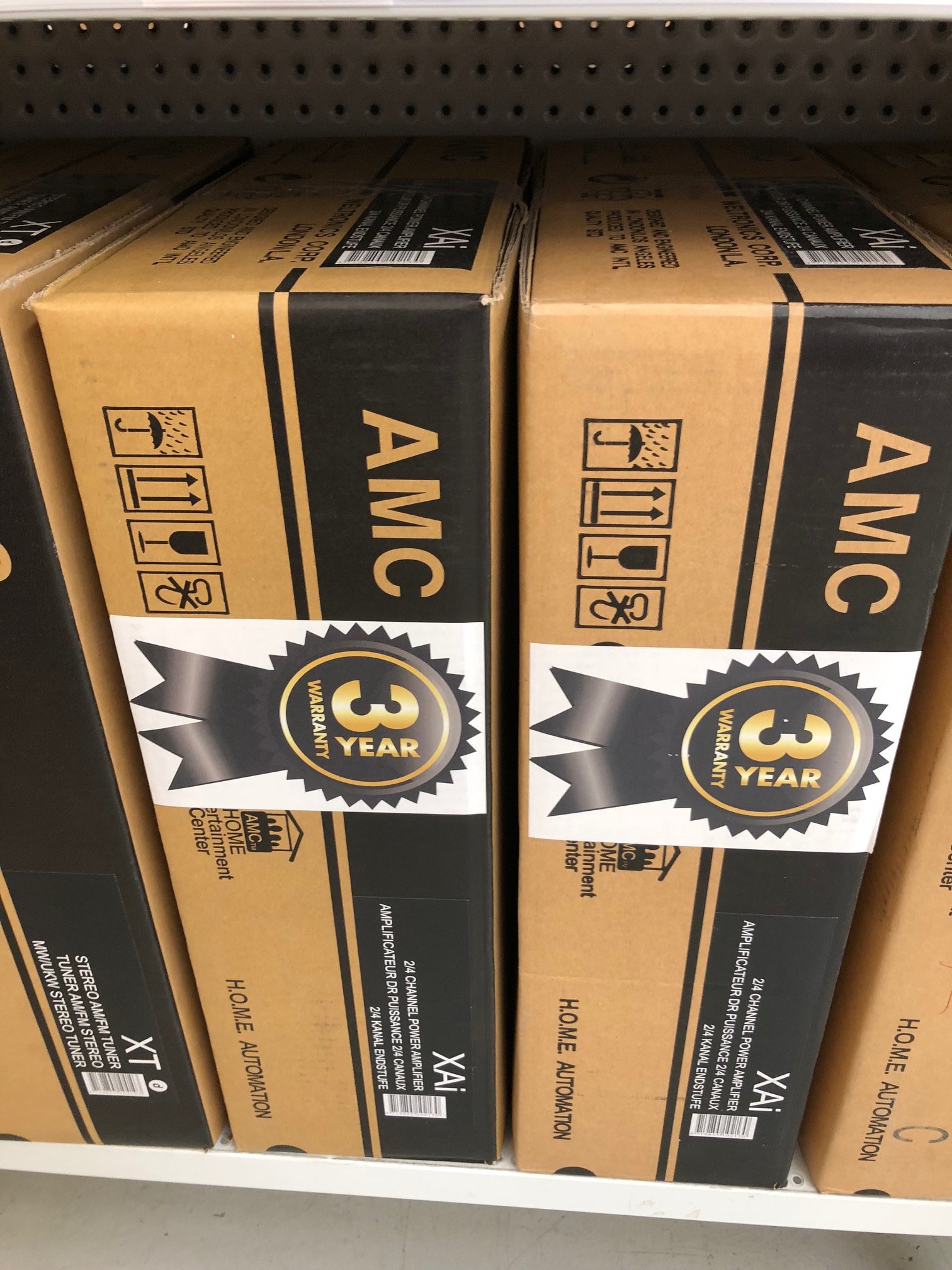

Currently located at the Hallam retail store. (Pick up can be arranged from either Hallam or Thornbury retail stores)

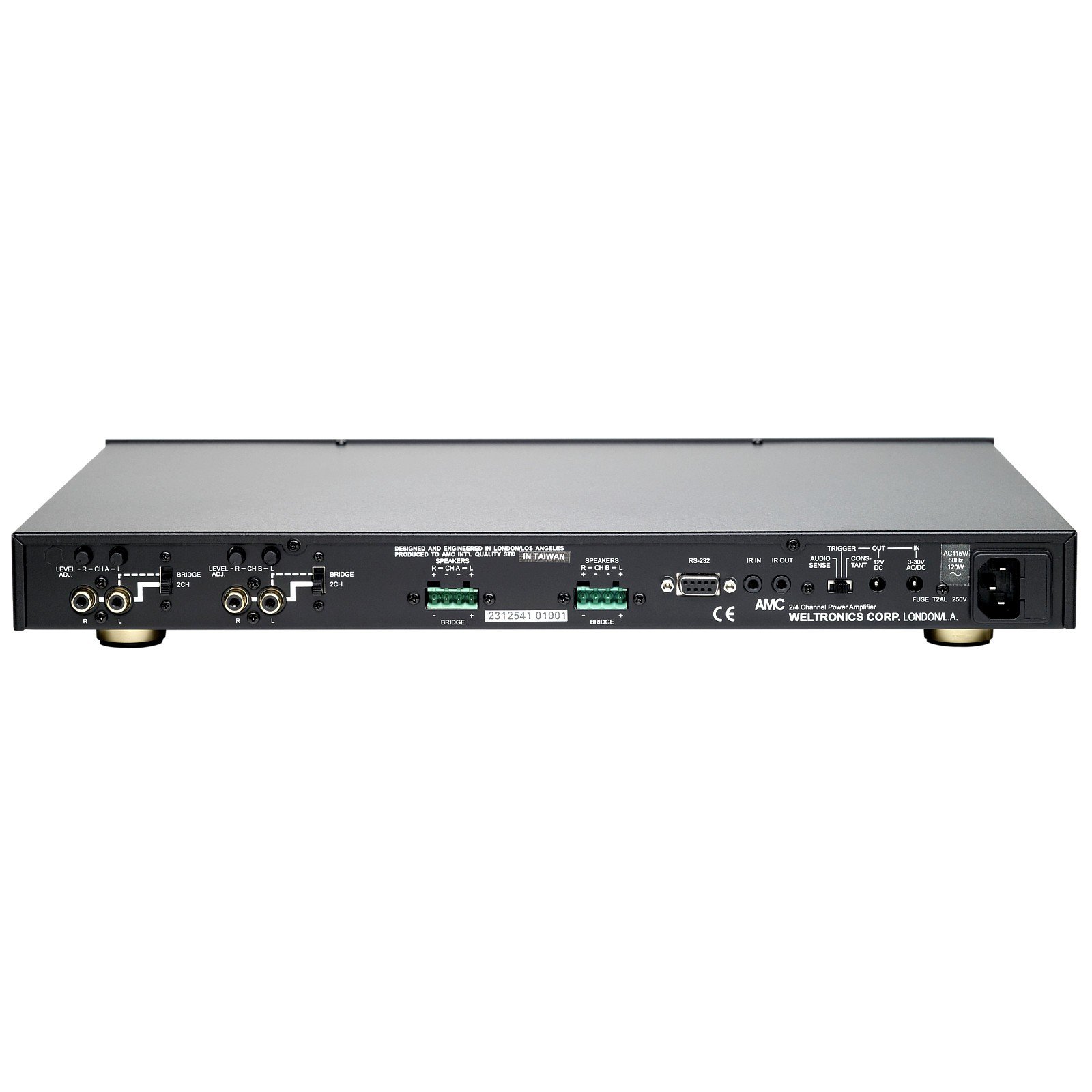

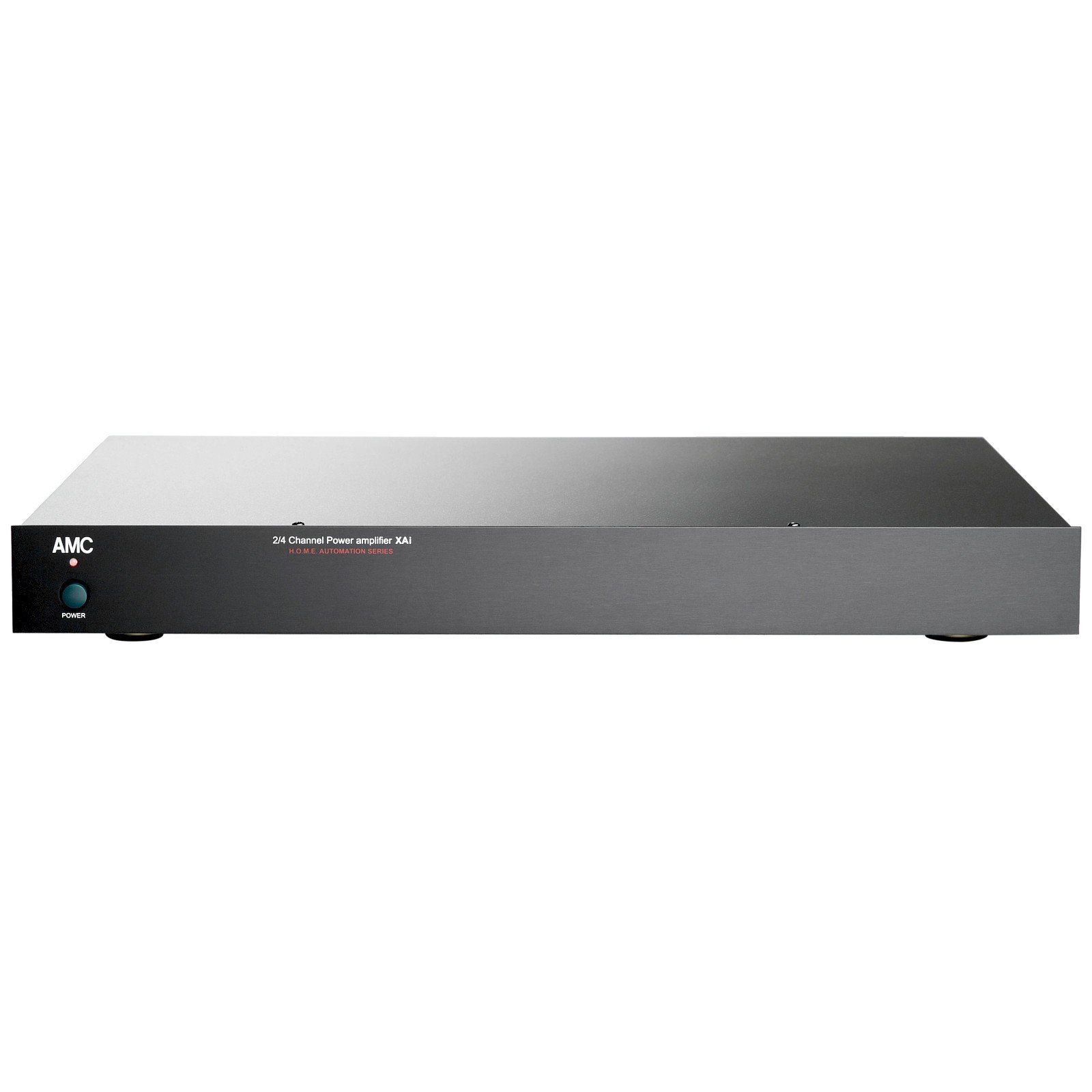

Key Features
- 45W x 4 or 90W x 2 Channel Distrution Amplifiers
- High Efficiency Power Amplifiers for very low heat decipation in XA
- Input sensitivity adjustment for each input
- IR input as interface from outside to XA internal microprocessor
- IR output for cascade IR signal path
- RS232 interface in order to link XA to Ethernet System through USB or Ethernet Adaptor
- Auto turning on / off feature control by Audio signals or 3~30V AC/DC Voltage
- 12 V DV Trigger Output

About AMC
Since 1970 AMC has forged a reputation for being a powerful and reliable electronics manufacturer in the Hi-Fi and Music Streaming Business. AMC is responsible for some of the worlds most famous brands and high end esoteric electronics. Their main focus is to build reliable and powerful amplifiers with a life expectancy of 25 years.

Toroidial Transformers and High Current Amplifiers with Metal Oxide Components are at the heart and core or every AMC component. If it's power on demand and clarity you desire or long for that movie soundtrack to blow you away then look no further for value and performance - AMC is really your only choice.



Specifications

4 CHANNEL MODE
Power Output per Channel into 4 ohms: 45W
1KHz Clipping Power into 4 ohms: 50W
Input Sensitivity for 1W: 130mV
Input Impedance: R=10K ohms, C=200pf
Frequency Response: 20Hz~20KHz+-0.5dB
A weighted S/N Ratio(Ref. 1W/8 ohm): 100 dB

2 CHANNEL MODE
Power Output per Channel into 8 ohms: 90W
1KHz Clipping Power into 8 ohms: 100W
Input Sensitivity for 1W: 91mV

Physical
Dimensions (W x H x D): 430 x 44 (1U)x 300mm
Net Weight (approx): 3.85Kgs
Power Consumption: 15 W
AC voltage: 100V or 120V or 230V, 50/60 Hz


Feel free to ask for more information.
Pictures:








Edited by Selby Thornbury
